6. STEERING SYSTEM
- 99 -

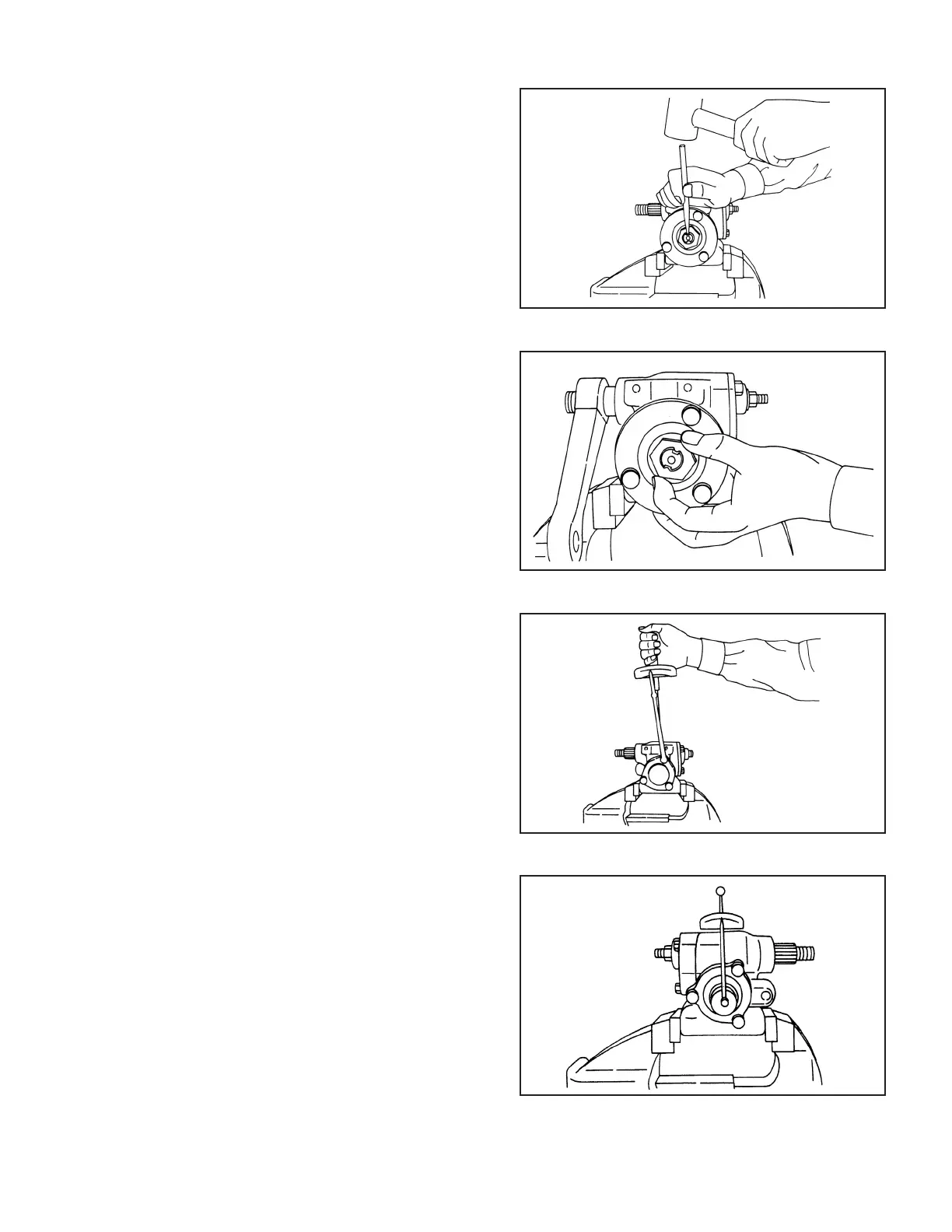

Fig. 6.47
Fig. 6.48
Fig. 6.49
Fig. 6.50
⑬
Leave your hand from the worm shaft. Caulk
the nut at two positions by the caulking jig (See
Fig. 6.61).
⑭
Make sure that the nut does not show looseness
when the worm shaft is turned clockwise. If
still loose, caulk the nut again.
⑮
Install the O-ring in the O-ring groove. Then
install the front cover.
Tightening torque: 34.3 to 53 N-m
{3.5 to 5.4 kgf-m}
[25.3 to 39.1 lbf-ft]
⑯
Make sure that the total number of turns of the
worm shaft is 4.6 or more. If not so, go back to
step ⑤ .
To Next Page
