6. STEERING SYSTEM
- 102 -
Fig. 6.59
Fig. 6.60
⑩
Install the potentiometer cover. When installing,
x the wire harness with a clip.
⑪ Hold the pitman arm by a vise, fix it with the
nut.
Tightening torque: 176.5 to 215.8 N-m
{18 to 22 kgf-m}
[130 to 159 lbf-ft]
Set plate

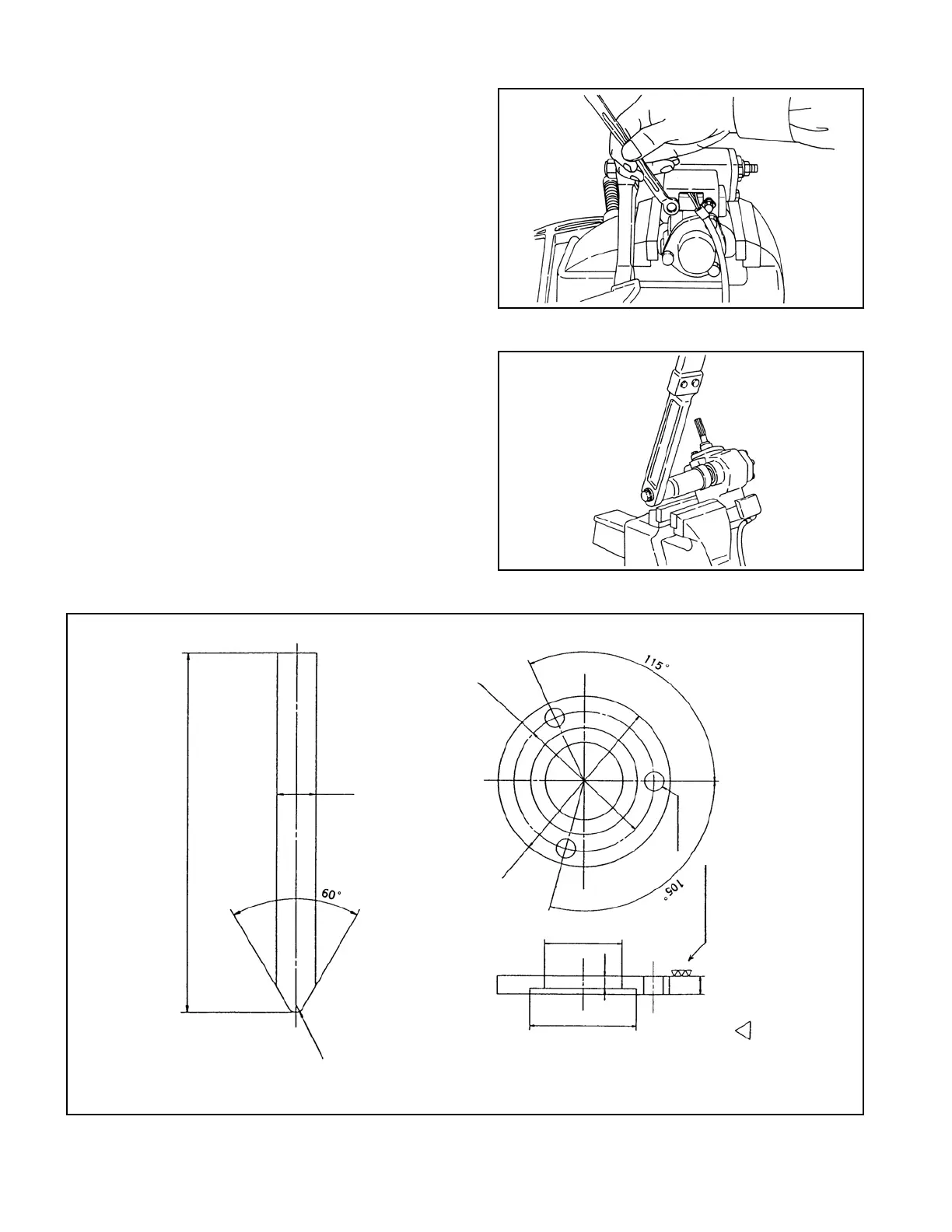

Fig. 6.61 Dimensions of Jigs
Unit: mm [in.]
Caulking tool
Hemisphere
of R3
Set plate
mounting
side
15
[0.591]
(140 [5.512])
93
[3.661]
PCD 75
3 - 10.5
[0.118 - 0.413]
42 [1.614]
7
[0.276]
10
[0.394]
(58 [1.969])
