4. DRIVE UNIT AND DRIVE AXLE
- 60 -

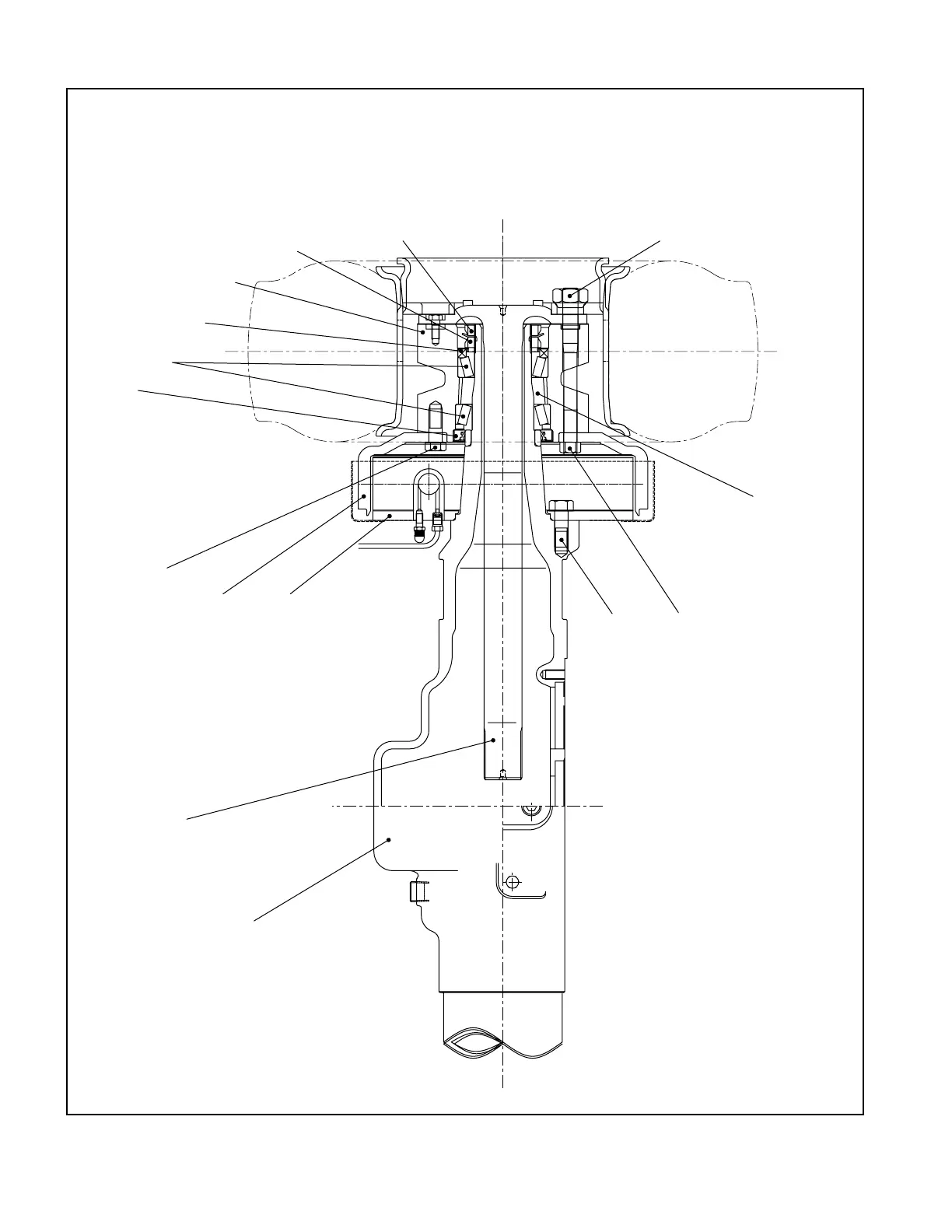

Fig. 4.5 Drive Axle (2- to 2.5-ton Trucks)
AXLE HOUSING
AXLE SHAFT
Tightening torque 140 to 160 N-m
{1430 to 1630 kgf-cm}
[1240 to 1420 lbf-in.]
(Apply LOCTITE#270)
BRAKE DRUM
WHEEL BRAKE
OIL SEAL
TAPERED ROLLER BEARING
OIL SEAL
HUB
ADJUSTMENT NUT
LOCK NUT
Tightening torque:
206 to 225 N-m
{2100 to 2290 kgf-cm}
[1820 to 1990 lbf-in.]
(Apply LOCTITE#270)
Tightening torque: 140 to 160 N-m
{1430 to 1630 kgf-cm}
[1240 to 1420 lbf-in.]
(Apply LOCTITE#270)
Tightening torque: 227 to 272 N-m
{2310 to 2770 kgf-cm}
[2010 to 2410 lbf-in.]
Fill 50% of the space with grease
(30 cc at one side)
To Next Page
