4. DRIVE UNIT AND DRIVE AXLE
- 61 -

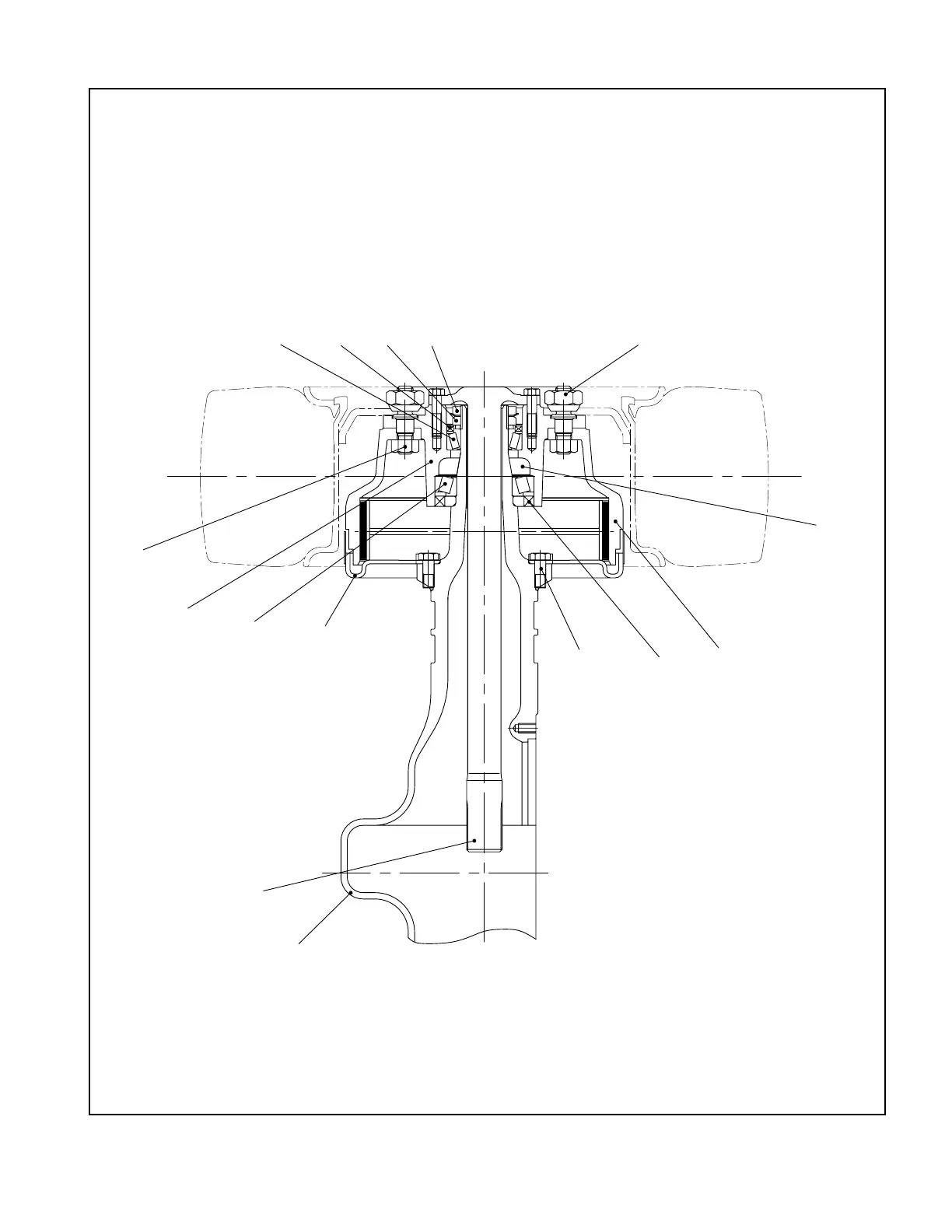

Fig. 4.6 Drive Axle (3.0- to 3.5-ton Trucks)
AXLE HOUSING
AXLE SHAFT
Tightening torque 471 to 549 N-m {4800 to 5600 kgf-cm} [4170 to 4860 lbf-in.]
BRAKE DRUM
WHEEL BRAKE
OIL SEAL
TAPERED ROLLER BEARING
OIL SEAL
HUB
ADJUSTMENT NUT
LOCK NUT
Tightening torque: 471 to 549 N-m {4800 to 5600 kgf-cm} [4170 to 4860 lbf-in.]
Fill 50% of the space with grease (100 cc at one side)
TAPERED ROLLER BEARING
Tightening torque: 206 to 225 N-m {2100 to 2300 kgf-cm} [1820 to 1990 lbf-in.]
