Procedure for installing the wheel hub
(1) Put the specified amount of grease into the
space
A
of the wheel hub and install it onto the
spindle.
(2) Tighten the adjustment nut to approx. 98 N-m {1
kgf-m} [7.23 lbf-ft] torque and loosen it by 1/2
turn.
(3) Set the spring balancer to the stud bolt. Adjust
the starting torque of the hub while tightening
the adjustment nut gradually.
Starting torque: 4.9 to 6.9 N-m
{50 to 70 kgf-cm}
[43.4 to 61.1 lbf-in.]
(4) Install the lock washers and the lock nuts, and
secure the lock nuts with the claws of the lock
washers.
LOCK NUT

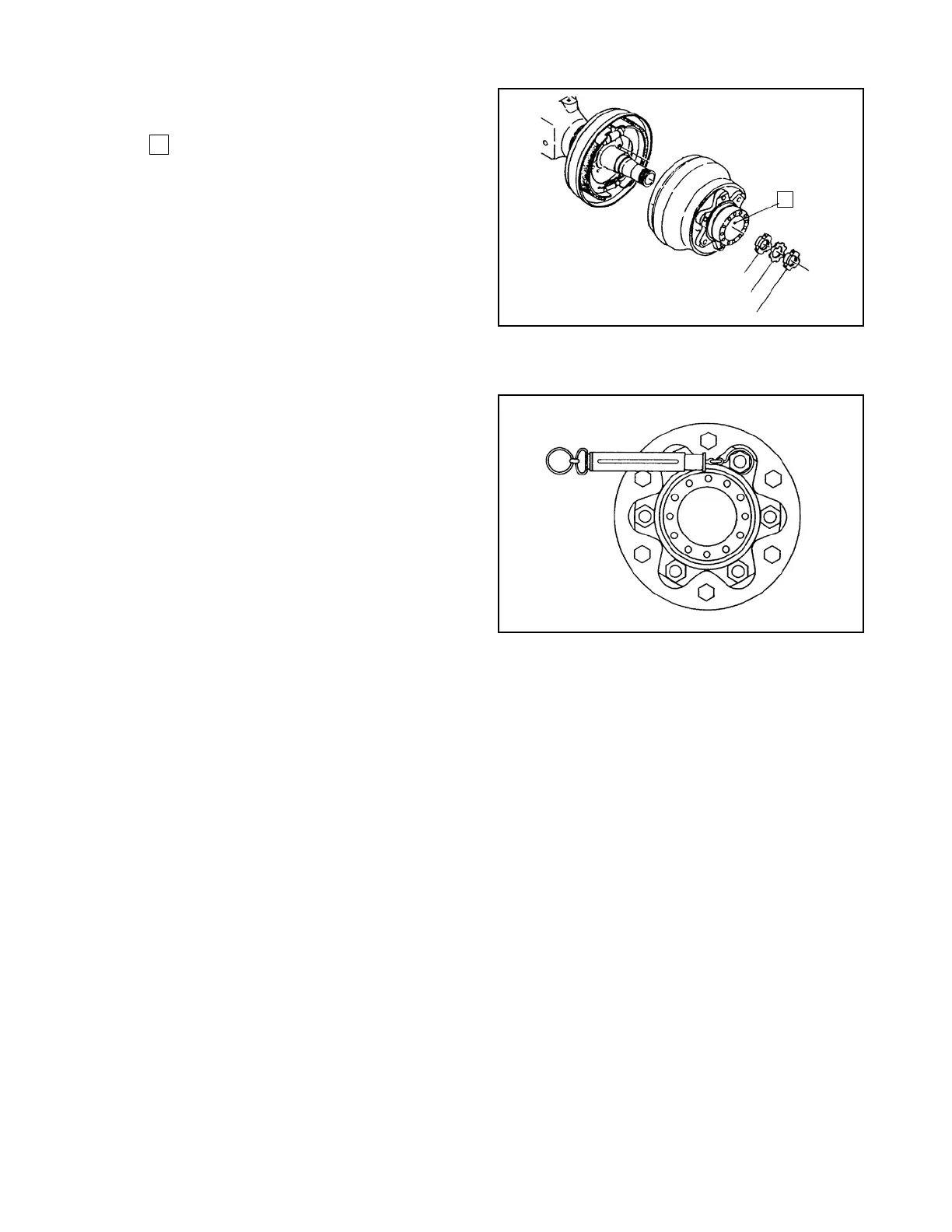

Fig. 4.7 Filling Grease
Fig. 4.8 Measuring Starting Torque
ADJUSTMENT NUT
LOCK WASHER
A
