Chapter 5 - Electrical Connections
5.1. Accessing the electrical terminals
NOTA!
Observe the safety precautions given elsewhere in this manual. The terminal covers can be removed
without the use of force. Use only appropriate tools.

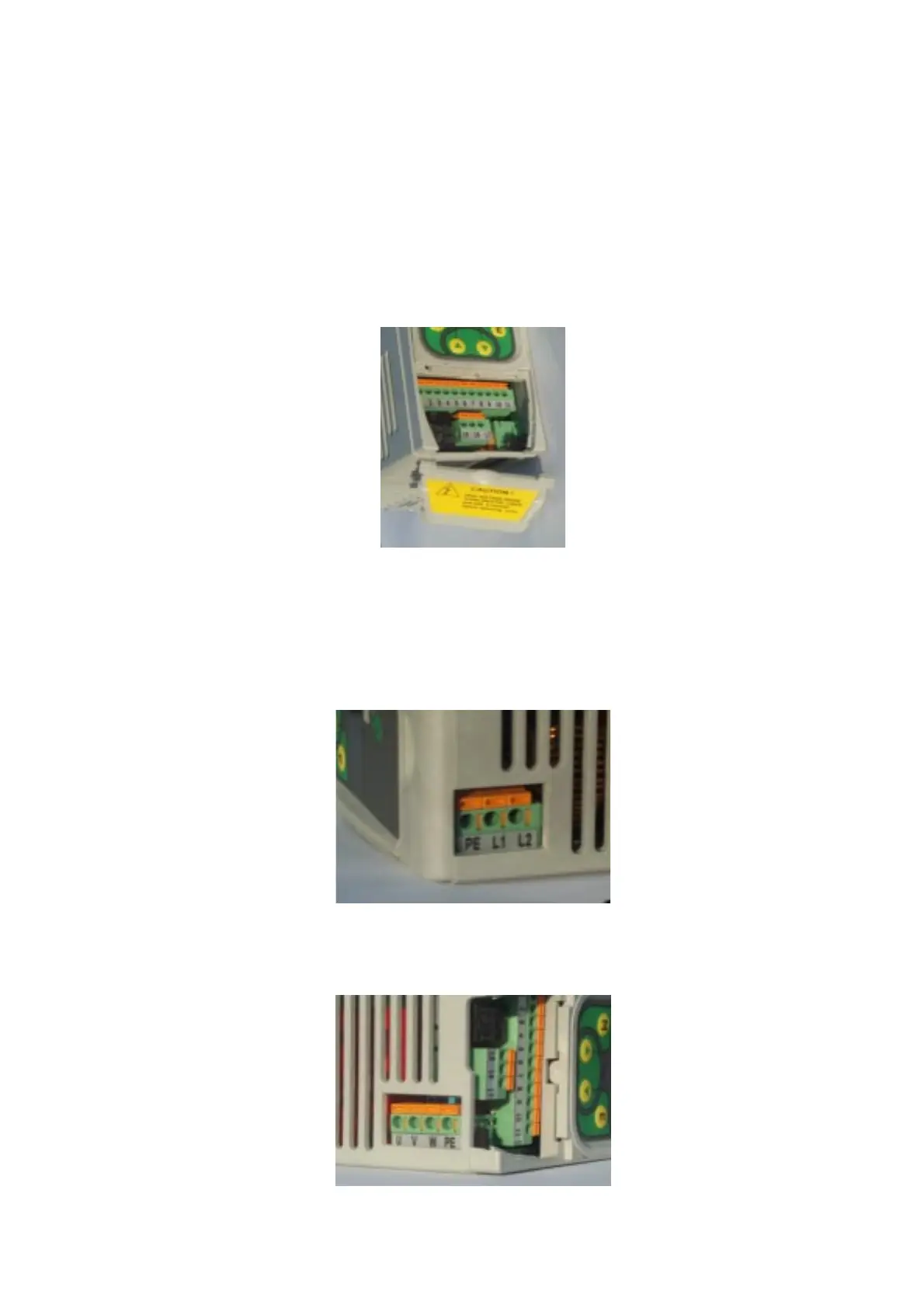

Figure 5.1.1: Accessing the control terminals
Remove the terminal cover to access the control card terminals. If all the terminals are going to be used, it may prove useful
to cut a corner off the cover to facilitate cable access.
Figure 5.1.2: Accessing the power terminals
Figure 5.1.3: Accessing the motor terminals
