TDE MACNO DVS200 - Menu S - START-UP

62  Chapter 7 - Parameters Description User Manual
7.3 Menu S - START-UP
NOTE!
The START UP menu is a set of parameters and functions that allow a quick start of the motor.These
parameters are duplicated in other menus of the drive, Therefore, their modification can be performed
in any of the menus where the parametes are present.
Power Supply
S.000 Mains voltage
Rated value of the main voltage [V].
The undervoltage trip function is based on this value (see chapter PARAMETER, section Undervoltage
configuration).
S.001 Mains frequency
Rated value of the line voltage frequency [Hz].
Code Name [Code] & Function Default MIN MAX Unit Variation IPA
S.000 Mains voltage 110 230 110 240 V 404
220
230
240
S.001 Mains frequency 50 (****) 50 60 Hz 405
60
(****) parameter value dependent on drive type.
V/F Ratio
S.100 Max out voltage (Maximun output voltage)
Maximum value of the voltage applied to the motor (normally set as the nameplate, see figure 7.3.2).
S.101 Base frequency
Rated frequency of the motor (given on the nameplate, see figure 7.3.2)
It means the working frequency of the drive, at which the Max out voltage is associated (S.100).
S.100
(S.101)
(S.201)
F
(n)
V
S.100
S.101
S.201
F
(n)
V

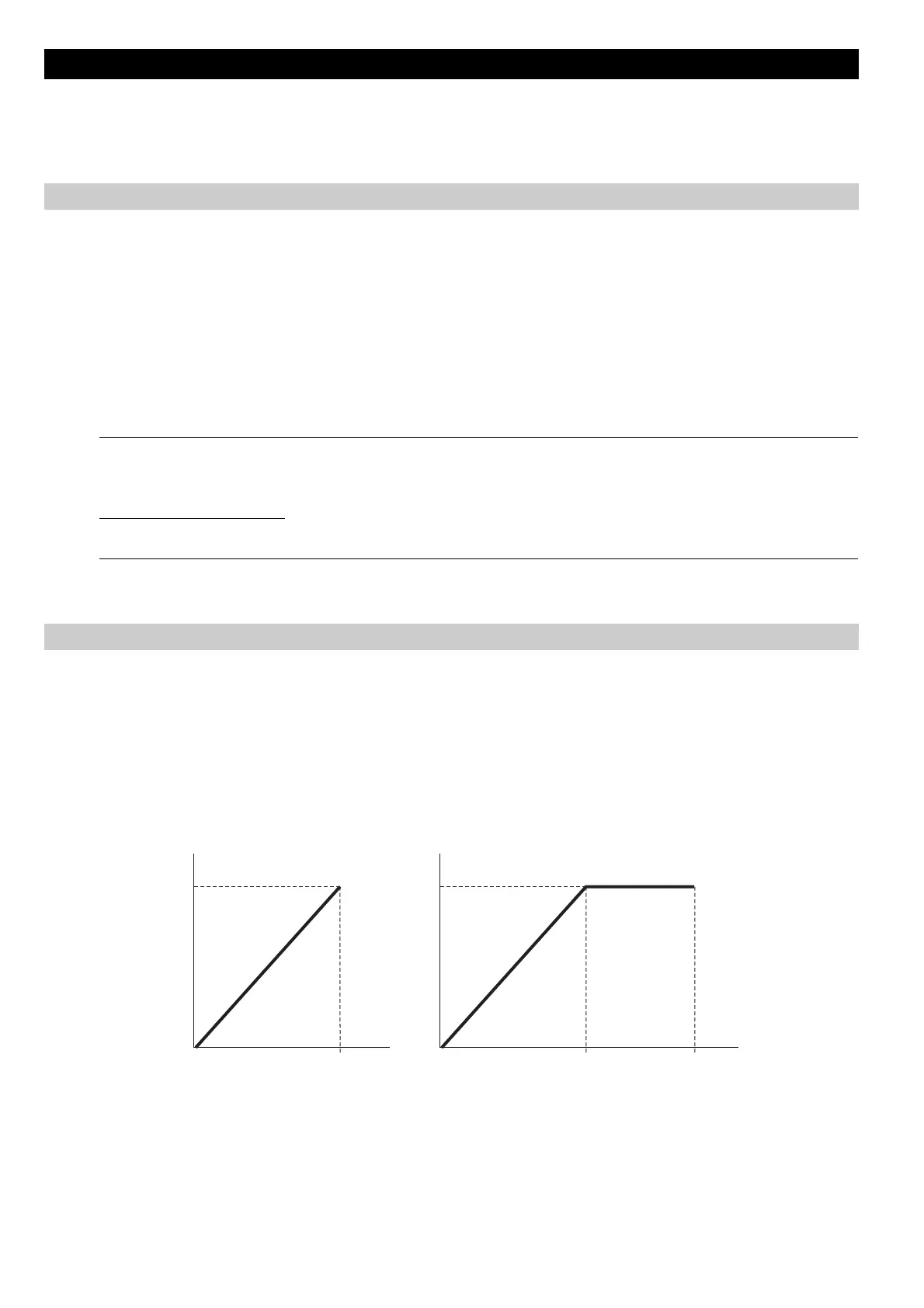

Figure 7.3.1: V/F Ratio
NOTE!
For further setting of the V/F ratio, see the chapter PARAMETER, section V/F Curve
