User Manual Chapter 5 - Electrical Connections 33
5.7.3. Noise filters
DVS drives are fitted with an EMI filter to limit radio frequency interference that could affect the mains.
Consult the Electro-Magnetic Compatibility Guide for further information on the subject of noise filters.
You can request a copy of the Electro-Magnetic Compatibility Guide from your nearest TDE office.
The Guide lists the power and control panel installation standards that must be followed to ensure EMC conformity according
to Directive 89/336/EEC. (These standards cover the installation, whenever necessary, of external filters and mains chokes,
cable shielding, ground connections, etc..)
The Guide also explains the background to EMC standards and lists the various conformity tests performed on TDE equipment.

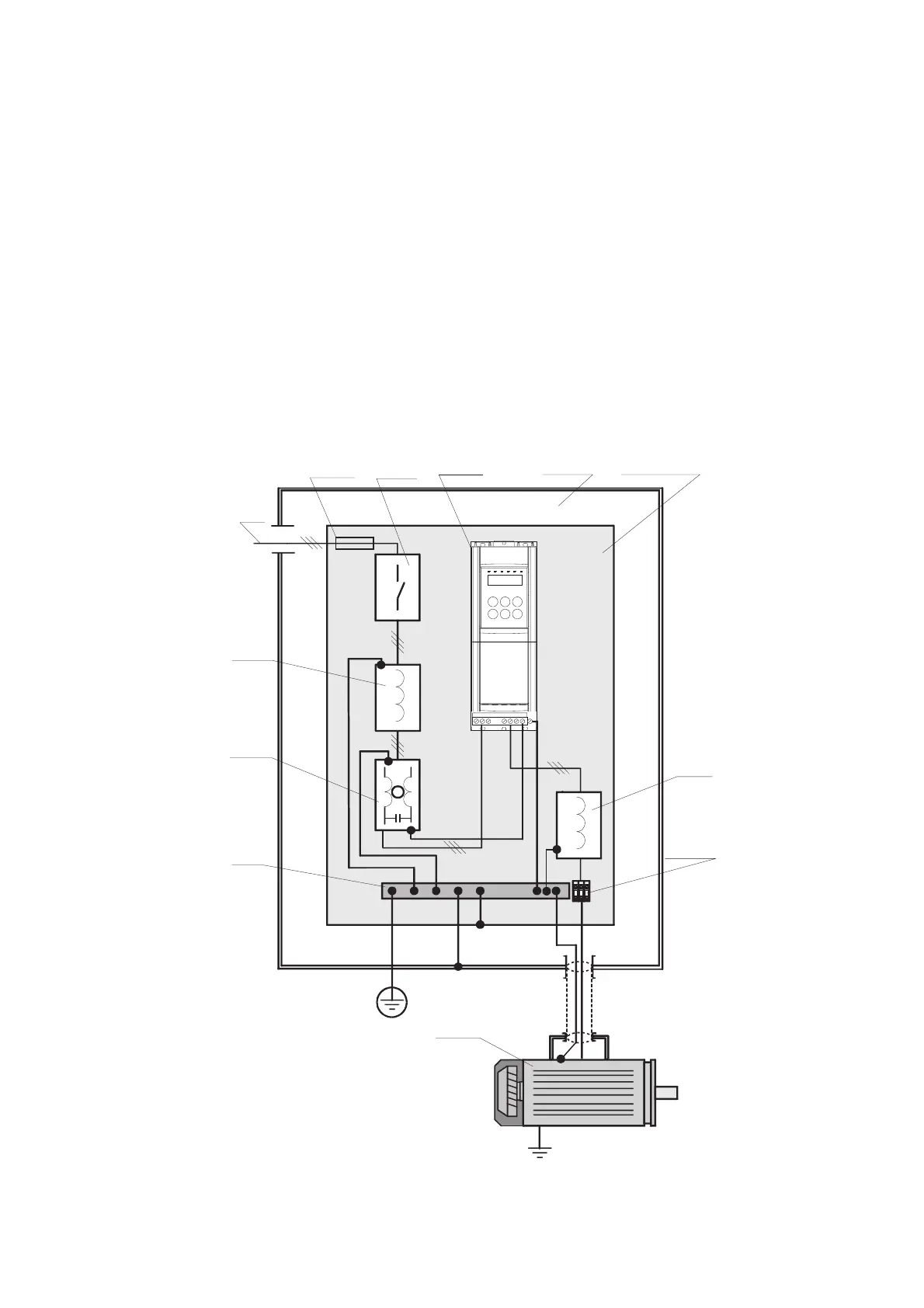

5.7.3.1 External EMI filter connections
AC
Power
Supply
Cabinet
Mounting panel
AC Drive
AC
Mains
choke
Ground
Bus
Motor
cable
terminals
AC Motor
EMI filter
U1 V1 W1
U2 V2 W2 PE2 PE1
AC Mains
Contactor
AC fuses
Output
reactor
