82 Chapter 7 - Parameters Description User Manual
Freq
Freq ref 0
Freq ref 1
Freq ref 2
Freq ref 3
Freq ref 4
Freq ref 4
Freq ref 6
Freq ref 7
t
Freq sel 1
Freq sel 2
Freq sel 3
FWD(RUN) or
REV
Selectable through
“MltFreq Channel 1” (F.060)
“MltFreq Channel 2“ (F.061)

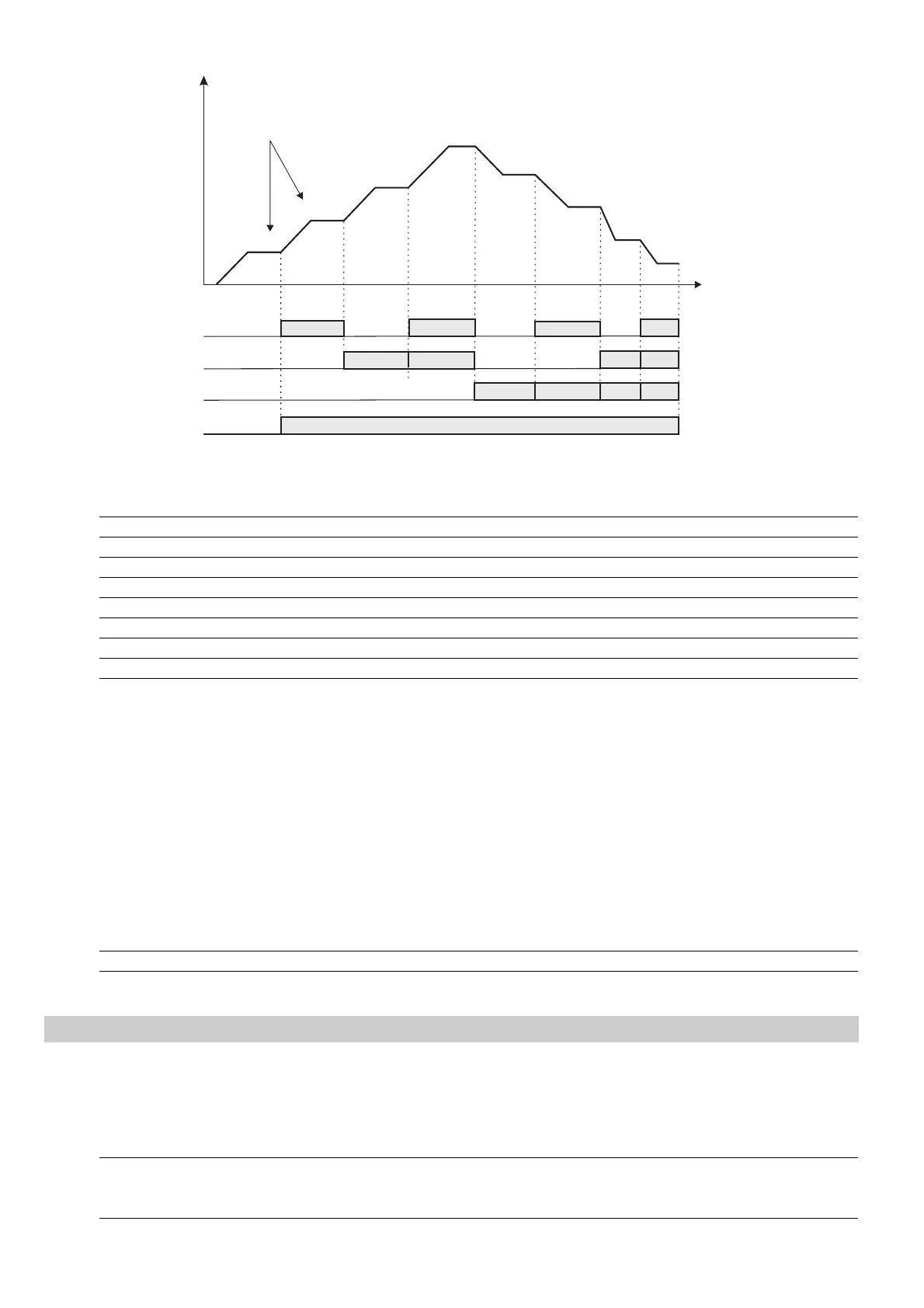

Figure 7.5.3: Multispeed Frequencies
Code Name [Code] & Function. Default MIN MAX Unit Variation IPA
F.100 Frequency ref 0 0 -F.020 F.020 Hz 0.1 311
F.101 Frequency ref 1 0 -F.020 F.020 Hz 0.1 312
F.102 Frequency ref 2 0 -F.020 F.020 Hz 0.1 313
F.103 Frequency ref 3 0 -F.020 F.020 Hz 0.1 314
F.104 Frequency ref 4 0 -F.020 F.020 Hz 0.1 315
F.105 Frequency ref 5 0 -F.020 F.020 Hz 0.1 316
F.106 Frequency ref 6 0 -F.020 F.020 Hz 0.1 317
F.107 Frequency ref 7 0 -F.020 F.020 Hz 0.1 318
F.116 Jog frequency
It is the frequency reference for the JOG speed.
This speed is activated through a programmed digital input.
The RUN command via terminal must not be given. This command will enable the main frequency reference.
The limit of the output frequency will be clamped by Max ref freq (F.020).
The setting of the JOG reference value, can be either positive or negative.
In both the setting the HW Reverse command is active (when enabled).
Code LCD display [Code] & LCD select. Default MIN MAX Unit Variation IPA
F.116 Jog frequency 1 -500 500 Hz 0.1 327
Ramp Configuration
F.200 Ramps resolution
It defines the range and the accuracy with which the ramps time will be set.
Code Name [Code] & Function. Default MIN MAX Unit Variation IPA
F.200 Ramp resolution [0] 0.01s (From 0.01s to 99.99s) 1 0 2 328
[1] 0.1s From (0.1s to 999.99s)
[2] 1s From (1s to 9999s)
