2.13 GENESYS
TM
GENH 750W POWER SUPPLIES

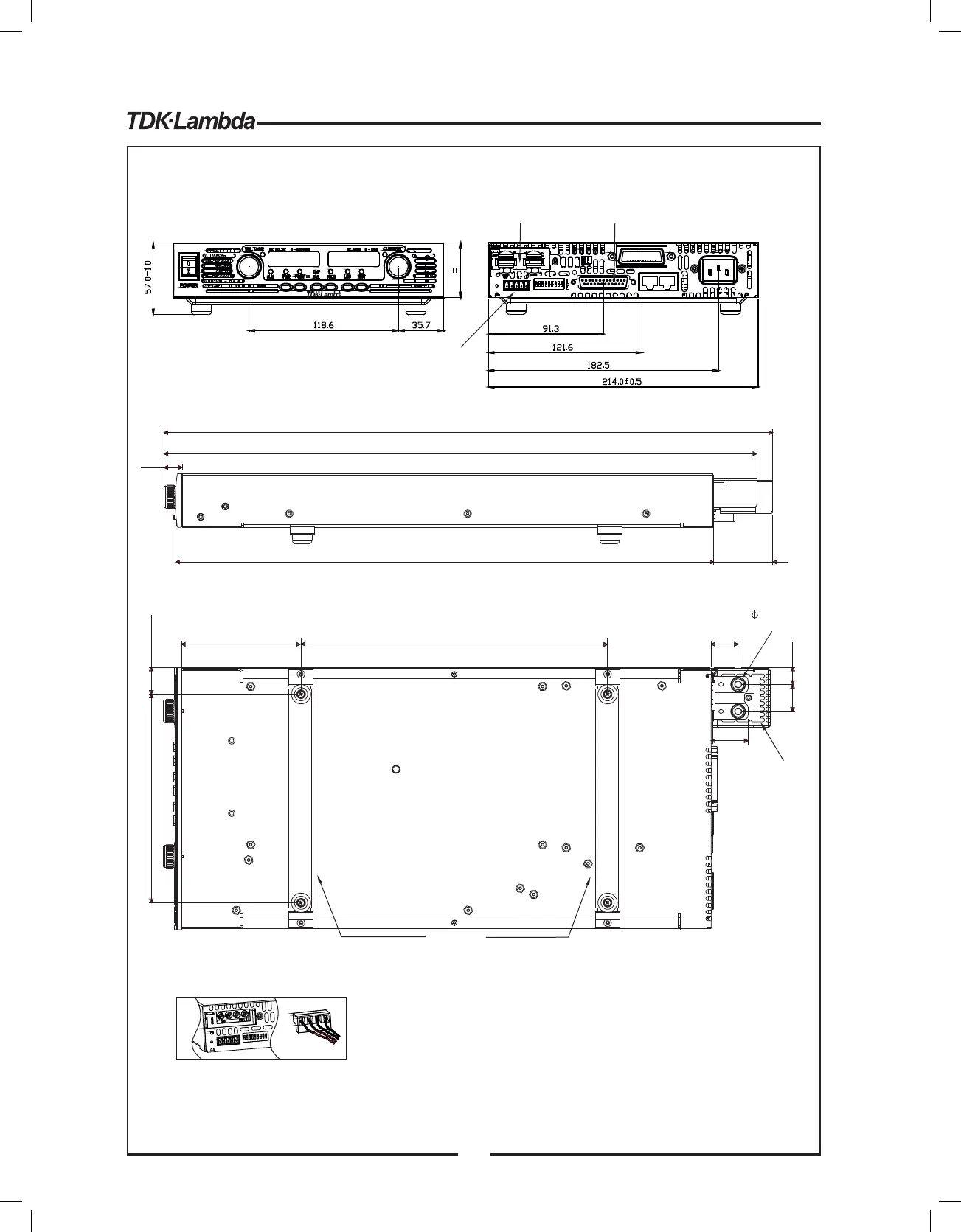

OUTLINE DRAWINGS
NOTES:
1. Bus-bars 6V to 60V models
Connector 80V to 600V model
Header Phoenix P/N: GIC 2.5/4-G-7.62
Mating plug Phoenix P/N: GIC 2.5/4-ST-7.62
2. Mating plug Phoenix P/N: MC1.5/5-ST-3.81
3. Mating plug AMP P/N: 745211-2
Mating plugs supplied with power supply.
4. Benchtop assembly x 2 (removable)
Screws: 4 x M3x8 marked “A”.
Supplied with the power supply.
5. Bus Bars enclosure for 60V to 600V.
NOTE 1
NOTE 1
NOTE 3
NOTE 2
A
A
A
A
NOTE 4
NOTE 5
GENH Models 80V to 600V.
43.6 0.3
6.5mm
M6x16
22.0
15.0
97.5
250.0
(48.0)
437.5 1.0±
482.0 1.0±
495.0 1.0±
22.0
14.0
22.0 TYP
170.0
30.0
12
