14
3.4RACK MOUNTING
To installaGENH750W one unitortwo units side-by-sideinastandard 19”Rackin1U(1.75”)
height,use option kit P/N: GENH/RM.
The Rack Mount kit allows theunits to be zero stacked for maximum system flexibility and
power density without increassingthe 1U height of the units.
To installaGENH750W power supplyinastandard 19”Rackin1U(1.75”) height,usingaGENH
Rack Mount kit P/N: GENH/RM.
3.4.1Single unitinstallation
3.4.2 Dual unitinstallation
To installtwo GENH750W power supplies side-by-sideinastandard 19”Rackin 1U(1.75”)
height,usingaGENH Rack Mount kit P/N: GENH/RM.
Fig.31 Single unitinstallation
Fig.3-2 Dual unitinstallation
15

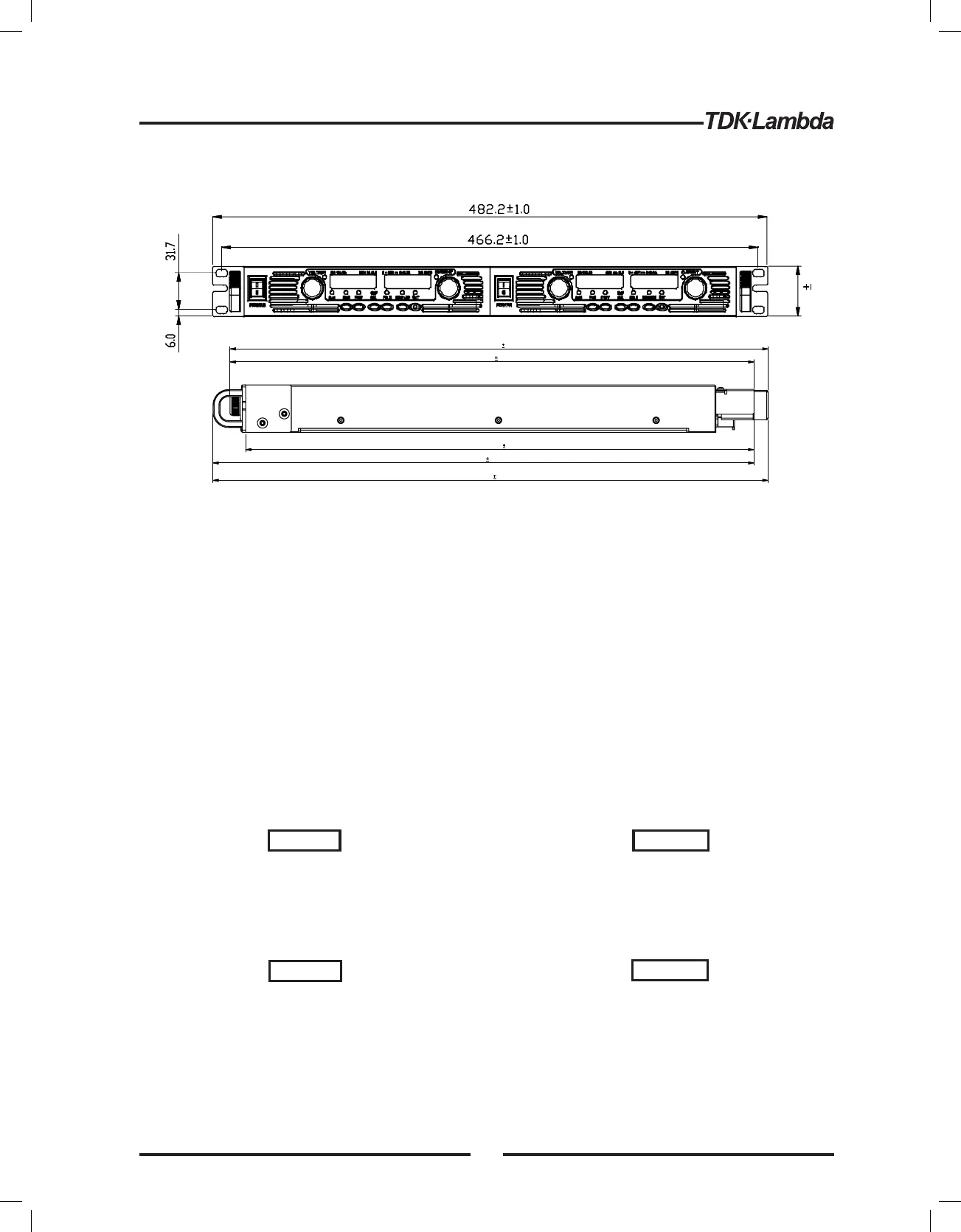

3.4.3 GENH/RM Rack Mounting outline drawings:
Fig.3-3 GENH/RM Rack Mounting outline
3.5 LOCATION, MOUNTING AND COOLING
This power supply is fan cooled. The air intake is at the front panel and the exhaust is at the rear
panel. Upon installation allow cooling air to reach the front panel ventilation inlets. Allow minimum
10cm (4 Inch) of unrestricted air space at the front and the rear of the unit.
The power supply should be used in an area that the ambient temperature does not exceed +50
o
C.
3.6 AC SOURCE REQUIREMENTS
The GenesysTM series can be operated from a nominal 100V to 240V, single phase, 47~63Hz. The
input voltage range and current required for each model is specified in Chapter 2. Ensure that under
heavy load, the AC voltage supplied to the power supply does not fall below the specifications
described in Chapter 2.
3.7 AC INPUT POWER CONNECTION
Connection of this power supply to an AC power
source should be made by an electrician or other
qualified personnel.
Der Anschluss dieses Ger tes an ein AC-ä
Versorgungsnetz sollte durch einen Elektriker oder
anderes entsprechend qualizier tes Personal erfolgen.
The power supply shall be connected to the AC source via protective device (circuit breaker,
fuses, ...etc.) rated 20A max.
Es besteht die Gefahr eines elektrischen Schlags, wenn
das Geh use des Netzteils (mitsamt Abdeckung) nichtä
über den PE-Leiter des Netzkabels mit einer Schutzerde
verbunden ist.
There is a potential shock hazard if the power supply
chassis (with cover in place) is not connected to an
electrical safety ground via the safety ground in the
AC input connector.
CAUTION
VORSICHT
WARNING
WARNUNG
43.6 0.3
497.5 1.0
510.5
1.0
482.0
1.0
495.0
1.0
467.5
1.0
