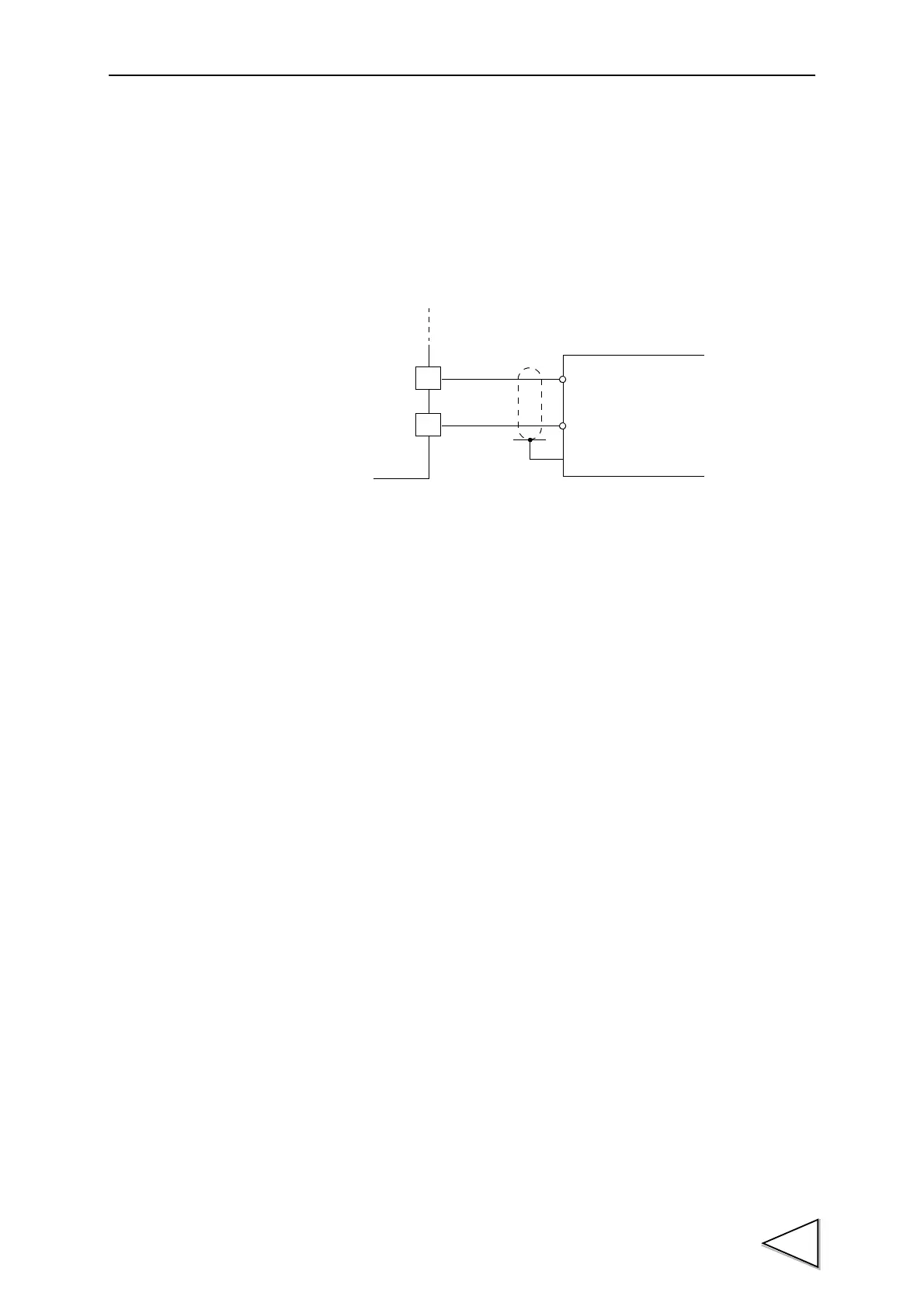

2-7. Connecting Voltage Output (VOL OUT)
Terminal for out put of a voltage proportional to the sensor input .
Output voltage is approx. 2V per 1mV/V(sensor input).
10
＋
－
External device
Load resistance
2kΩor above
SIG
GND
