Teac TD-240A - Communication Mode

9.RS-232C INTERFACE（TD-2404）
67
9-3. Communication Mode
1. Communication Mode 0
This mode performs communication by a command from the host computer.
In this mode, you can read out the indicated value, status, set values and write in set
values.
2. Communication Mode 1
This mode continuously transmits the indicated values and the status.
3. Communication Mode 2
This mode transmits the indicated values when they are printed.

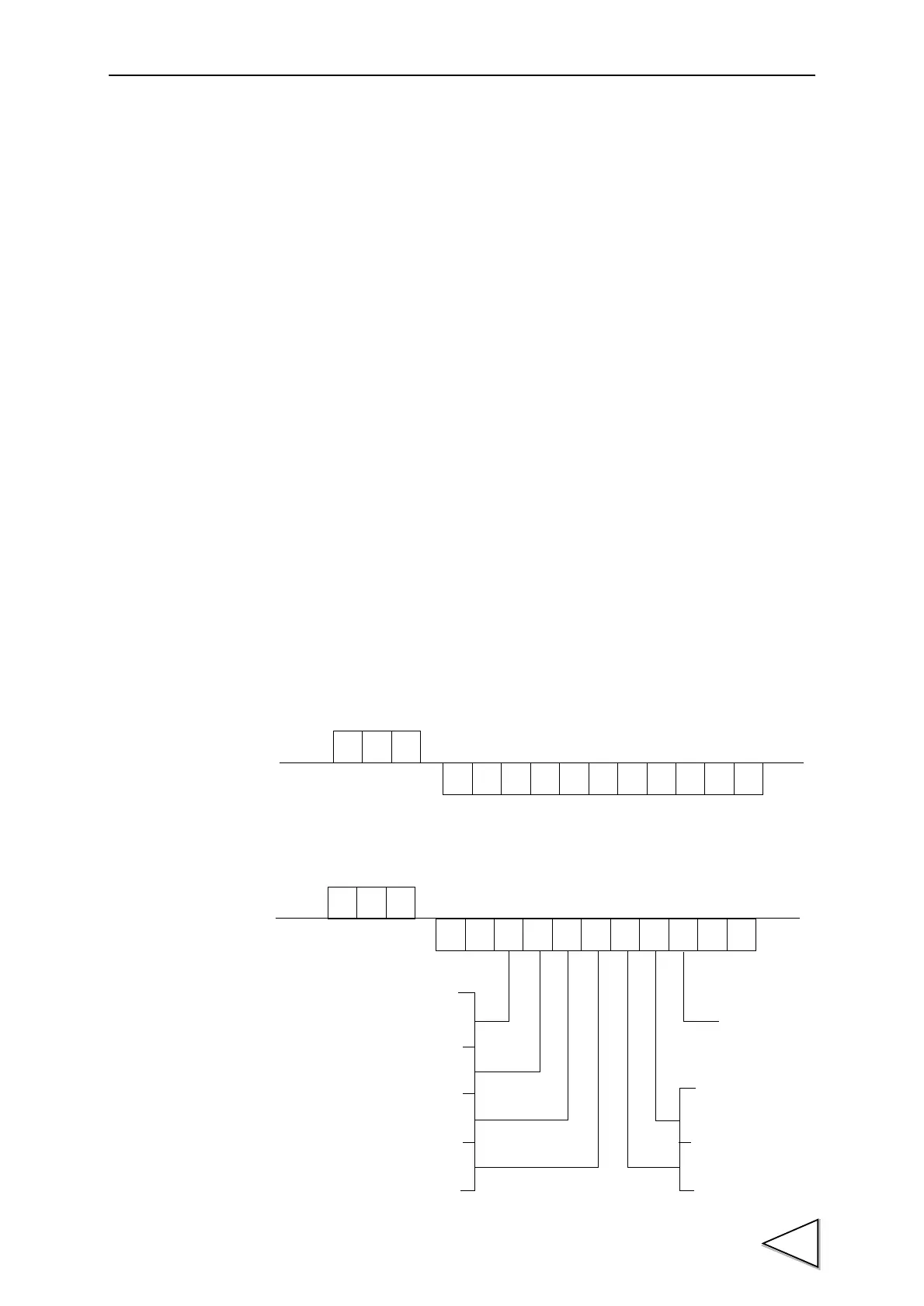

9-4. Communication Format
1. Communication Mode 0
・Reading Out the Indicated Value (the sign, indicated value with 5 digits and decimal point)
・Reading Out the Status (seven digits)
Host
TD-240A
R A CR
RA CRLF
＋
1 0 0 0 0 .
Host
TD-240A
RD CR
RD CRLF0 0 0 0 0 0 0
1:ON
0:OFF
1:ON
0:OFF
Near zero output signal 1:ON
HI output signal 0:OFF
HI 1:ON
LO output signal 0:OFF
L O 1:ON
output signal 0:OFF
OK 1:ON
output signal 0:OFF
※ Undefined
Hold
Stable
