9.RS-232C INTERFACE（TD-2404）
64
9. RS-232C INTERFACE（TD-2404）
RS-232C interface is used to read out the indicated value and the state of TD-240A and
to write set values into TD-240A. It is convenient to connect TD-240A with a computer,
a process controller and a sequencer, etc. to make processing such as control,
aggregation, recording and so on.
9-1. Communication Specifications
9-1-1. Standard
Signal level ：Based on RS-232C
Transmitting distance ：Approx.15m
Transmitting method ：Asynchronous，Full duplex
Transmitting speed ：1200，2400，4800，or 9600bps selectable
Bit configuration ：Start bit 1
Character length 7 or 8 bit selectable
Stop bit 1or 2 bit Selectable
Parity none,odd or even selectable
Code ：ASCII

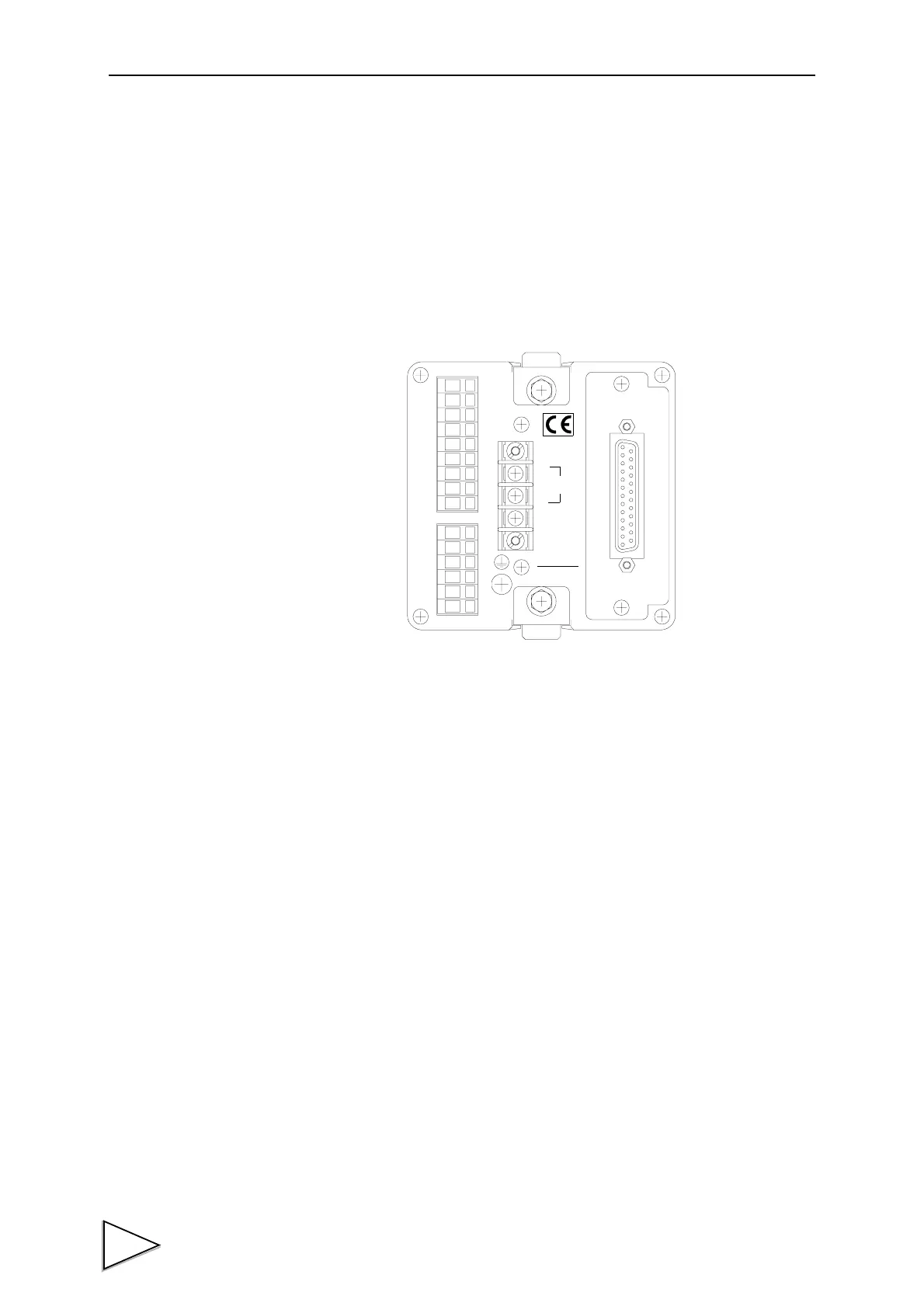

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
L
N
AC IN
F. G.
SER. No.
MADE IN JAPAN
