10.D/A CONVERTER（TD-2407）
73
10-1. Obtaining Voltage Output Signal
Use + and - terminals of TD-240A connecting to them an external equipment (with load
resistance of 2KΩ or more).
10-2. Obtaining Current Output Signal
Use + and - terminals of TD-240A connecting to them an external equipment (with load
resistance of 350Ω or less).
＋
－
＋
－

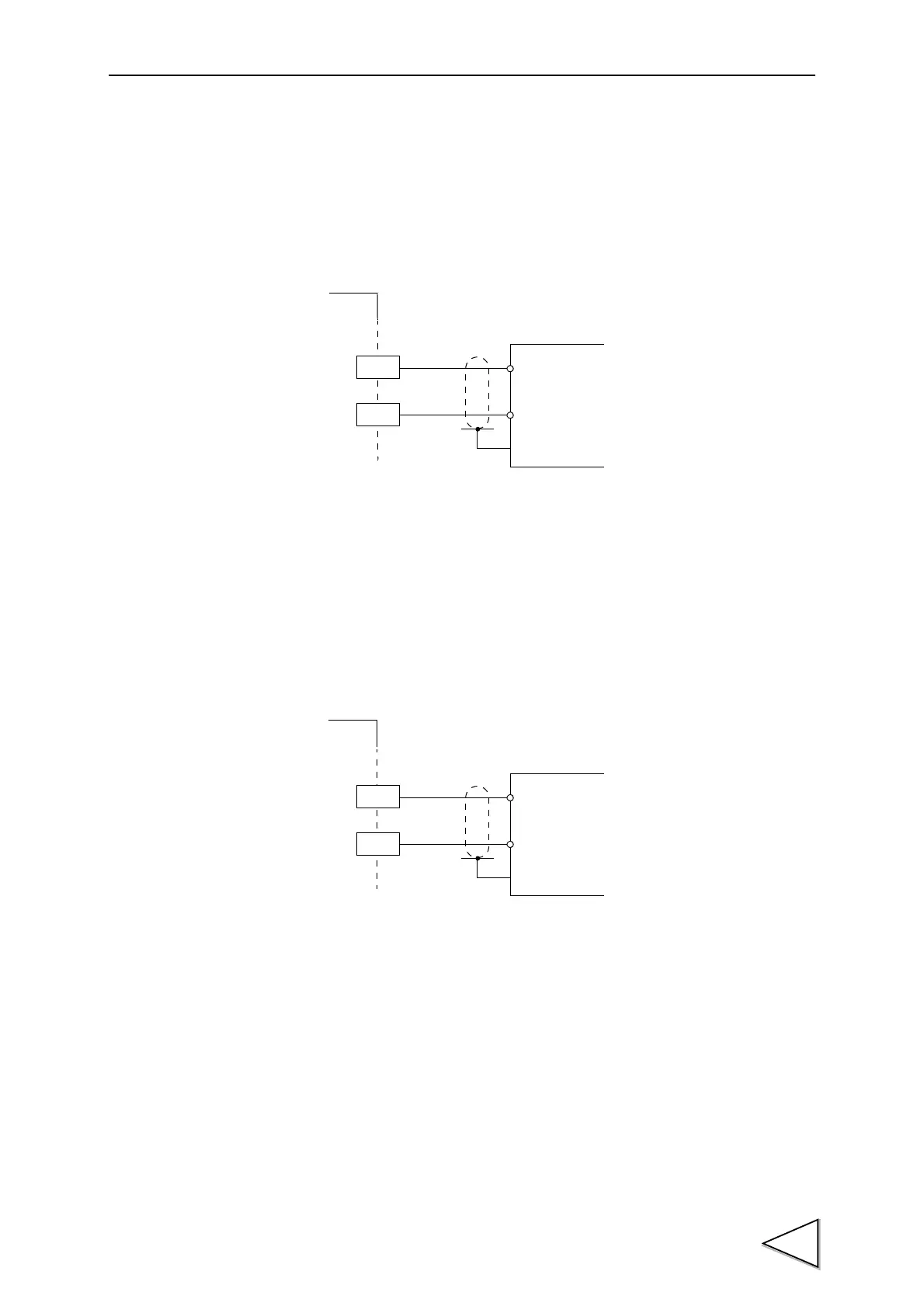

External equipment
Load resistance: 2KΩ or more
SIG
GND
← Inside Outside →
TD-240A
＋
－
External equipment
Load resistance: 350Ω or less
SIG
GND
← Inside Outside →
＋
－
TD-240A
