10.D/A CONVERTER（TD-2407）
72
10. D/A CONVERTER（TD-2407）
This is a converter to obtain an analog output which is linked with the indicated values of
TD-240A.
The range of the analog output is from 0 to +10V for the voltage output or from 4 to
20mA for the constant current output.
For any digital value you have set with the D/A zero setting and the D/A full scale setting
functions, you can obtain from zero (0V, 4mA) to full scale (+10V, 20mA) of analog
output.
The output circuit and the main circuit are isolated. The resolution is 1/3000 for the
voltage from 0 to +10V and the conversion rate is 100 times per a second. The output
has an overrange of about ± 10%FS.

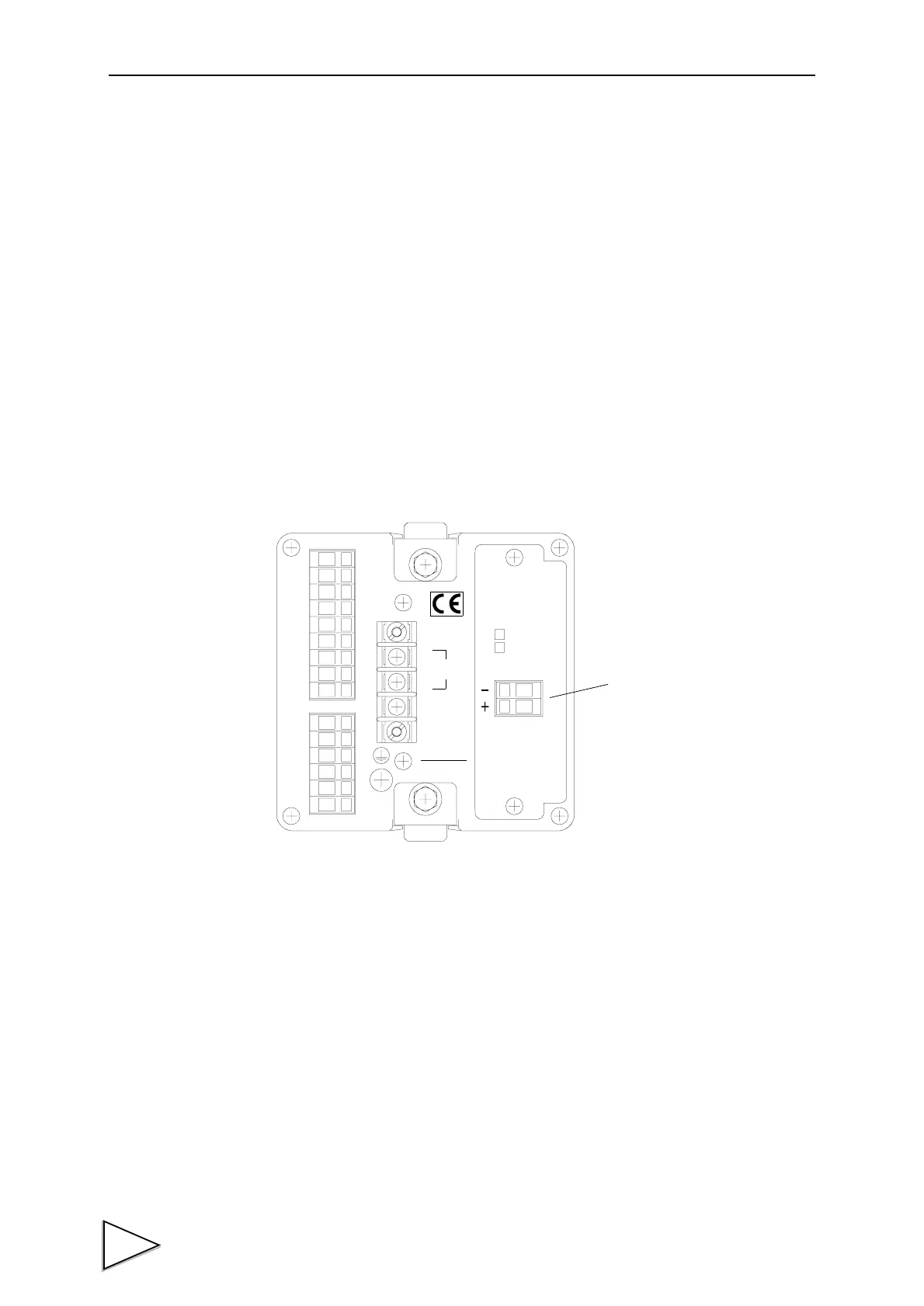

These are terminals to obtain
voltage or current signal of the
voltage/current output terminal.
+ is for signal and - for ground.
You can obtain voltage from 0
to +10V or current from 4 to
20mA.
