6. MAIN UNIT REPLACEMENT EO18-11006A
6.4 Replacing the LCD Ass’y
6- 6
6.4 Replacing the LCD Ass’y

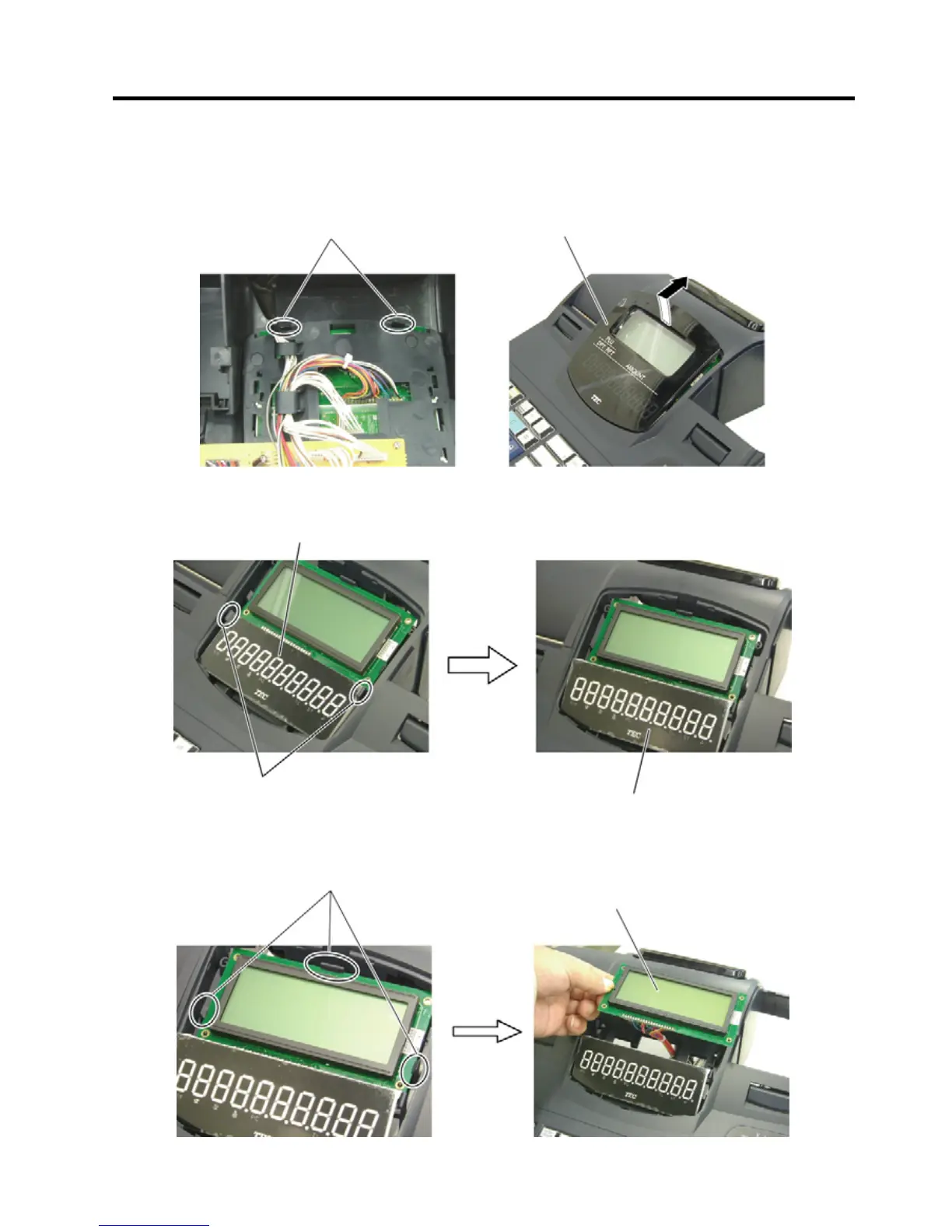

1) Remove the Top Cover Ass’y. (Refer to Section 6.1 Removing the Top Cover Ass’y.)
2) Release the two hooks which secure the FIU Panel on the rear side of the Top Cover, then remove the FIU
Panel.
3) Release the two hooks which secure the FIU PC Board Ass’y.
4) Release the three hooks which secure the LCD Ass’y, then remove the LCD Ass’y.
Hook
FIU Panel
FIU PC Board Ass’y
Hook
FIU PC Board Ass’y
Hook
LCD Ass’y
To Next Page
