6. MAIN UNIT REPLACEMENT EO18-11006A
6.8 Replacing the Keyboard Unit
6-14
6.8 Replacing the Keyboard Unit

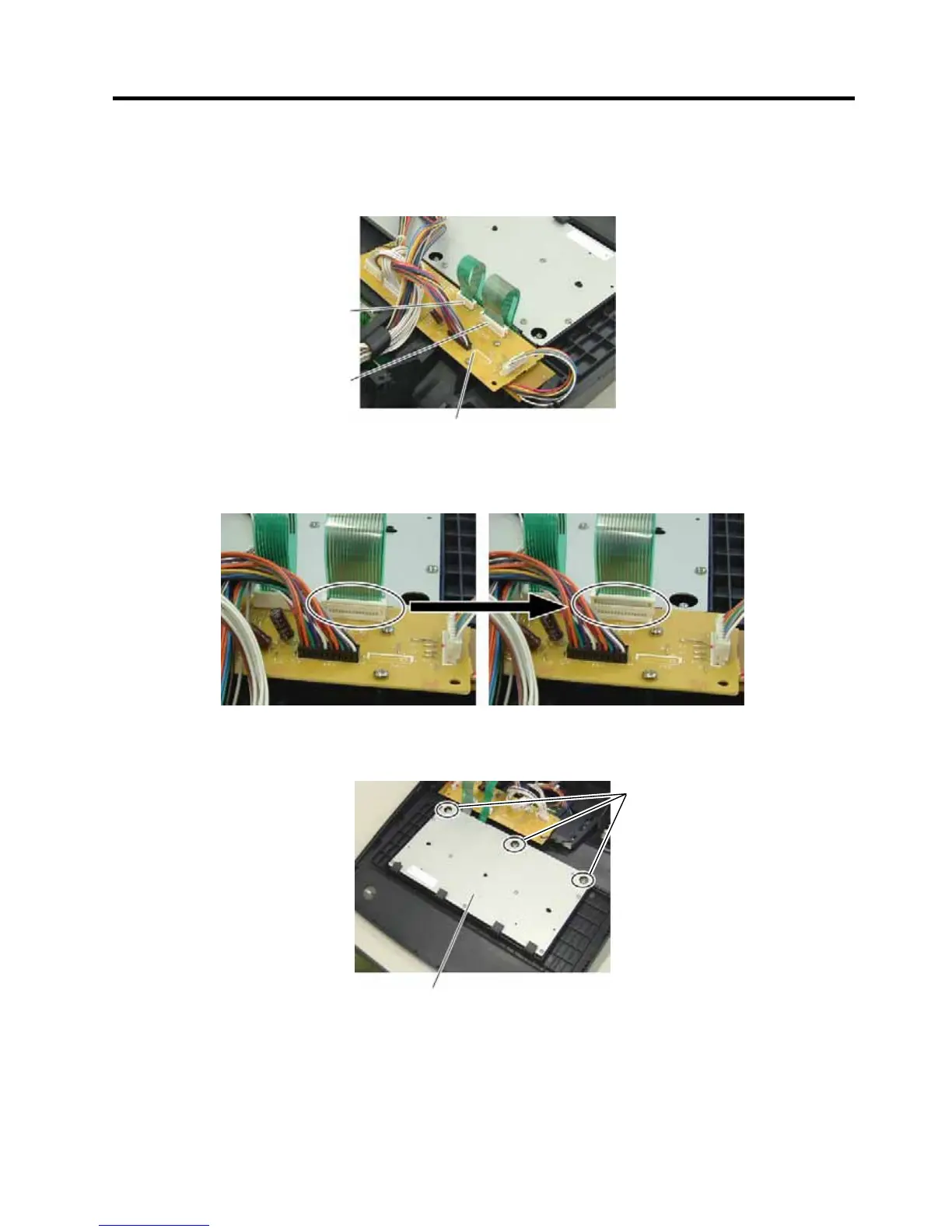

1) Remove the Top Cover Ass’y. (Refer to Section 6.1 Removing the Top Cover Ass’y.)
2) Disconnect the Keyboard FPC Cables from CN3 and CN5 on the KBIU PC Board Ass’y.
NOTE: When disconnecting the Keyboard FPC Cable, release the connector by pulling up the upper part, then
disconnect the Keyboard FPC Cable. If forcedly pulled, the cable may be damaged.
3) Remove the three screws which secure the Keyboard Unit to the Top Cover, then remove the Keyboard Unit.
CN3
CN5
KBIU PC Board Ass’y
Keyboard Unit
Screw
