6. MAIN UNIT REPLACEMENT EO18-11006A
6.9 Replacing the Receipt Printer Unit
6-17

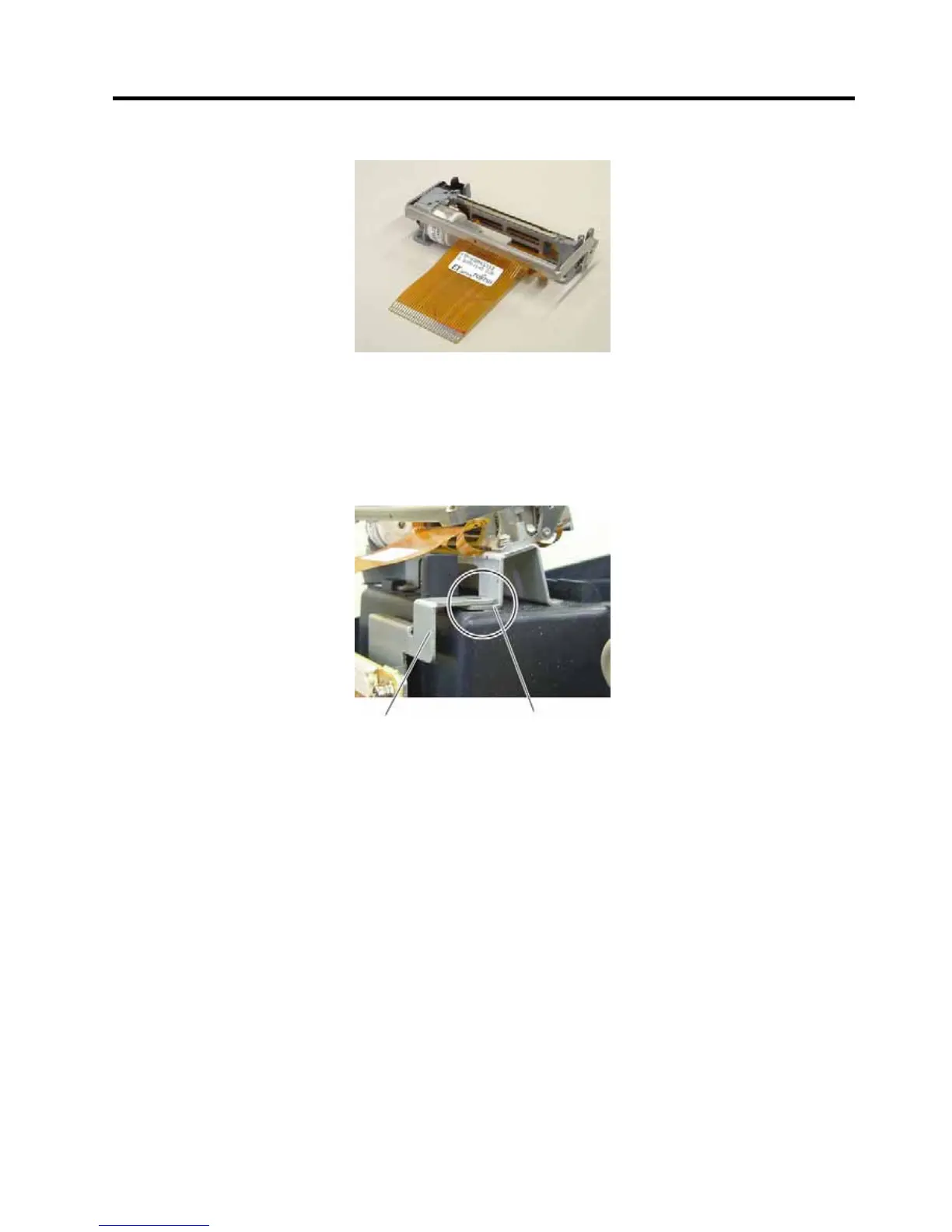

5) Replace the Receipt Printer Unit with a new one, and then reassemble in the reverse order of removal.
6) Make a printer test in the diagnostic test to check the operation of the new printer. (Refer to Section 3.2
Print Test (“H” & All characters).)
NOTE: When reassembling, secure the Printer PWB Plate which supports the PRCN PC Board Ass’y and the
Printer Base L together with the screw so that the Printer Base L should be under the Printer PWB
Plate.
Printer Base L
Printer PWB Plate
