TEC MA-600 Series Maintenance Manual

6. MAIN UNIT REPLACEMENT EO18-11006A
6.11 Replacing the Platen Roller Ass’y
6-21
Journal Side

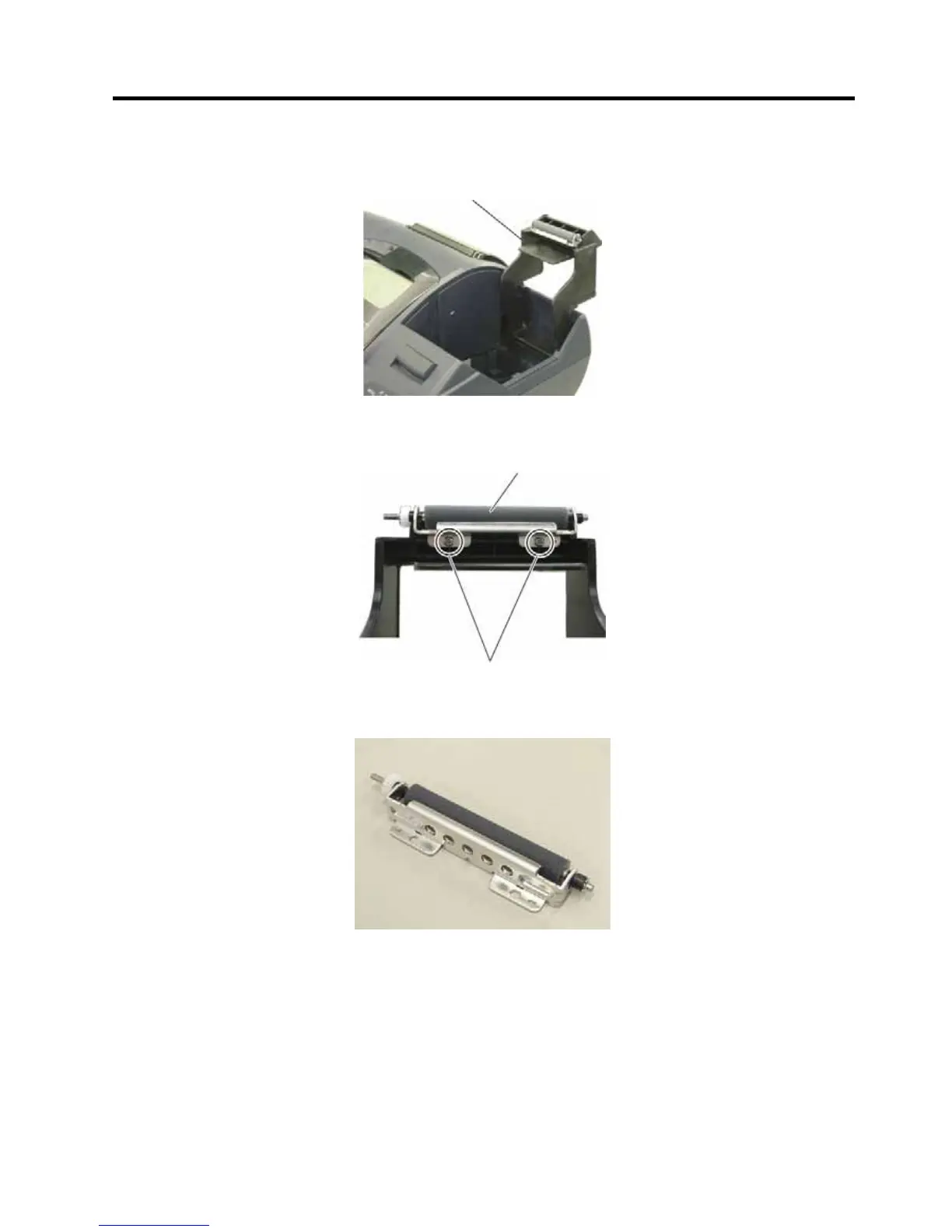

1) Remove the Journal Cover, then push the Release Button to raise the Journal Paper Retainer.
2) Remove the two screws which secure the Platen Roller Ass’y, then remove the Platen Roller Ass’y.
3) Replace the Platen Roller Ass’y with a new one, and then reassemble in the reverse order of removal.
Journal Paper Retainer
Screw
Platen Roller Ass’y
