2. General
2022-01 HYDROFLEX PLUS No. 30199906 Rev. No. 1.1 23

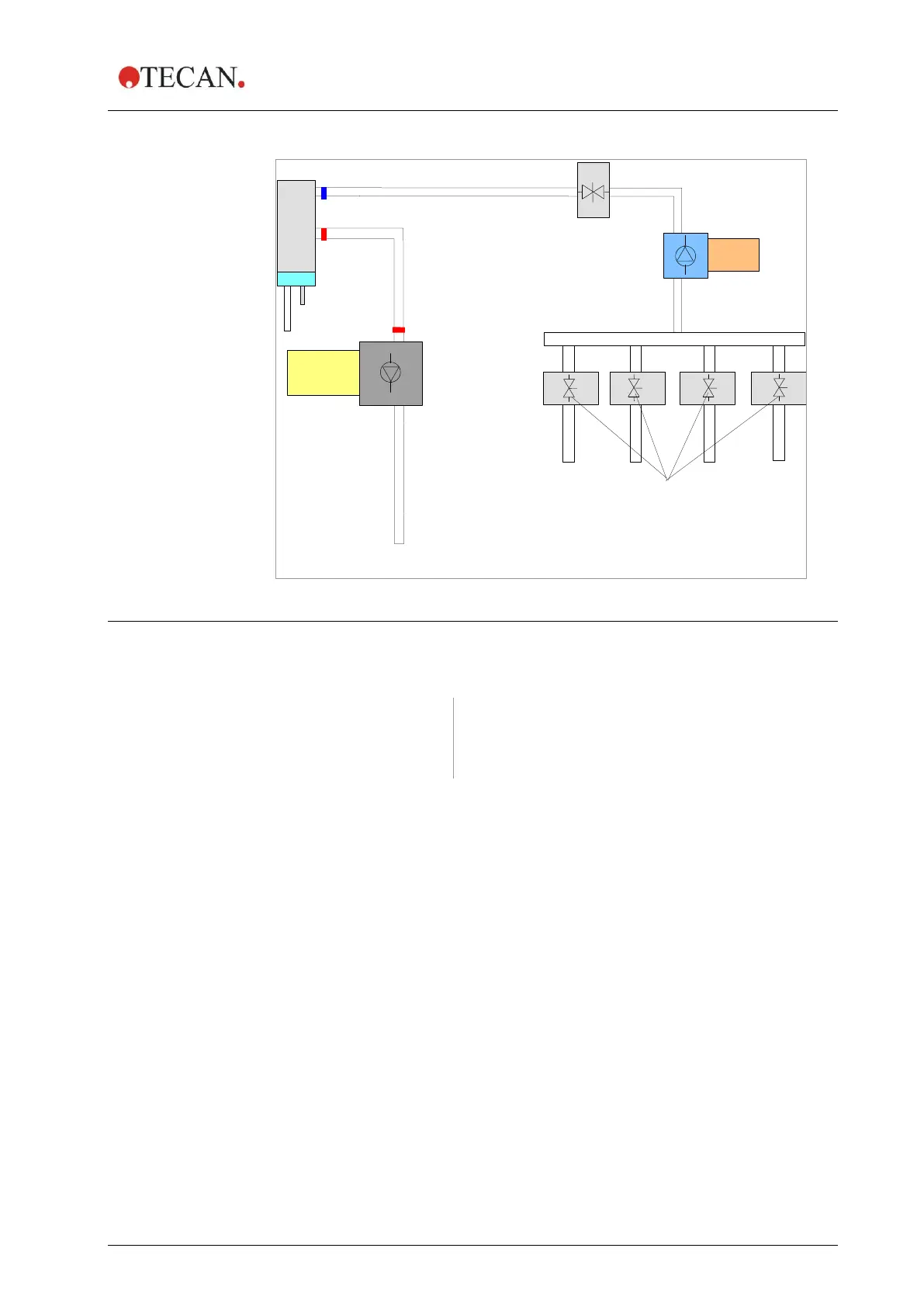

2.4.3 Liquid System Diagram
Manifold
Dispense Solenoid
Valve
Dispensing Pump
Channel select
Solenoid Valves
Aspirating Pump
Marked blue
Marked red
Marked
red
1
2
3
4
2.5 HYDROFLEX PLUS Option
The HYDROFLEX PLUS can be delivered with the following option:
Liquid Level Detection
(LLD)
The level of liquid is checked in the liquid bottle(s)
and in the waste bottle.
An acoustic signal alerts the user when the bottles
are empty or full.
2.5.1 Liquid Level Detection (LLD)
Liquid level sensors are built into the covers of all bottles to avoid overflow of
waste bottles and to warn the user when the liquid bottles are almost empty.
