tecan HYDROFLEX PLUS - Connection Diagram

3. Installation
28 HYDROFLEX PLUS No. 30199906 Rev. No. 1.1 2022-01

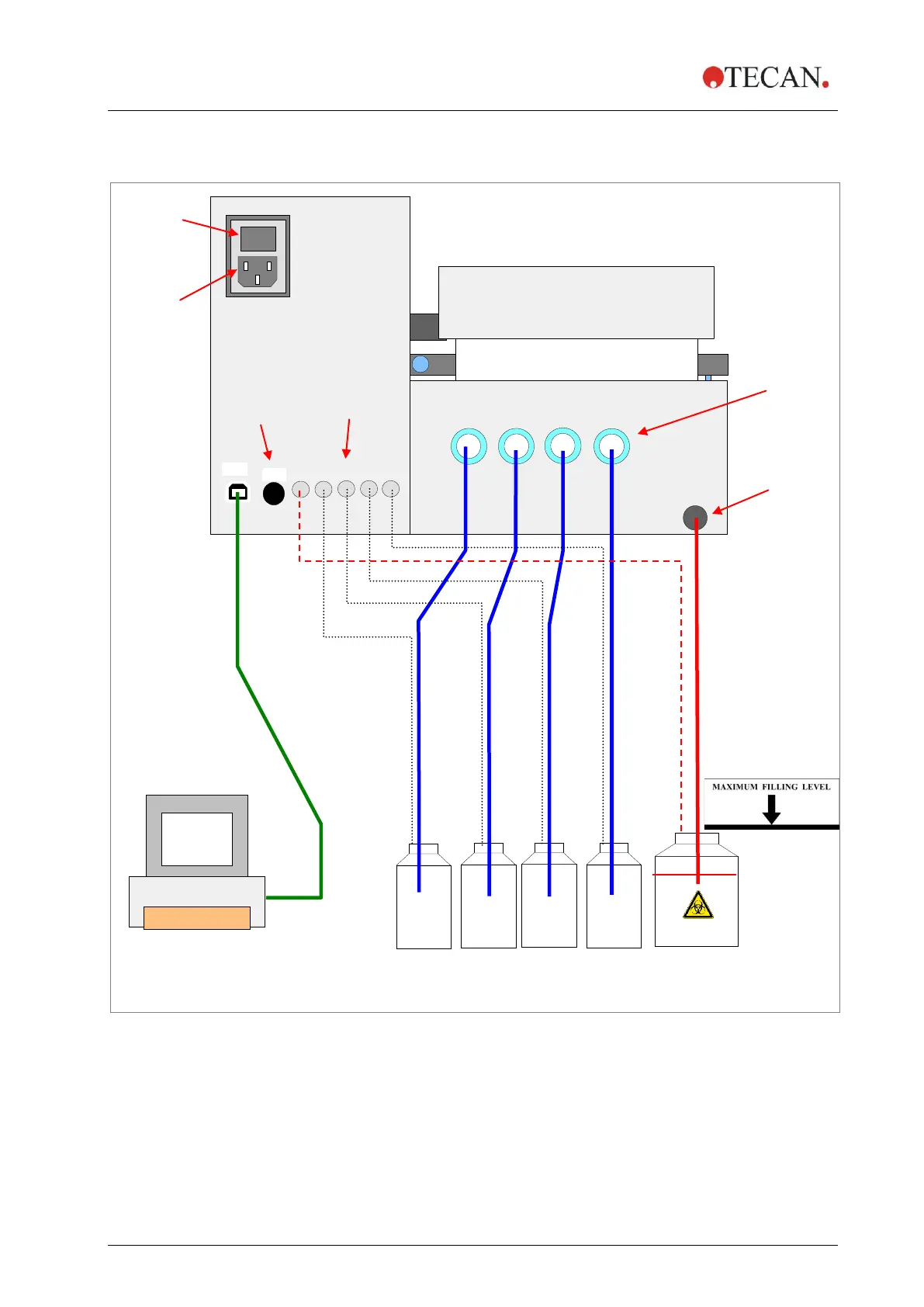

3.3.1 Connection Diagram
Computer for
Remote Control
using the
HydroControl
software
Maximum
filling level
as indicated
on bottle
USB
Liquid 2
Liquid 1
Liquid 3
Liquid 4
Waste
W L1 L2 L3 L4
L1 L2 L3 L4
W
VAF
LLD
Sensors
Liquid
Tubes
Waste
Tube
I O
Main
Power
Socket
ON/OFF
Switch
Vacuum
Filtration
System
Connector
Fig. 3.2 Connection Diagram
