MediaGateway User Manual
Double Tagging TPID: On Board Switches use the old non-standard 802.1QinQ 0x9100
ether type (TPID) for double tagged frames. New 802.1QinQ standard uses TPID
0x88A8. The TPID can be changed in this field. It is only available if double tagging is
activated. Only these two ether types are not working.
3.5.2 ARL Table Status
When you click on one of the switches (indication by blue letters) the entries of the
Address Resolution Table of selected switch will be displayed.

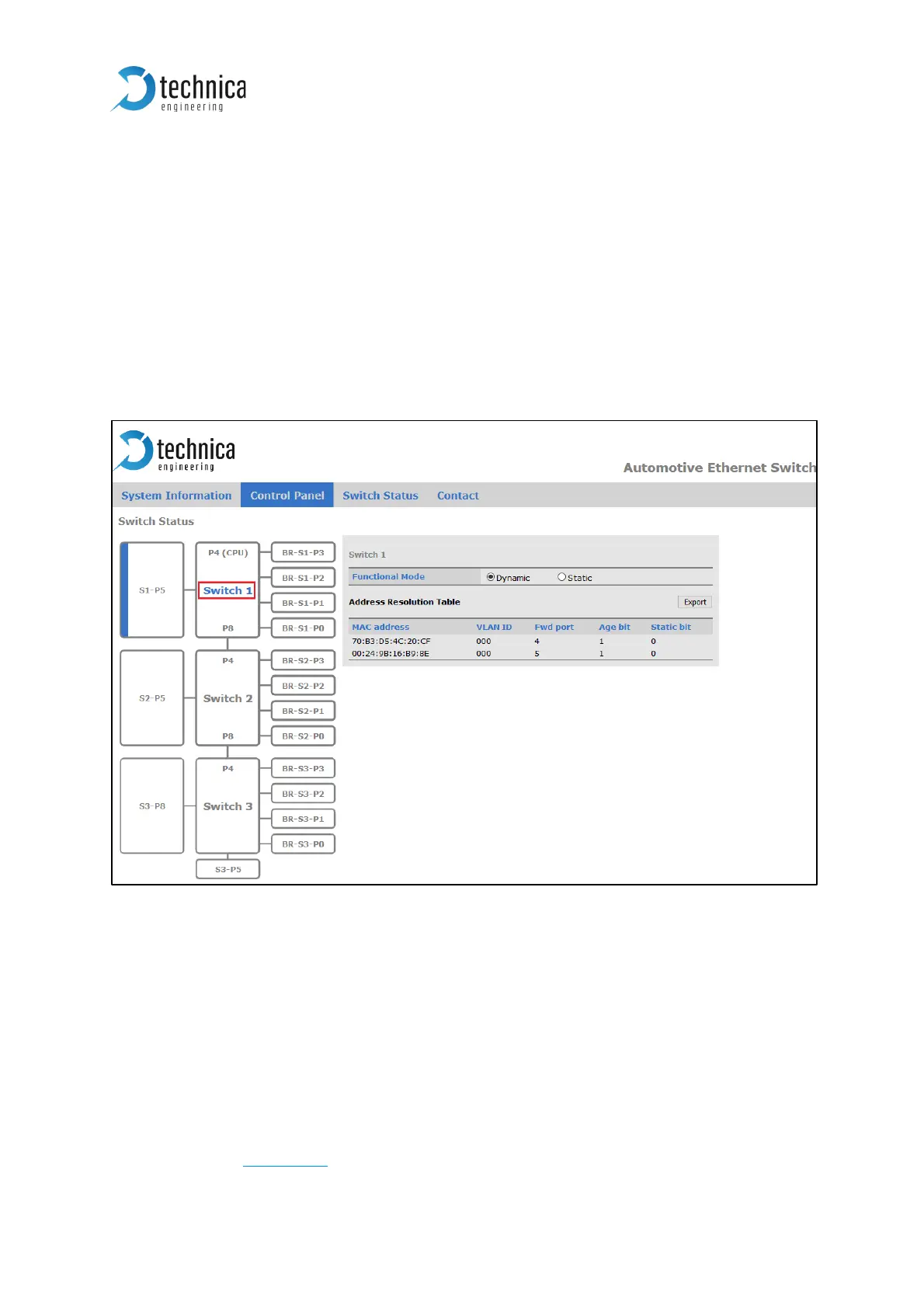

Figure 3-9: Current ARL Table of Switch 1
Functional Mode: It must be chosen for each switch separately. Standard mode is
Dynamic.
Dynamic: the switch is learning the ARL table by itself
Static: the ARL table can be set and all entries must be defined by the user. Even the
micro of the MediaGateway itself and the PC for configuration.
The Address Resolution Table shows the following information:
MAC address, VLAN ID, Fwd port, Age Bit, Static Bit
The example of FIGURE 3-9 shows two ARL Entries in Switch 1:
