MediaGateway User Manual

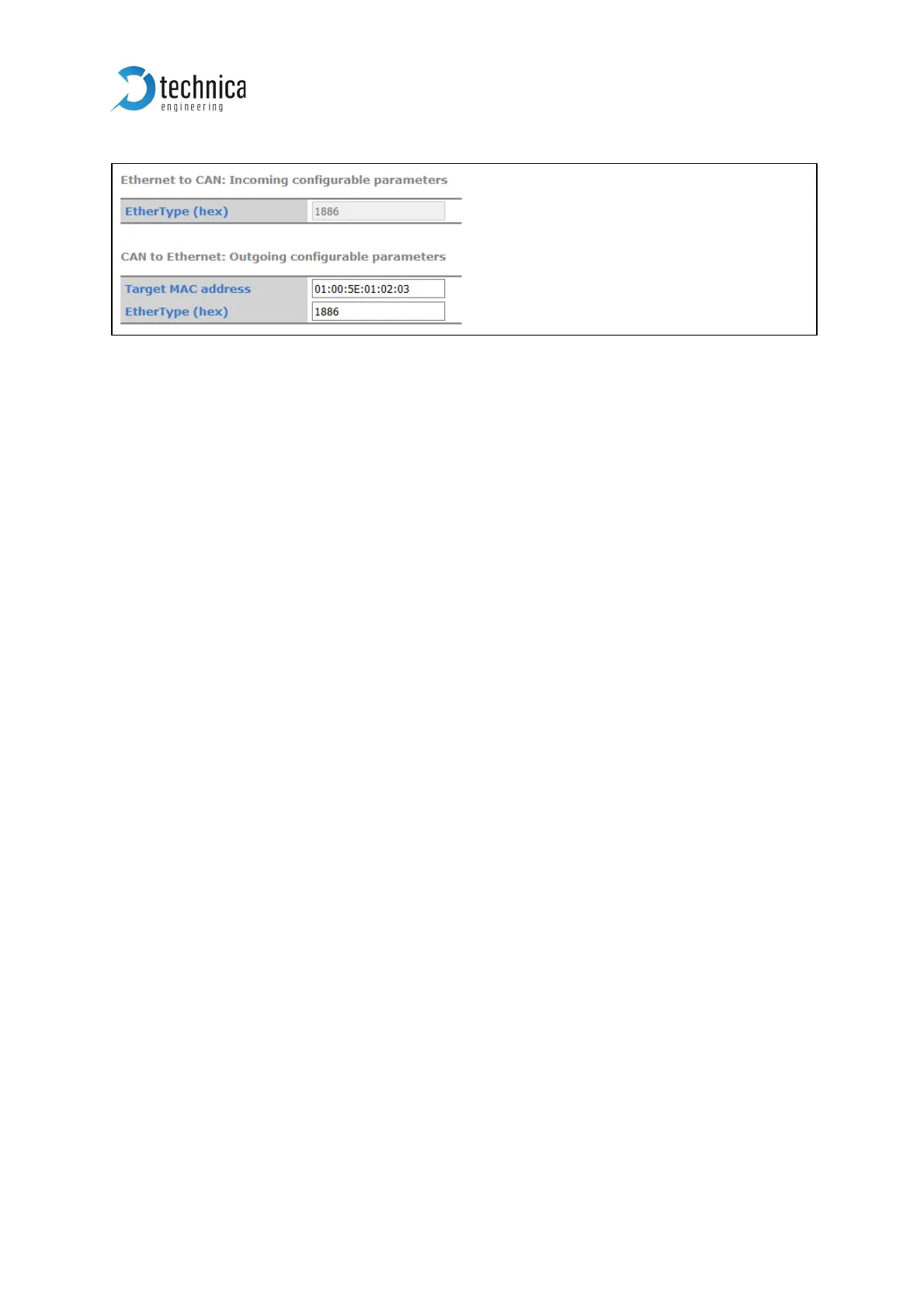

Figure 3-37: CAN-Eth-Gateway configurable parameters

3.7.4 Communication mode: Extreme RAW

Using this mode, the CAN Gateway can be configured by setting target MAC Address

and the EtherType of the RAW packets. Non-valid entries will not be accepted and will

be replaced by default values. If the target MAC address or the EtherType has the

default value set, the Ethernet CAN Gateway will be disabled.

Here you can see an overview about the configuration board for the Extreme RAW

mode.
