6.2 Port Information Frame (0x8002)

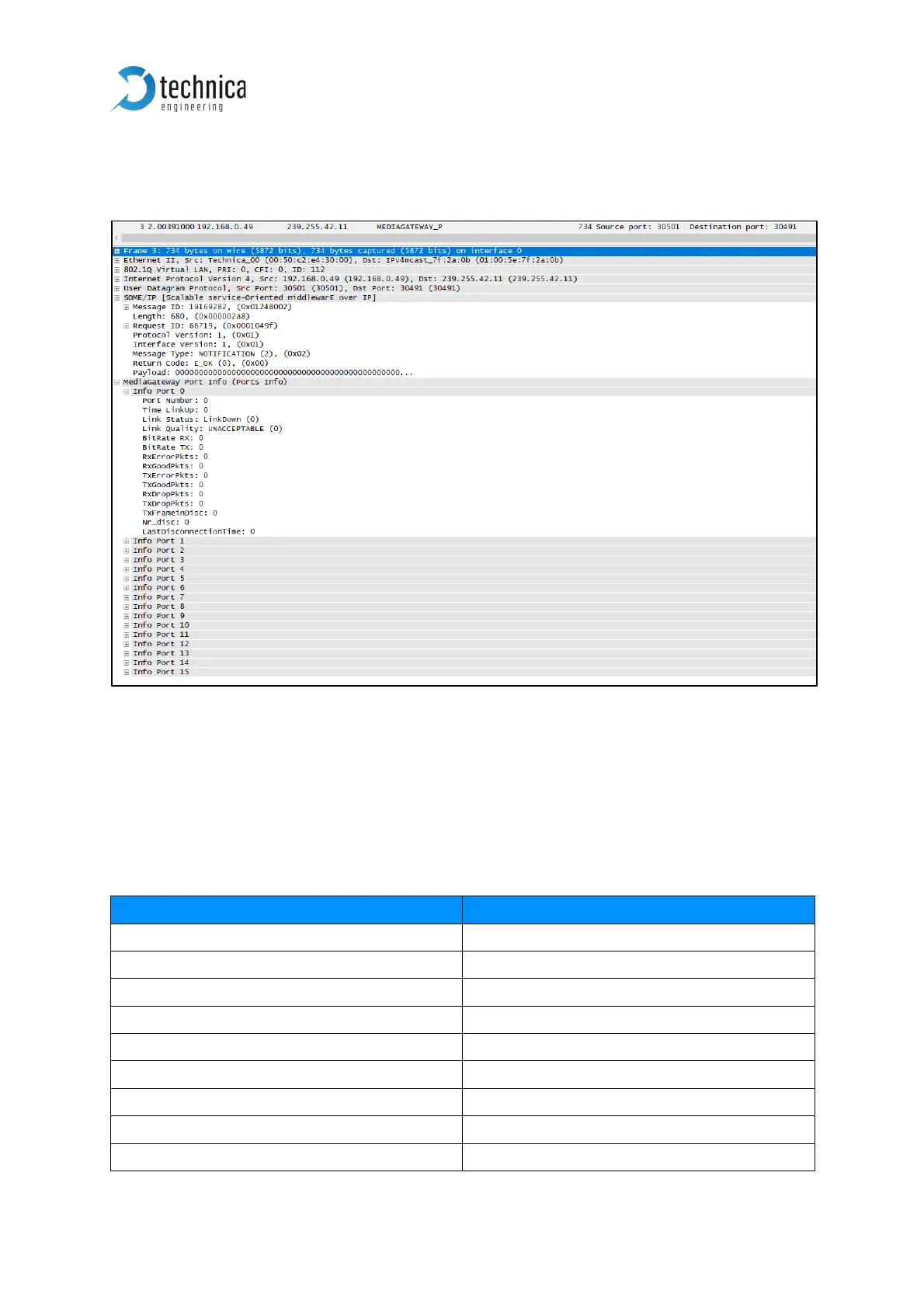

Figure 6-2: Board Information Frame
This frame contains the information of 15 ports (12 BR ports and the 3 Ethernet Ports).
The same information for each port is available. The related bytes for each port are
indicated in the payload by the variable “Nr_Port” (0 to 14).
Description of payload of the Board Configuration frame, starting with byte “0” at the
beginning of the payload of SOME/IP frame:
[bytes]
Values
(Nr_port x 42) + 0 Port Number
(Nr_port x 42) + 1 to (Nr_port x 42) + 2 Time for Link Up
(Nr_port x 42) + 3 Link Status
(Nr_port x 42) + 4 Link Quality
(Nr_port x 42) + 5 to (Nr_port x 42) + 6 BitrateRx [Mbit/s]
(Nr_port x 42) + 7 (Nr_port x 42) + 8 BitrateTx [Mbit/s]
(Nr_port x 42) + 9 to (Nr_port x 42) + 12 RxErrorPkts
(Nr_port x 42) + 13 to (Nr_port x 42) + 16 RxGoodPkts
(Nr_port x 42) + 17 to (Nr_port x 42) + 20 TxErrorPkts
