Technica MediaGateway User Manual

MediaGateway User Manual
79
Do a save

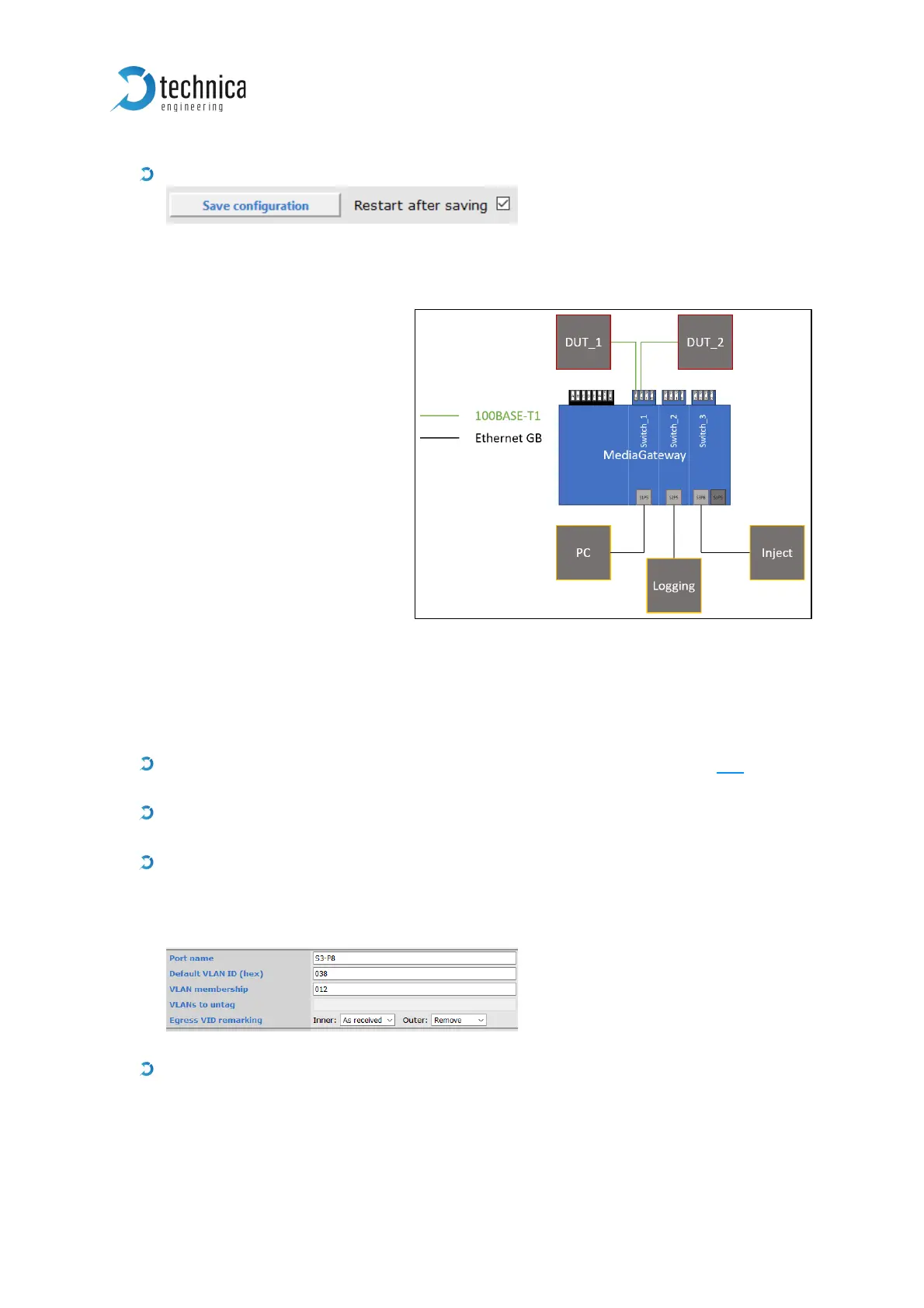

4.2 Get access by third communication partner
Now we try to get access by a third
communication partner on the
“Inject”-Port (S3-P8) to the DUT_2.
Steps to configure your MediaGateway:
Take your MediaGateway and configure it like the example before (4.1).
Go to port S3-P8
Set default VLAN ID e.g. 0x38 and set the VLAN membership to the default
VLAN ID of the connected port, in this case 0x12. As your Inject-device probably
will not work with outerVLAN tags, set Egress VID remarking for outerVLANs to
remove
Port S3-P4 and S2-P4 must forward the data from S3-P8 to Port S1-P2. They
should not touch the already configured outerVLAN Tag. => set VLAN
membership to 0x38 and set Egress VID remarking for outerVLAN tags to
Normalized.
Figure
4-2: Example for inject
