68
Target MAC address: Target MAC address must respect the usual format (a sequence
of six hexadecimal numbers having two bytes size each, separated by a colon)
xx:xx:xx:xx:xx:xx. Note that entering Broadcast MAC address FF:FF:FF:FF:FF:FF as
Target MAC address will cause sending time stamps frames to be disabled
EtherType (hex): The EtherType is a two bytes hexadecimal number. The EtherType
field can accept any value between 0 and FFFF.

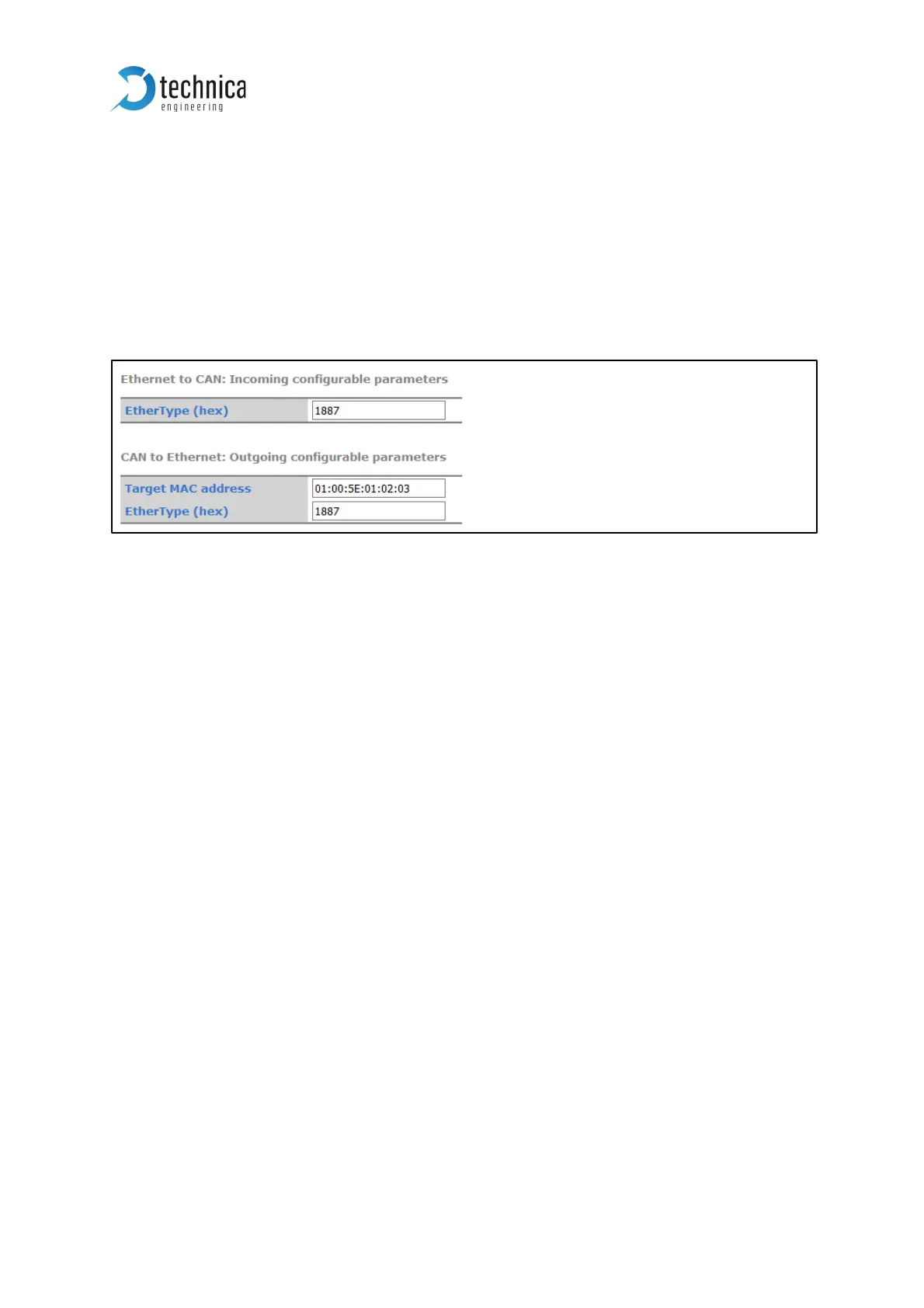

Figure 3-34: CAN-Eth-Gateway configurable parameters
3.7.3 Communication mode: Speed RAW
Using this mode, the CAN Gateway can be configured by setting target MAC Address
and the EtherType of the RAW packets. Non-valid entries will not be accepted and will
