MediaGateway User Manual
CAN Parameters:
(only in advanced mode available)
Speed: For each CAN channel the correct speed must be selected (CAN-
FD is not available.)
Following kilo baud per second are available:
125Kbps
500Kbps
1000Kbps
CAN ID Filtering: Please select the CAN channels by checking the box. Then you can
adjust CAN ID Filtering.
For each selected CAN channel there appears a line where the CAN IDs must be put
in. Values are in hexadecimal and are separated by a comma.

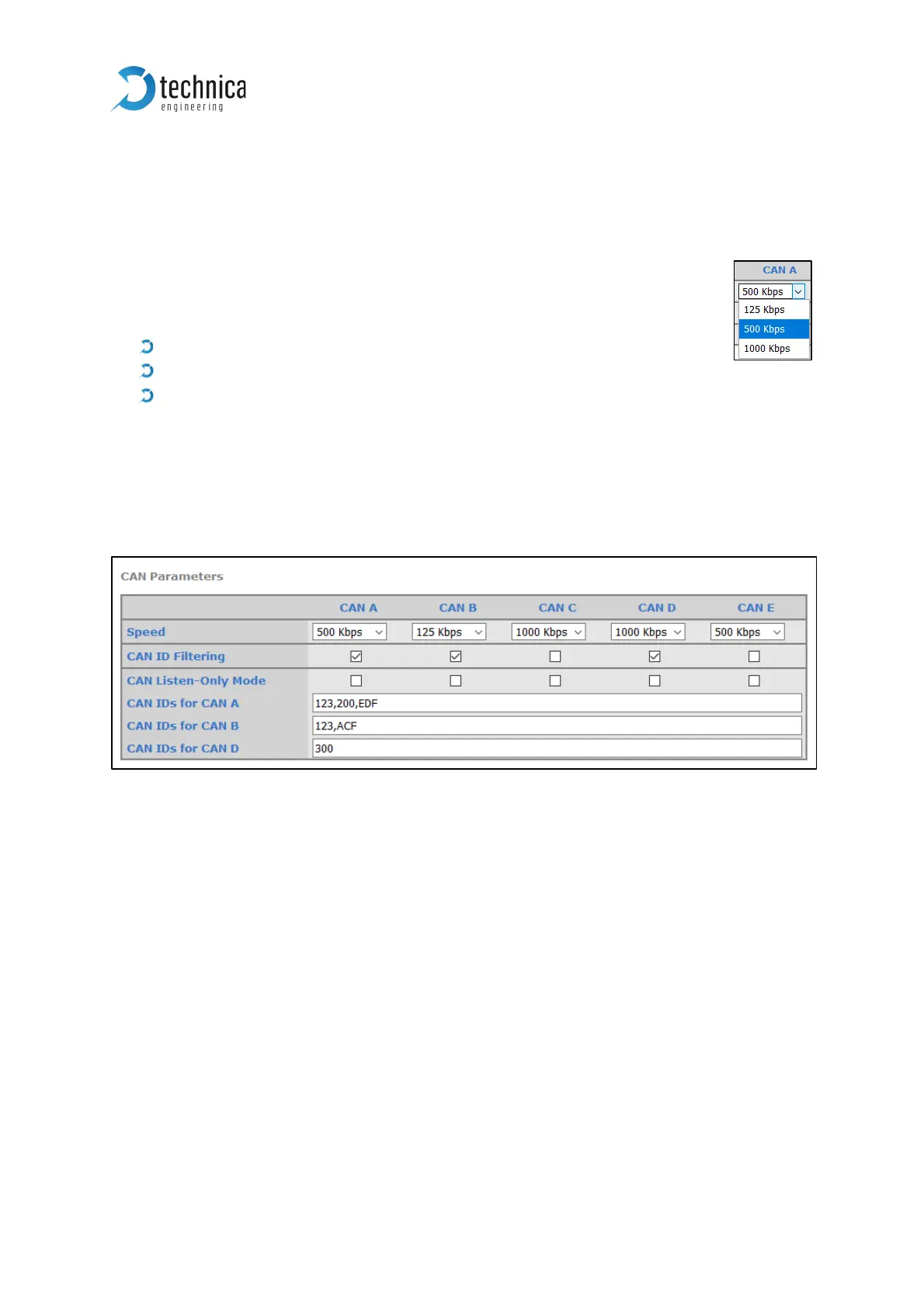

Figure 3-33: CAN Parameters
CAN Listen-Only Mode: By checking the box, Listen-Only mode is active for the
selected CAN channel. Listen-Only means no acknowledge is done for CAN messages
on this bus by the MediaGateway. In deactivated Listen-Only Mode, the MediaGateway
acknowledges every message on the CAN channel. This is necessary if there is no
other communication partner for the CAN messages.
Ethernet to CAN: Incoming configurable parameters:
EtherType (hex): The EtherType is a two bytes hexadecimal number. The EtherType
field can accept any value between 0 and FFFF.
CAN to Ethernet: Outgoing configurable parameters:
