MediaGateway User Manual
Drop mirrored packets with…:
Each field allows one MAC address. In total
six MAC addresses can be configured. It is a
filter for outgoing traffic. Data with
configured MAC address as destination MAC
address will be dropped and forwarded.
Note: This drop feature is only available if mirroring on this port is activated.
3.6.2.4 100BASE-T1 Ports

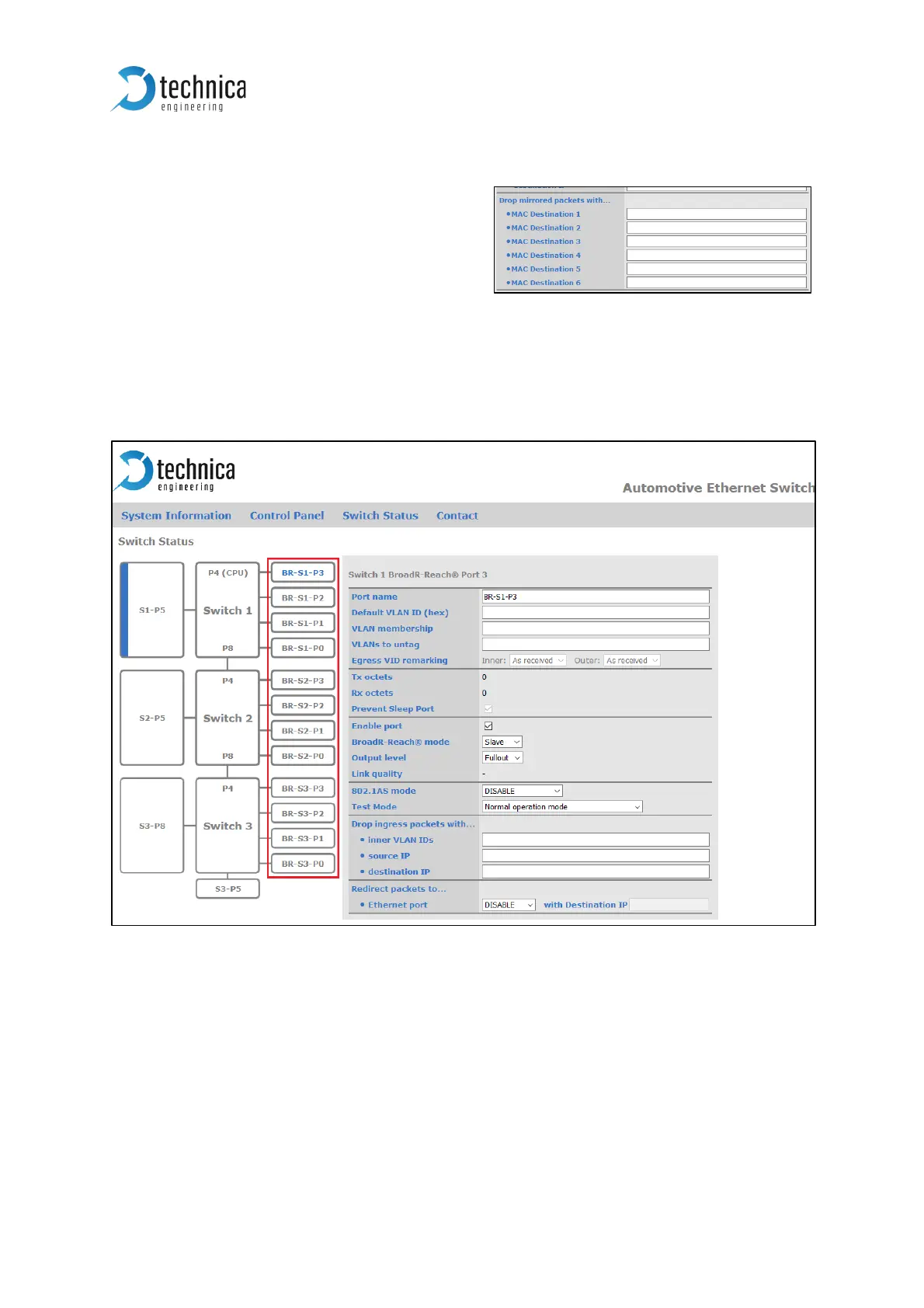

Figure 3-23: 100BASE-T1 Ports
Port name: Here you can change the Port Name
Default VLAN ID (hex): please define one hexadecimal value between 0x1 and 0xFFF.
Incoming traffic is single tagged with this value, if not already tagged. It is not
overwriting VLAN-IDs.
