MediaGateway User Manual
This adjustment is valid only for (allowed) outgoing traffic. Three different options are
available:
As received: a frame came in to the (current) switch on another port. This frame
must leave on this port “as received” =>
o leave with VLAN if received with VLAN on another port
o leave without VLAN if received without VLAN on another port
Remove: a frame leaves the switch on this port without the VLAN
Normalized: a frame leaves the switch on this port with the VLAN
Tx octets: decimal value of sent octets on this port.
Rx octets: decimal value of received octets on this port.
Prevent Sleep Port: This option is available if the function “Prevent sleep” on “Control
panel” tab is deactivated.
This port is monitored: If there is incoming traffic on this port, the
MediaGateway doesn’t fall asleep.
This port is not monitored: The MediaGateway can fall asleep, even if there is
incoming traffic on this port.
Mirroring: On each switch only on port can be a mirroring port. Please select the ports
to be mirrored
Note: this is only valid for one switch! For example, if you want to mirror incoming
traffic on S3-P3 to S1-P5, it is necessary to mirror the traffic on S3-P4, then S2-P4, then
on S1-P5.

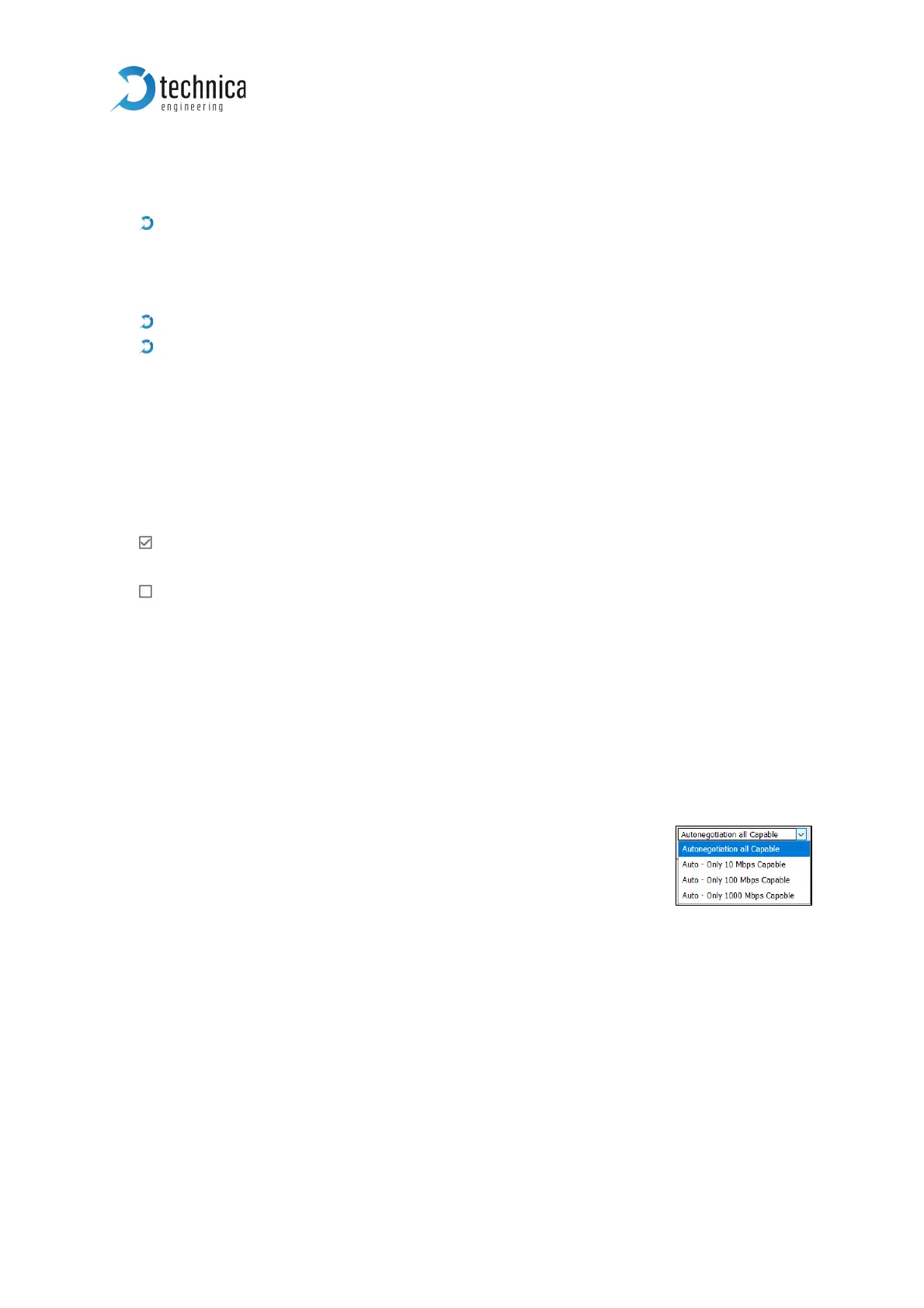

Speed: different speeds are available. By “Autonegotiation all
Capable” autonegotiation is done. By the other settings, the speed
is set, but master/slave is still autonegotiated.
Detected Speed: The possible speed between the MediaGateway and other devices is
detected in this port.
Drop ingress packets with…:
Inner VLAN IDs: as many as wished values between 0x1 and 0xFFF can be defined
separated by “,” [E.g.: 100, 101, EDF, …]. It is a filter for incoming traffic. Data with
configured innerVLAN-ID will be dropped and not forwarded, when incoming on this
port.
