2 Setting up your DWA0120
DMS3-CTC-25-552 v1.0
2.3 Connecting your wired devices
Requirements
• Both your network device (for example, a computer, a gaming console,…) and your DWA0120 must have a free Ethernet
port.
• Your network device must be configured to obtain an IP address automatically. This should be the default setting.
Ethernet cable
In your package, you may find one or more cables with yellow connectors. These are Ethernet cables that you can use to
connect a local network device (a computer, an Ethernet printer, etc.).
Procedure
Proceed as follows:

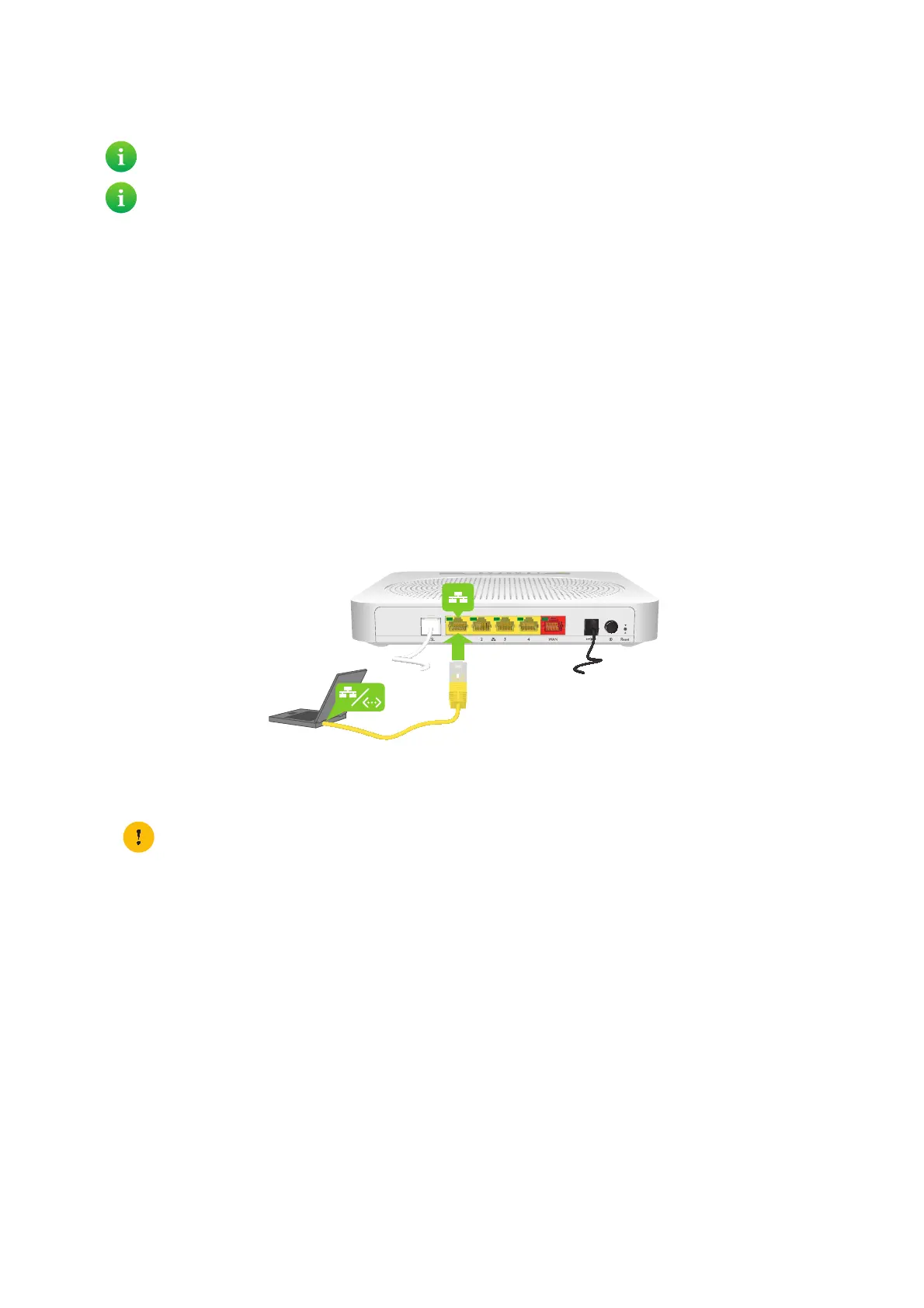

1 Connect one end of the Ethernet cable to one of the yellow Ethernet ports of your DWA0120:
2 Connect the other end of the Ethernet cable to your network device.
3 Your device is now connected to your network.
To connect Wi-Fi clients, see “3 Wi-Fi” on page 20.
To connect a set-top box for digital TV, first look for instructions in the documentation included in your package.
In some cases the set-top box will have to be connected to a dedicated Ethernet port (typically Ethernet port 4).
Your DWA0120 does not support Power over Ethernet (PoE). All network devices that are connected to the
DWA0120 must be powered by their own power source.

Technicolor DWA0120 Specifications

General

Device Type	Gateway
Wireless Technology	Wi-Fi
Frequency Band	2.4 GHz
Maximum Data Rate	300 Mbps
Ethernet Ports	4 x 10/100 Mbps
Antenna	Internal
Wireless Standards	802.11 b/g/n
Security Features	WPA2
Ports	4 Ethernet, 1 USB
