Technics SA-DX930 User Manual

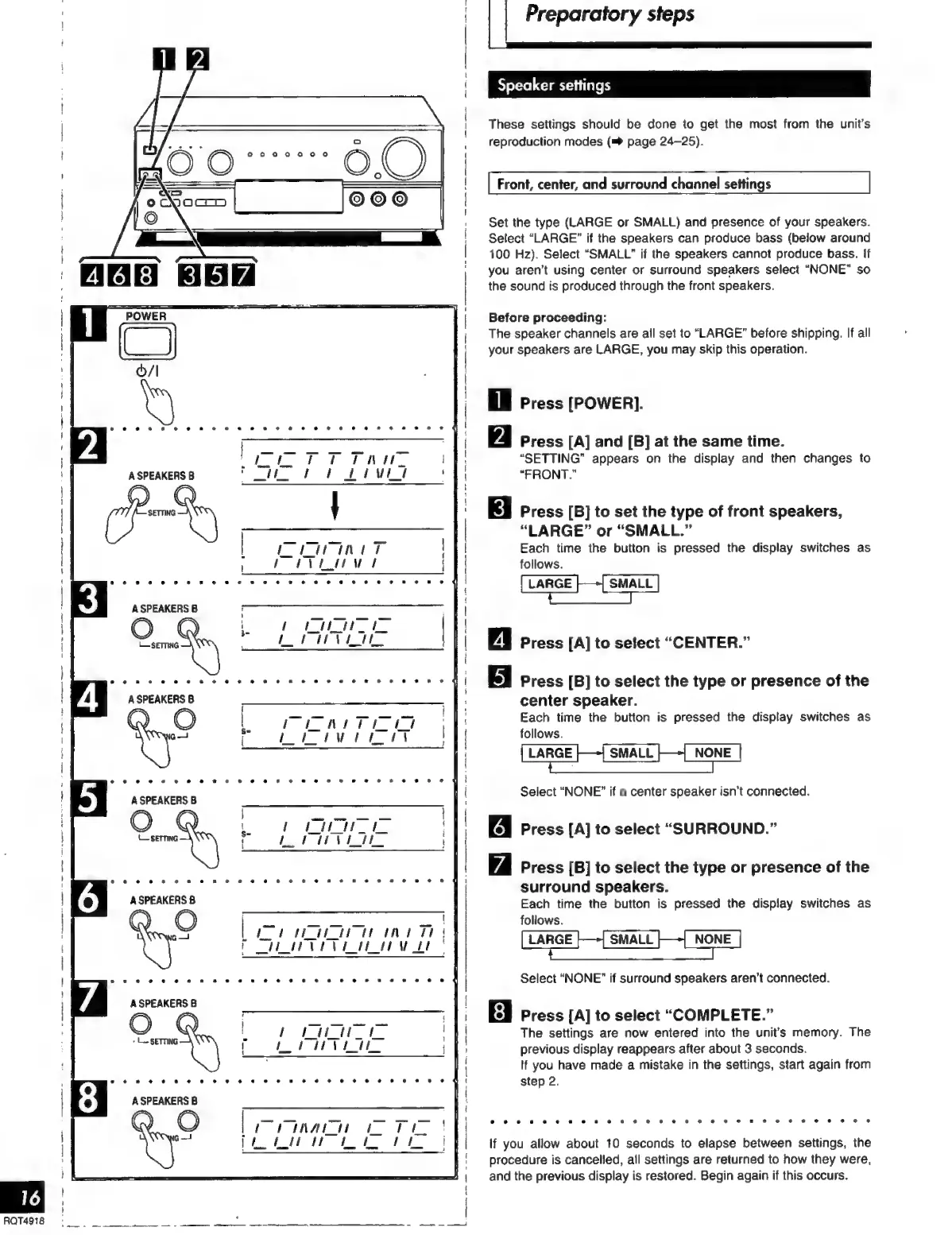

| | Preparatory steps
Speaker settings
These settings should be done to get the most from the unit's
reproduction modes (™ page 24—25).
Front, center, and surround channel settings
Set the type (LARGE or SMALL) and presence of your speakers.
Select “LARGE” if the speakers can produce bass (below around
100 Hz). Select “SMALL” if the speakers cannot produce bass. If
you aren't using center or surround speakers select "NONE" so
the sound is produced through the front speakers.
AS ee dien rus e
Before proceeding:
The speaker channels are all set to “LARGE” before shipping. If all
your speakers are LARGE, you may skip this operation.
Press [POWER].
Press [A] and [B] at the same time.
i EE “SETTING” appears on the display and then changes to
ASPEAKERS B Tbe L = “FRONT.”
Press [B] to set the type of front speakers,
“LARGE” or “SMALL.”
OO InIT Each time the button is pressed the display switches as
A IALHMI follows.
e e . * ee a m" * *9 € è e t @ @ . . a e LARGE - E
A SPEAKERS B
A A a oe a
DOE viv hit.
Press [A] to select "CENTER."
OS
oe n o è o s b
Press [B] to select the type or presence of the
A SPEAKERS B ——m J : center speaker.
Q — - E Each time the button is pressed the display switches as
o LII LL IN follows.
LARGE ES SMALL [C AL NONE
* a *" 9 s *o* è . ee a es 9 > > t O » b 8
A SPEAKERS B
Q i eT LL |
t— SETTING LoUCHVLIH
———— ——————————————————Ó— MÁ—A—— |
Select “NONE” if a center speaker isn't connected.
Press [A] to select “SURROUND.”
NS c
Press [B] to select the type or presence of the
surround speakers.
. e +è . LJ + a .
||
|
|
| A SPEAKERS 8 | Each time the button is pressed the display switches as
| Q | TIUN TI Elati
1 — L [A / tii NA : f
S E, ee ee
|
meee teen sett s! t tttm Select "NONE" if surround speakers aren't connected.
|
A
SPEAKERS
B
i
E
,
| O e NEUE E Press [A] to select "COMPLETE.
' M accra EO Hg: 0455 | The settings are now entered into the unit's memory. The
! L4 HE g90. i previous display reappears after about 3 seconds.
If you have made a mistake in the settings, start again from
s * * * 9» e o o * « e » mn ù d * © © @ à 8 $9 * 9 step 2.
| A SPEAKERS B
| i banat L T
| |t. CH IP oL. 1. [I If you allow about 10 seconds to elapse between settings, the
procedure is cancelled, all settings are returned to how they were,
and the previous display is restored. Begin again if this occurs.
RQT4918

Technics SA-DX930 Specifications

General

Impedance	8 ohms
Weight	11.5 kg
Video Connections	Composite video input/output
Power Output	100 watts per channel (8 ohms, 20 Hz - 20 kHz, 0.09% THD)
Total Harmonic Distortion	0.09%
Input Sensitivity	200mV
Tuning Range	FM, MW
Speaker Load Impedance	8 ohms
Input Sensitivity/Impedance	200 mV / 47k ohms (CD)
