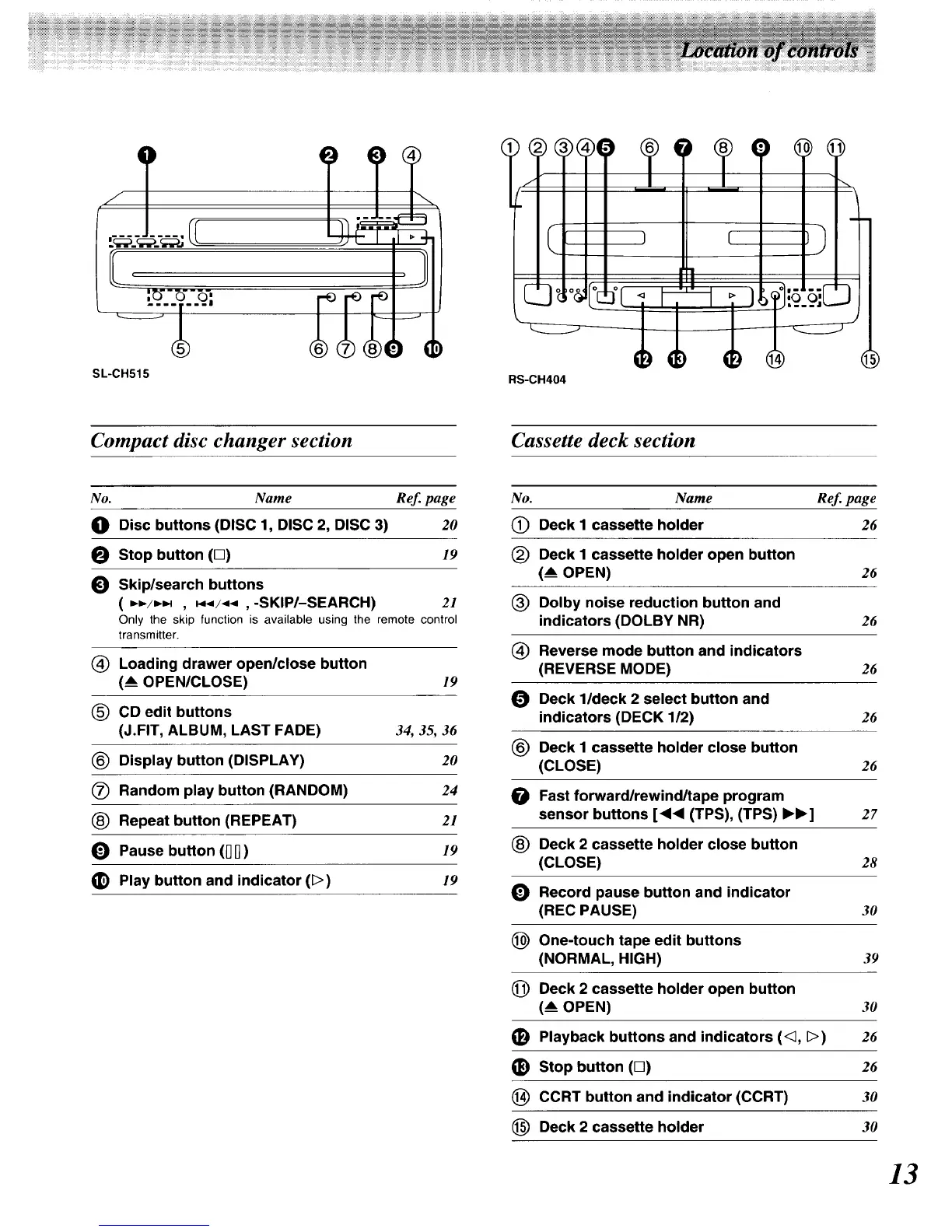

Technics SC-CH717 - Compact Disc Changer Controls (SL-CH515); Cassette Deck Controls (RS-CH404)

SL-CH515
z:
RS-CH404
Compact disc changer section
No. Name Ref. page
_0) Disc buttons (DISC 1, DISC 2, DISC 3) 20
Stop button (D) 19
_) Skip/search buttons
( ,_=-/_ , _._/_,_ ,-SKIP/-SEARCH) 21
Only the skip function is available using the remote control
transmitter.
(_ Loading drawer open/close button
(_ OPEN/CLOSE) 19
CD edit buttons
(J.FIT, ALBUM, LAST FADE) 34, 35, 36
(_ Display button (DISPLAY) 20
(_ Random play button (RANDOM) 24
Repeat button (REPEAT) 21
_) Pause button (DD) 19
_) Play button and indicator (D) /9
Cassette deck section
No. Name Ref. page
(_ Deck I cassette holder 26
(_) Deck I cassette holder open button
(_ OPEN) 26
(_) Dolby noise reduction button and
indicators (DOLBY NR) 26
Reverse mode button and indicators
(REVERSE MODE) 26
_[_ Deck l/deck 2 select button and
indicators (DECK 1/2) 26
(_) Deck I cassette holder close button
(CLOSE) 26
Fast forward/rewind/tape program
sensor buttons [<1<1(TPS), (TPS) IH_] 27
(_) Deck 2 cassette holder close button
(CLOSE) 28
Record pause button and indicator
(REC PAUSE) 30
_) One-touch tape edit buttons
(NORMAL, HIGH) 39
(_ Deck 2 cassette holder open button
(_ OPEN) 30
(_) Playback buttons and indicators (<_, D) 26
_) Stop button (M) 26
(_) CCRT button and indicator (CCRT) 30
Deck 2 cassette holder 30
