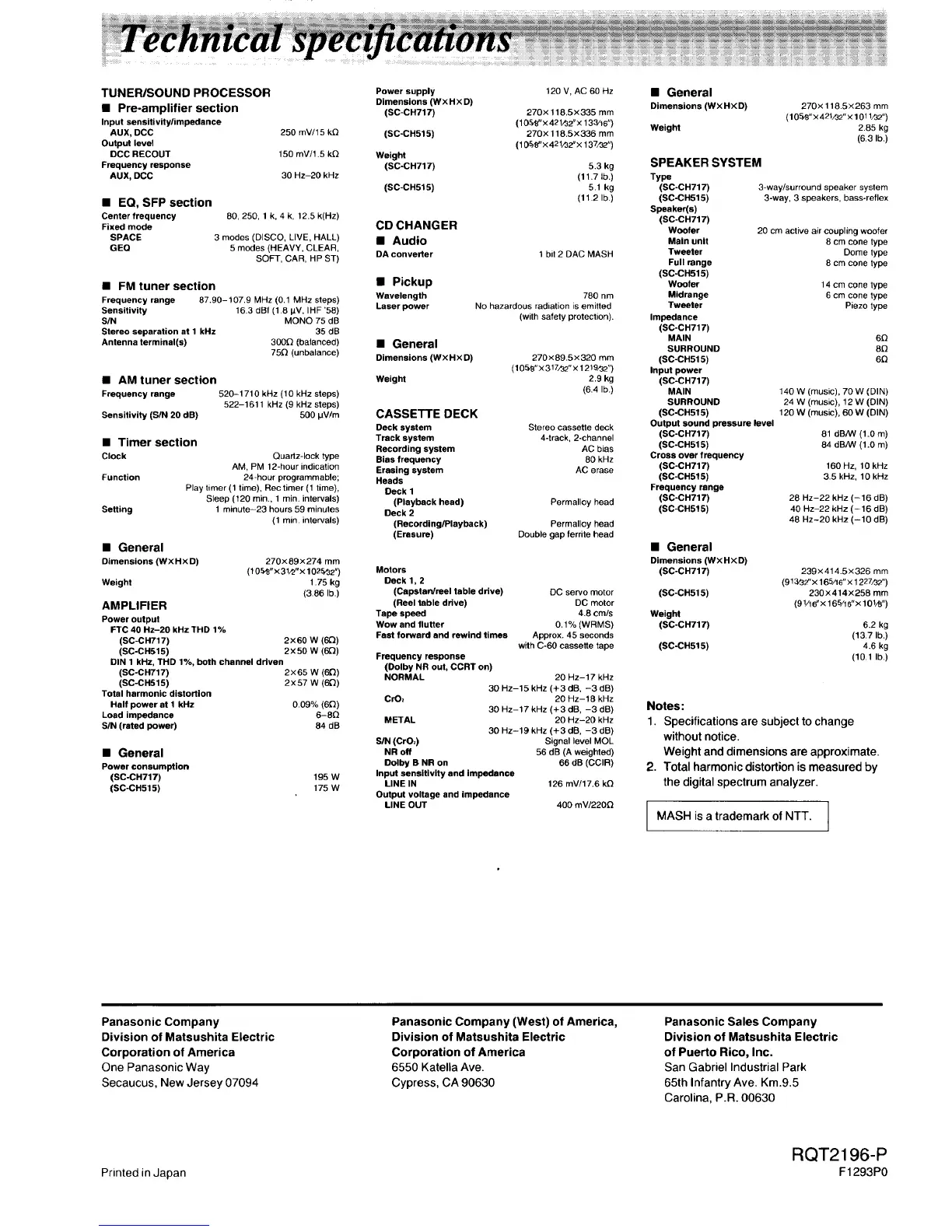

TUNERISOUND PROCESSOR
• Pre-amplifier section
Input sensitivity/impedance
AUX, DCC
Output level
DCC RECOUT
Frequency response
AUX, DCC
250 mV/15 k_
150 mV/1.5 k_
30 Hz-20 kHz
• EQ, SFP section
Center frequency
Fixed mode
SPACE
GEQ
80, 250, 1 k, 4 k, 12.5 k(Hz)
3 modes (DISCO, LIVE, HALL)
5 modes (HEAVY, CLEAR,
SOFT, CAR, HP ST)
• FM tuner section
Frequency range 87.90-107.9 MHz (0.1 MHz steps)
Sensitivity 16.3 dBf (1.8 gV, IHF '58)
S/N MONO 75 dB
Stereo separation at 1 kHz 35 dB
Antenna terminal(s) 300_ (balanced)
75_ (unbalance)
• AM tuner section
Frequency range 520-1710 kHz (10 kHz steps)
522-1611 kHz (9 kHz steps)
Sensitivity (SIN 20 riB) 500 !JV/m
• Timer section
Clock Quartz-lock type
AM, PM 12-hour indication
Function 24-hour programmable;
Play timer (1 time), Rec timer (1 time),
Sleep (120 rain., 1 rain. intervals)
Setting 1 minute-23 hours 59 minutes
(1 min. intervals)
• General
Dimensions (WXHX D) 270x8gx274 mm
(105/8"X 31/2"X 1025/32")
Weight 1.75 kg
(3.86 lb.)
AMPLIFIER
Power output
FTC 40 Hz-20 kHz THD 1%
(SC-CH717) 2x60 W (6_)
(SC-CH515) 2x50 W (6_)
DIN 1 kHz, THD 1%, both channel driven
(SC-CH717) 2x65 W (6_)
(SC-CH515) 2x57 W (6_)
Total harmonic distortion
Half power at 1 kHz 0.09% (6_)
Load impedance 6-8_
SIN (rated power) 84 dB
• General
Power consumption
(SC-CH717) 195 W
(SC-CH515) 175 W
Power supply
Dimensions (Wx H x D)
(SC-CH717)
(SC-CH515)
Weight
(SC-CH717)
(SC-CH515)
CD CHANGER
• Audio
DA converter
• Pickup
Wavelength
Laser power
120v, AC60Hz • General
270x 118.5x335 mm Dimensions (WXHXD) 270x 118.5×263 mm
( 10.5/8"x 421_32"x t 011/32")
(105_'x421/32"x 133/16") Weight 2.85 kg
270x 118.5x336 mm
(105/8"x 421/32"x 137/32") (6.3 Ib.)
5.3 kg
(11.7 lb.)
5.1 kg
(11.2 lb.)
1 bit 2 DAC MASH
780 nm
No hazardous radiation is emitted
(with safety protection).
• General
Dimensions (WXHXD) 270x89.Sx320 mm
( 105_" x 317/32"x 1219/32")
Weight 2.9 kg
(6.4 lb.)
CASSETTE DECK
Deck system Stereo cassette deck
Track system 4-track, 2-channel
Recording system AC bias
Bias frequency 80 kHz
Erasing system AC erase
Heads
Deck 1
(Playback head) Permalloy head
Deck 2
(Recording/Playback) Permalloy head
(Erasure) Double gap fertile head
Motors
Deck 1, 2
(Capstan/reel table drive) OC servo motor
(Reel table drive) DC motor
Tape speed 4.8 cm/s
Wow and flutter 0.1% (WRMS)
Fast forward and rewind times Approx. 45 seconds
with C-60 cassette tape
Frequency response
(Dolby NR out, CCRT on)
NORMAL 20 Hz-17 kHz
30 Hz-15 kHz (+3 dB, -3 dB)
CrO= 20 Hz-18 kHz
30 Hz-17 kHz (+3 dB, -3 dB)
METAL 20 Hz-20 kHz
30 Hz-19 kHz (+3 dB, -3 dB)
SIN (CrO,) Signal level MOL
NR off 56 dB (A weighted)
Dolby B NR on 66 dB (CCIR)
Input sensitivity and Impedance
LINE IN 126 mV/17.6 k_
Output voltage and impedance
LINE OUT 400 mV/220Q
SPEAKER SYSTEM
Type
(SC-CH717) 3-way/surround speaker system
(SC-CH515) 3-way, 3 speakers, bass-reflex
Speaker(s)
(SC-CH717)
Woofer 20 cm active air coupling woofer
Main unit 8 cm cone type
Tweeter Dome type
Full range 8 cm cone type
(SC-CH515)
Woofer 14 cm cone type
MIdrange 6 cm cone type
Tweeter Piezo type
Impedance
(SC-CH717)
MAIN 6Q
SURROUND 8Q
(SC-CH515) 6Q
Input power
(SC-CH717)
MAIN 140 W (music), 70 W (DIN)
SURROUND 24 W (music), 12 W (DIN)
(SC-CH515) 120 W (music), 60 W (DIN)
Output sound pressure level
(SC-CH717) 81 dB/W (1.0 m)
(SC-CH515) 84 dB/W (1.0 m)
Cross over frequency
(SC-CH717) 160 Hz, 10 kHz
(SC-CH5f5) 3.5 kHz, 10 kHz
Frequency range
(SC-CH717) 28 Hz-22 kHz (-16 dB)
(SC-CH5f5) 40 Hz-22 kHz (-16 dB)
48 Hz-20 kHz (-10 dB)
• General
Dimensions (WX HX D)
(SC-CH717)
(SC-CH5t5)
Weight
(SC-CH717)
(SC-CH515)
239x 414.5x326 mm
(913'32_'x 165/16" x 1227/32")
230×414×258 mm
(91/1d'x165/16"xlOl/8")
6.2 kg
(13.7 lb.)
4.6 kg
(10.1 lb.)
Notes:
1. Specifications are subject to change
without notice.
Weight and dimensions are approximate.
2. Total harmonic distortion ismeasured by
the digital spectrum analyzer.
L MASH is a trademark of NTT. 1
Panasonic Company
Division of Matsushita Electric
Corporation of America
One Panasonic Way
Secaucus, New Jersey 07094
Panasonic Company (West) of America,
Division of Matsushita Electric
Corporation of America
6550 Katella Ave.
Cypress, CA 90630
Panasonic Sales Company
Division of Matsushita Electric
of Puerto Rico, Inc.
San Gabriel Industrial Park
65th Infantry Ave. Km.9.5
Carolina, P.R. 00630
RQT2196-P
Printed in Japan F1293P0
