22
6.2. Disassembly flow chart
Note for assembly and disassembly
• Replace the PCB, etc. from the bottom cover side.

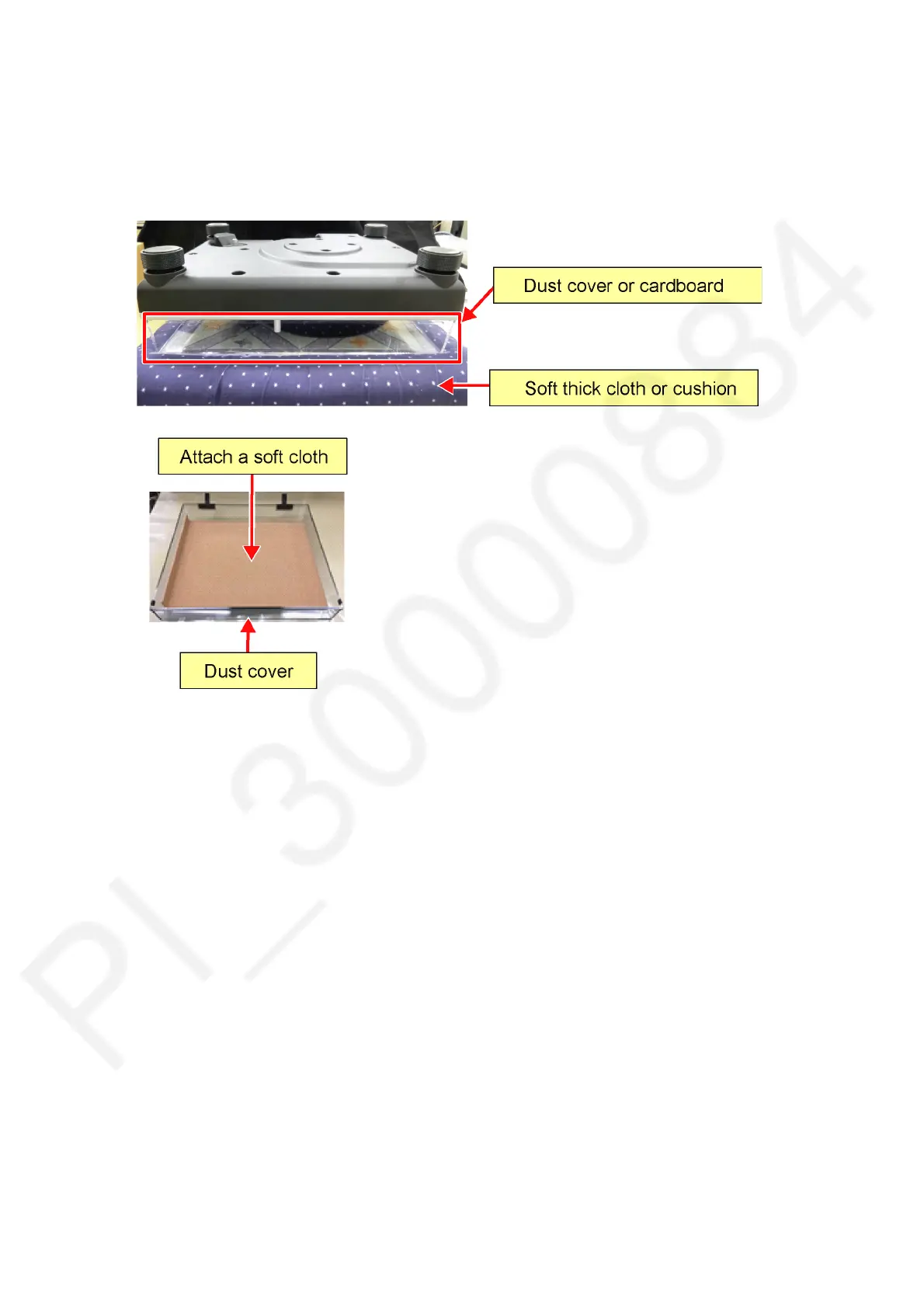

• When turning the unit over, be sure to close the dust cover or put a cardboard as a base, and place the unit on a soft thick cloth
or cushion, etc, to prevent cracking.
• When removing the DC motor unit and tone arm unit, be sure to attach a soft cloth inside the dust cover beforehand to prevent
cracking.
To Next Page
