25

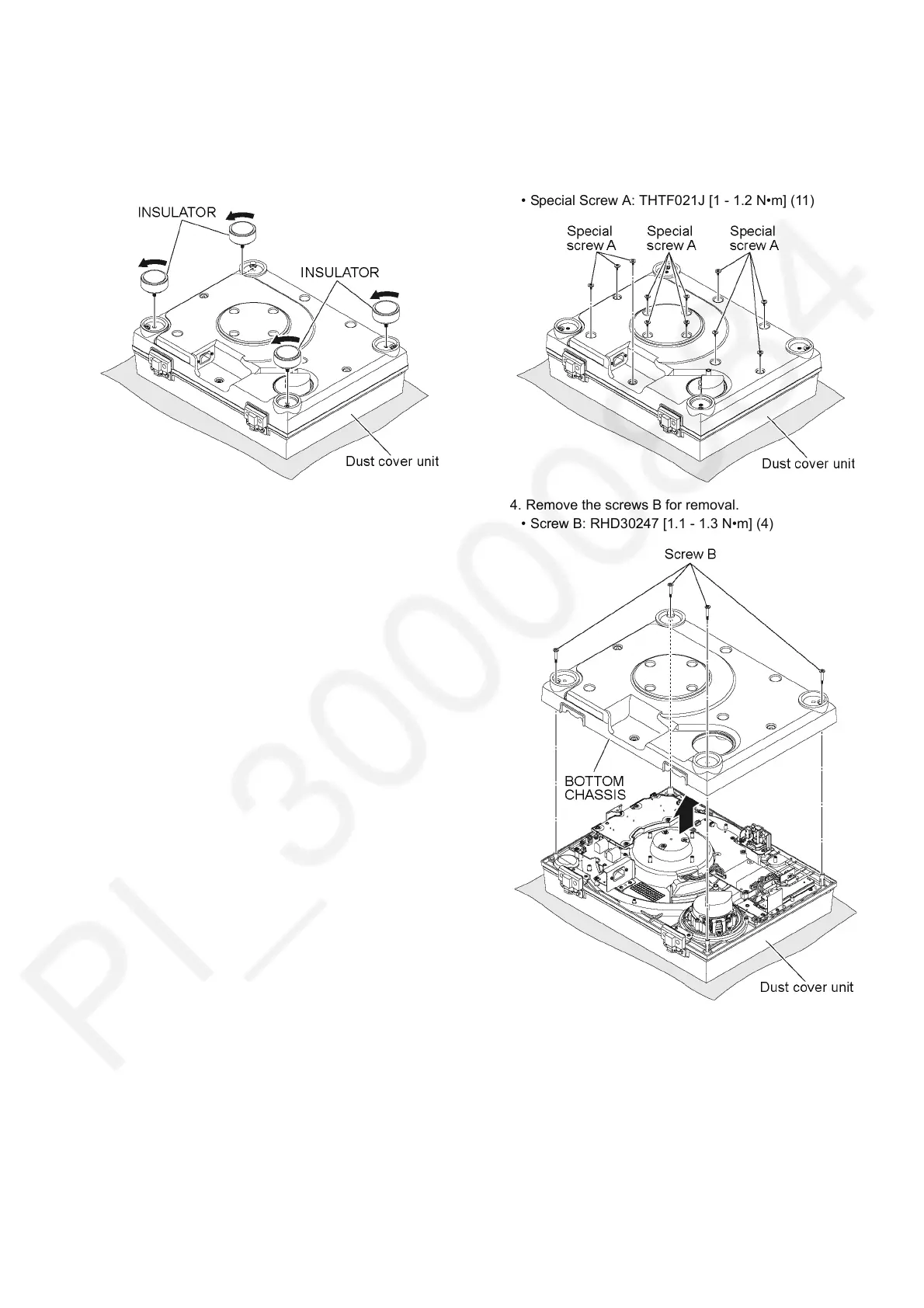

6.5. INSULATORS
1. Remove the T/T RUBBER MAT and TURNTABLE UNIT.
(See 6.3. T/T RUBBER MAT, TURNTABLE UNIT, step1.)
2. Upset the unit, and then put the dust cover unit.
3. Turn the INSULATORS in the direction of arrow, and then
remove them (4 points).
6.6. BOTTOM CHASSIS
1. Remove the T/T RUBBER MAT and TURNTABLE UNIT.
(See 6.3. T/T RUBBER MAT, TURNTABLE UNIT, step1.)
2. Remove the INSULATORS.
(See 6.5. INSULATORS, step2 and 3.)
3. Remove the screws A for removal.
• Special Screw A: THTF021J [1 - 1.2 N•m] (11)
4. Remove the screws B for removal.
• Screw B: RHD30247 [1.1 - 1.3 N•m] (4)
