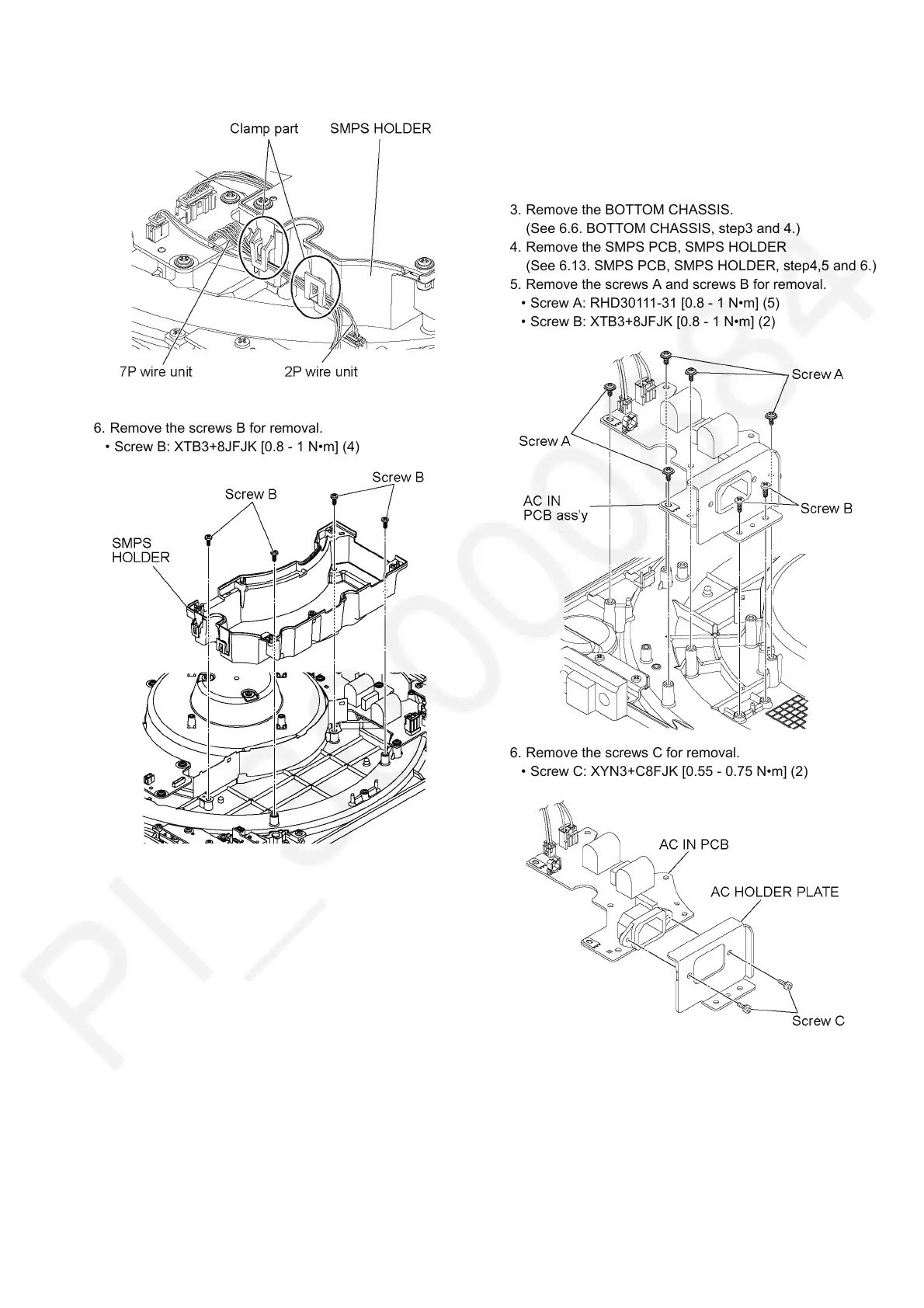

5. Remove the 2P wire unit and 7P wire unit from clamp part
(2 points) of SMPS HOLDER.
6. Remove the screws B for removal.
• Screw B: XTB3+8JFJK [0.8 - 1 N•m] (4)
6.14. AC IN PCB, AC HOLDER
PLATE
1. Remove the T/T RUBBER MAT and TURNTABLE UNIT.
(See 6.3. T/T RUBBER MAT, TURNTABLE UNIT, step1.)
2. Remove the INSULATORS.
(See 6.5. INSULATORS, step2 and 3.)
3. Remove the BOTTOM CHASSIS.
(See 6.6. BOTTOM CHASSIS, step3 and 4.)
4. Remove the SMPS PCB, SMPS HOLDER
(See 6.13. SMPS PCB, SMPS HOLDER, step4,5 and 6.)
5. Remove the screws A and screws B for removal.
• Screw A: RHD30111-31 [0.8 - 1 N•m] (5)
• Screw B: XTB3+8JFJK [0.8 - 1 N•m] (2)
6. Remove the screws C for removal.
• Screw C: XYN3+C8FJK [0.55 - 0.75 N•m] (2)
