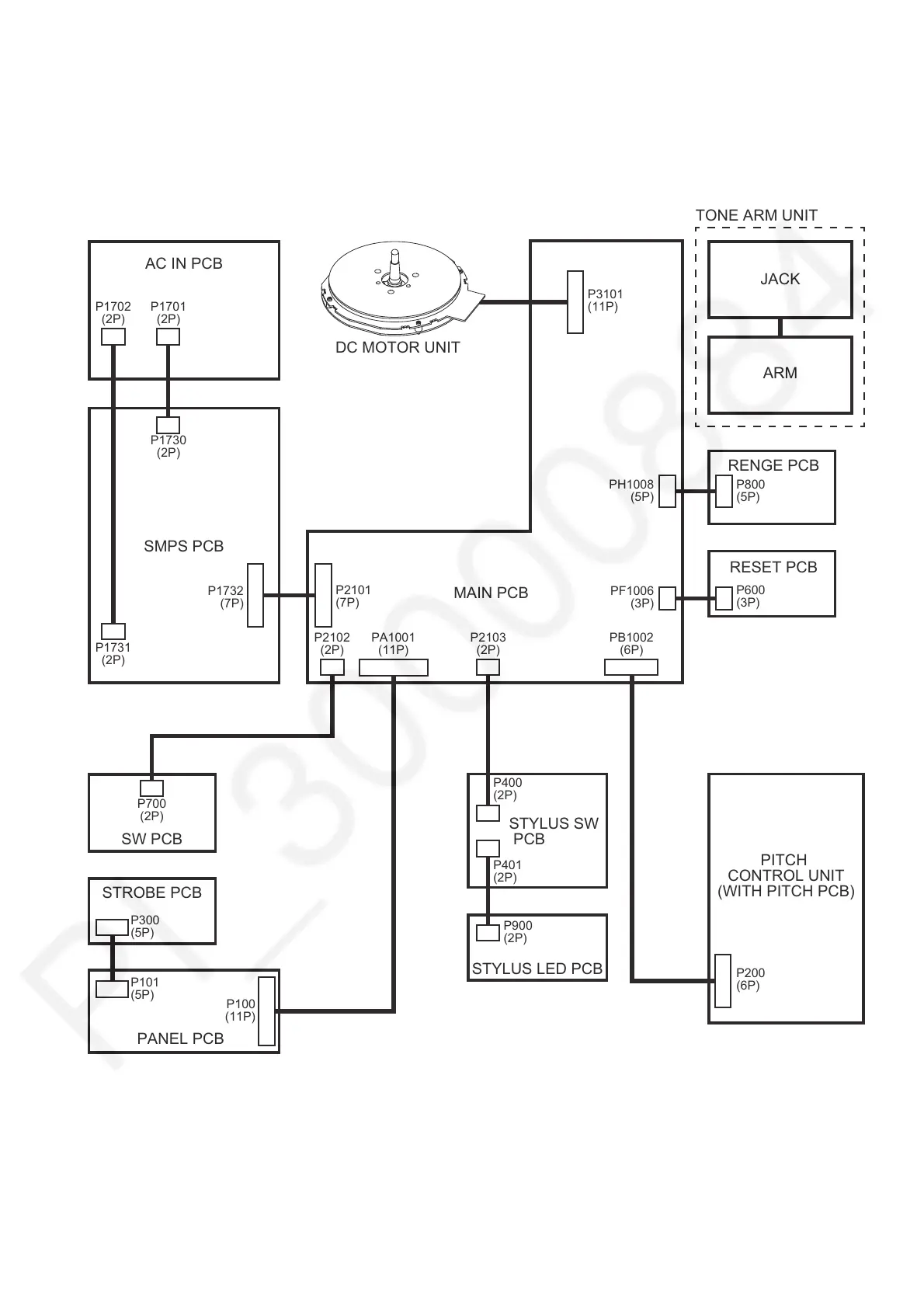

10 Wiring Connection Diagram
AC IN PCB
SMPS PCB
MAIN PCB
DC MOTOR UNIT
SW PCB
STYLUS SW
PCB
STYLUS LED PCB
PITCH
CONTROL UNIT
(WITH PITCH PCB)
RESET PCB
RENGE PCB
ARM
JACK
TONE ARM UNIT
STROBE PCB
PANEL PCB
P1702
(2P)
P1731
(2P)
P700
(2P)
P300
(5P)
P400
(2P)
P2101
(7P)
P200
(6P)
P600
(3P)
P800
(5P)
P3101
(11P)
PH1008
(5P)
PF1006
(3P)
P401
(2P)
P900
(2P)
P101
(5P)
P100
(11P)
P1701
(2P)
PB1002
(6P)
P2103
(2P)
PA1001
(11P)
P2102
(2P)
P1730
(2P)
P1732
(7P)
