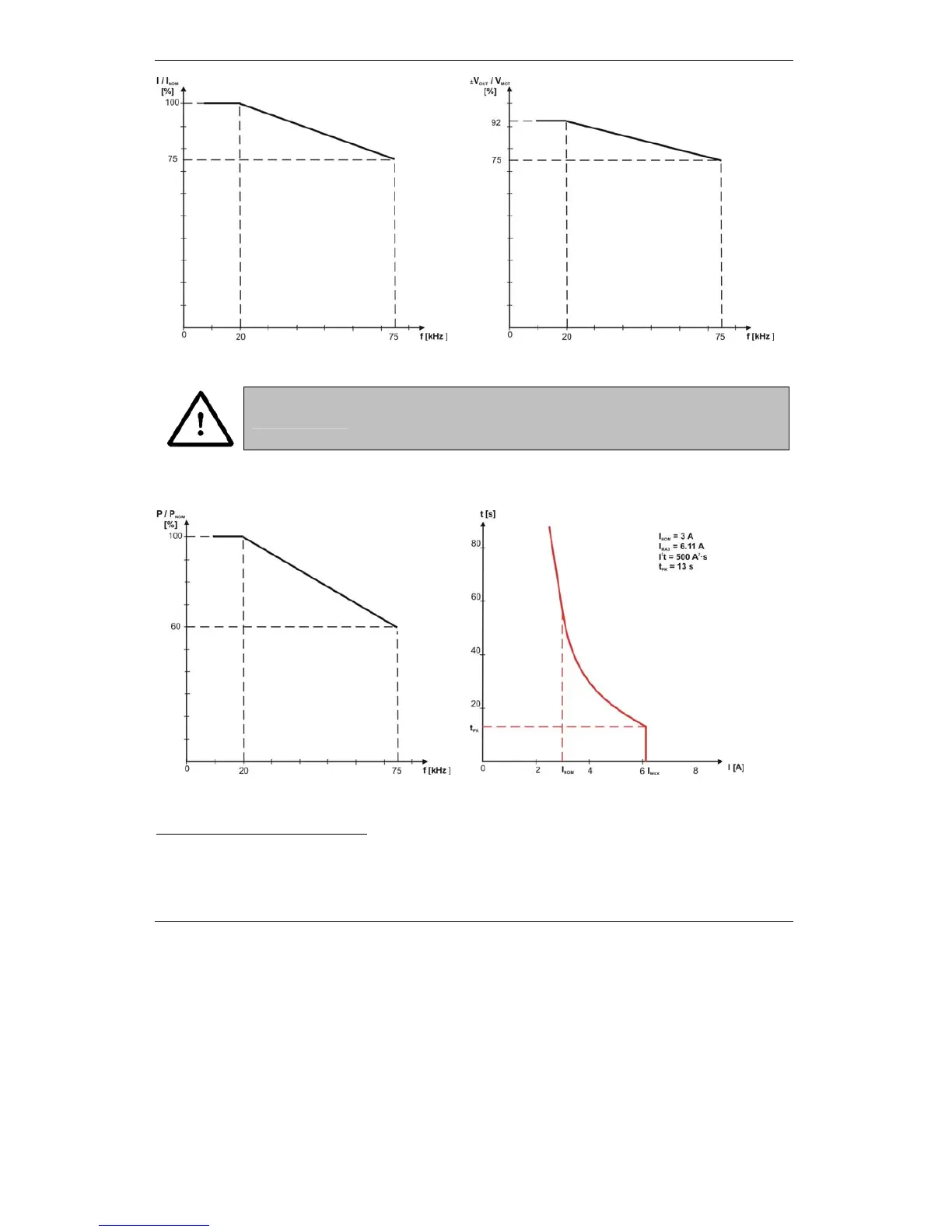

Figure 2. 14. Current De-rating with PWM
frequency
Figure 2.15. Output Voltage De-rating with PWM
frequency
15
CAUTION!
For PWM frequencies less than 20kHz, correlate the
PWM frequency with the motor parameters in order to
avoid possible motor damage.
Figure 2.16. Power De-rating with PWM
frequency
16
Figure 2.17. Over-current diagram
15
V
OUT
– the output voltage, V
MOT
– the motor supply voltage
16
P
NOM
– the nominal power
