© Technosoft 2007 33 IBL2403 Technical Reference
3.2.9.5 Linear Hall Auto-Setup connection
5
GND
+3.3V
B- / LH2
C- / LH3
14
Linear Hall Auto-Setup
connection
IBL2403
v1.1
MotionChip
TM
+5V
OUT
J2
12
+5V
Internally
generated
3 x 10K
3 x 20K
3 x 22nF
13
A- / LH1
6
Hall1
+3.3V
1K
1K
+5V

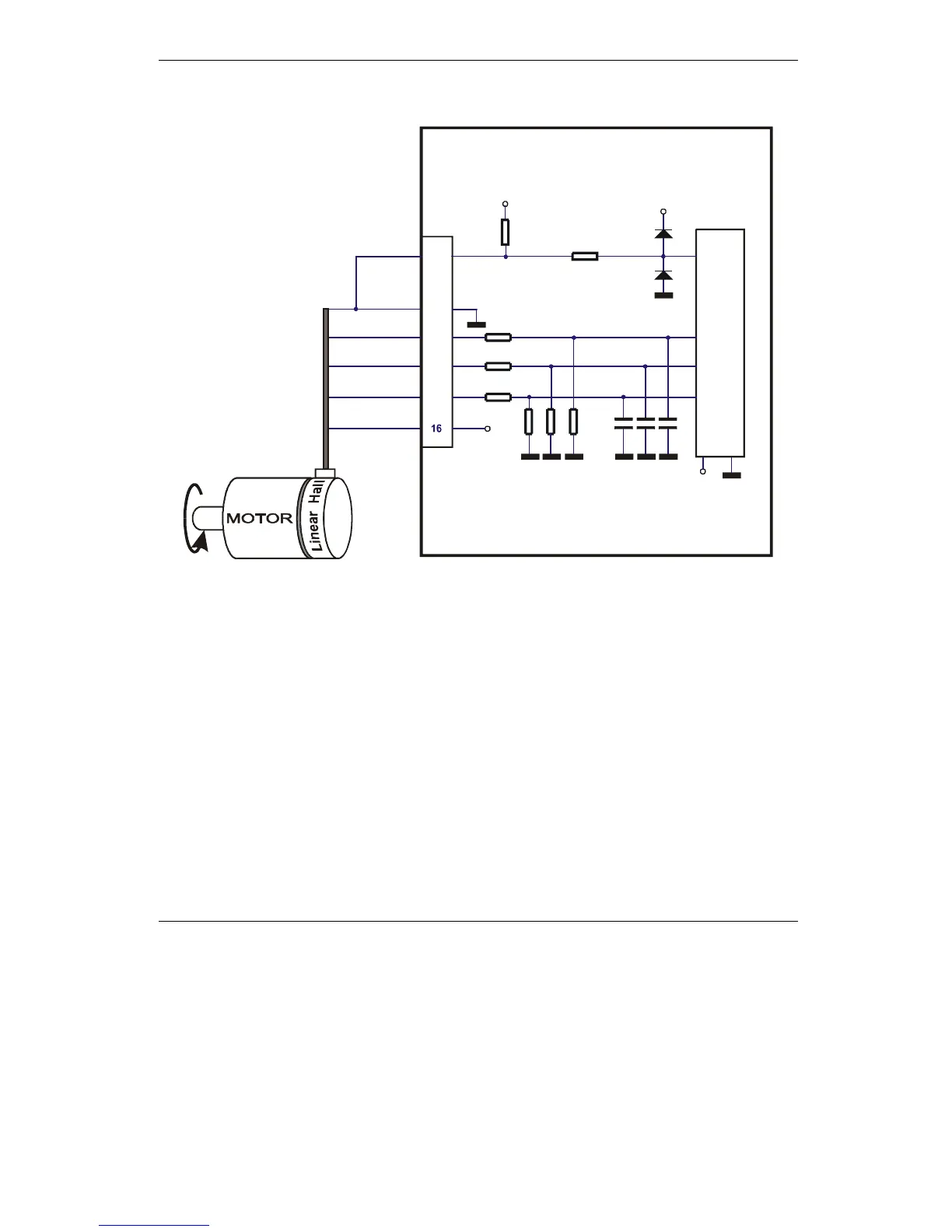

Figure 3.19. Linear Hall Auto-Setup connection
3.2.9.6 Recommendations for wiring
a) Always connect both positive and negative signals when the encoder or the Hall sensors
are differential and provides them. Use one twisted pair for each differential group of
signals as follows: Enc A+ with A-/LH1, Enc B+ with B-/LH2, Enc Z+ with Z-/LH3. Use
another twisted pair for the 5V supply and GND.
b) Always use shielded cables to avoid capacitive-coupled noise when using single-ended
encoders or Hall sensors with cable lengths over 1 meter. Connect the cable shield to the
GND, at only one end. This point could be either the IBL2403 (using the GND pin) or the
encoder / motor. Do not connect the shield at both ends.
c) If the IBL2403 5V supply output is used by another device (like for example an encoder)
and the connection cable is longer than 5 meters, add a decoupling capacitor near the
supplied device, between the +5V and GND lines. The capacitor value can be 1...10 μF,
rated at 6.3V.
