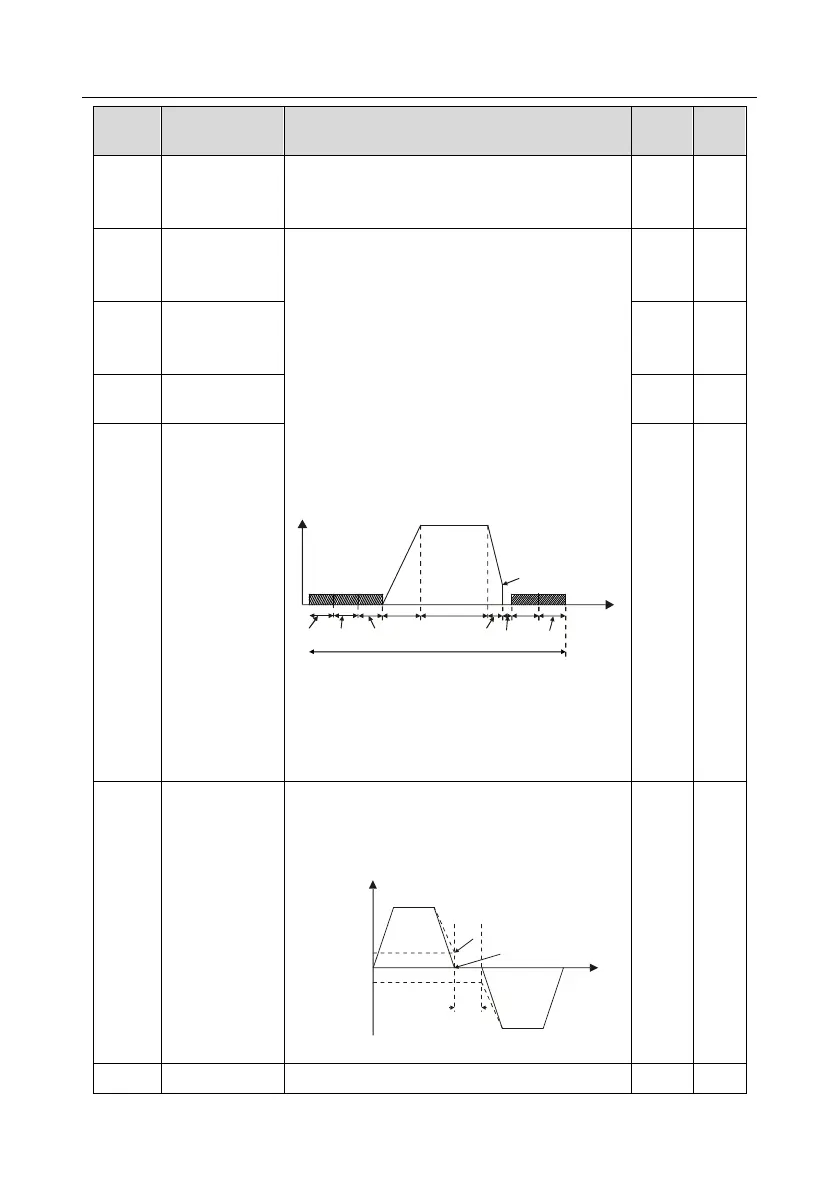

TD350 Series VFD Function parameter list
-137-
Function
code
Name
Detailed parameter description
Default
value
Modify
1: Coast to stop; after stop command is valid, the
VFD stops output immediately, and the load coasts
to stop as per mechanical inertia.
P01.09
Starting
frequency of DC
brake after stop
Starting frequency of DC brake after stop; during
decelerating to stop, when this frequency is
reached, DC brake will be performed after stop.
Demagnetization time (waiting time of DC brake
after stop): Before the DC brake, the VFD will block
output, and after the demagnetization time elapses,
DC brake will start. This function is used to prevent
overcurrent fault caused by DC brake during high
speed.
DC brake current after stop: it means the DC brake
force applied, the larger the current, the stronger
the DC brake effect.
P01.04
Acceleration
P13.14
P01.23
Constant speed
In running
Deceleration
P01.10
P13.15
P01.12
P01.09
Time t
Setting range of P01.09: 0.00Hz–P00.03 (Max.
output frequency)
Setting range of P01.10: 0.00–30.00s
Setting range of P01.11: 0.0–100.0%
Setting range of P01.12: 0.0–50.0s
0.00Hz
○
P01.10
Waiting time of
DC brake after
stop
0.00s
○
P01.11
DC brake current
of stop
0.0%
○
P01.12
DC brake time of
stop
0.00s
○
P01.13
Deadzone time of
forward/reverse
rotation
This function code refers to the transition time of the
threshold set by P01.14 during setting
forward/reverse rotation of the VFD, as shown
below.
Output frequency f
Forward
Reverse
Deadzone
time
Time t
Starting
frequency
Switch over after
zero frequency
Switch over after
starting frequency
Setting range: 0.0–3600.0s
0.0s
○
P01.14
Forward/reverse
0: Switch over after zero frequency
0
◎
