4.2.6 Vertical installation
Cold
Hot
air
air
Cold
Hot
air
air
Windshield
Windshield

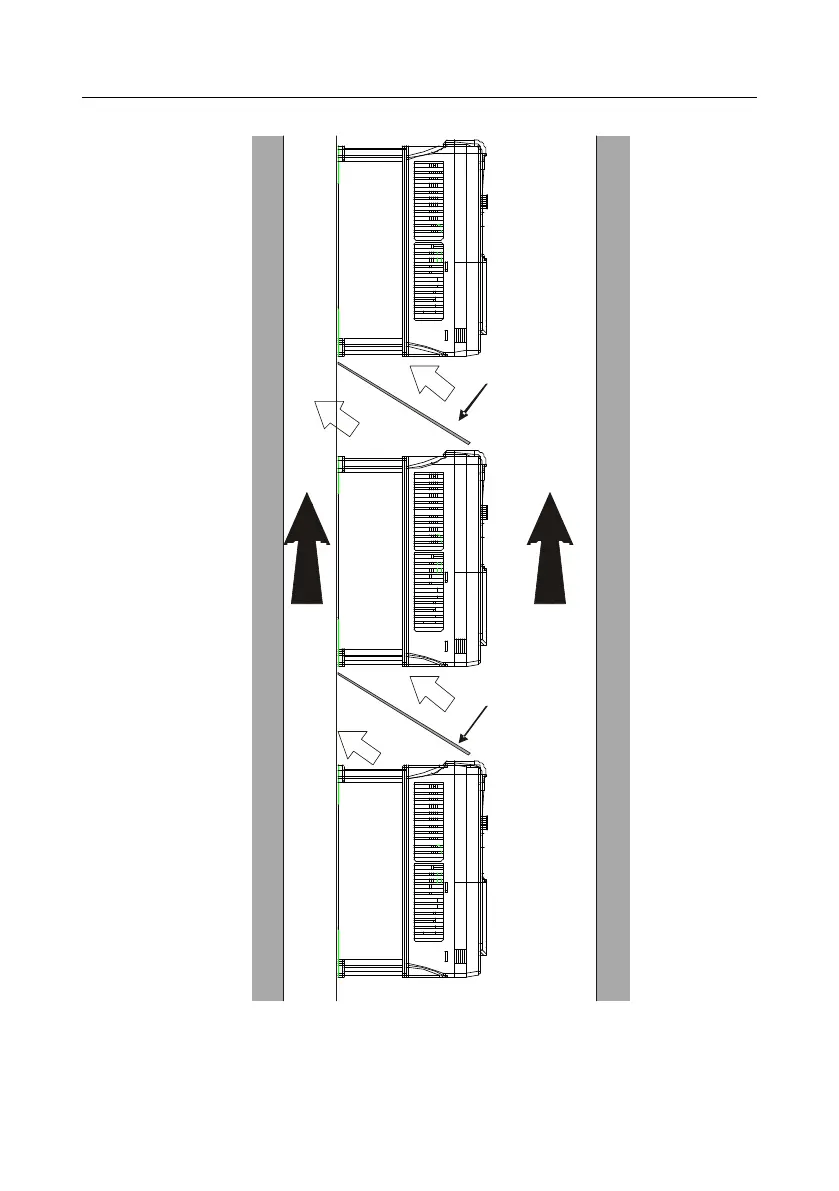

Fig 4.5 Vertical installation
Note: During vertical installation, users must install windshield, otherwise, the VFD will experience
mutual interference, and the heat dissipation effect will be degraded.
