TD350 Series VFD Installation guidelines
-22-
4.2.7 Tilted installation
Cold
air
Cold
air
Hot
air
Hot
air
Cold
air
Hot
air

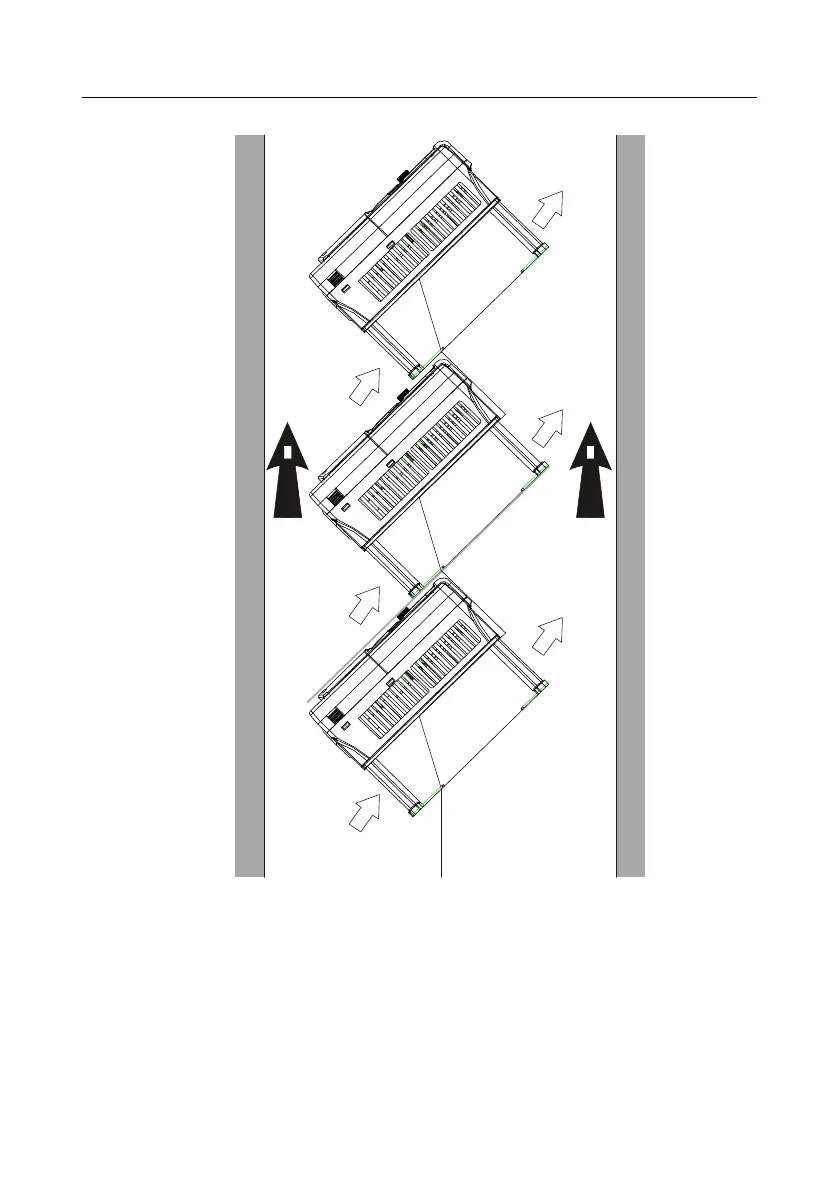

Fig 4.6 Tilted installation
Note: During tilted installation, it is a must to ensure the air inlet duct and air outlet duct are separated
from each other to avoid mutual interference.
