TD350 Series VFD Installation guidelines
-26-

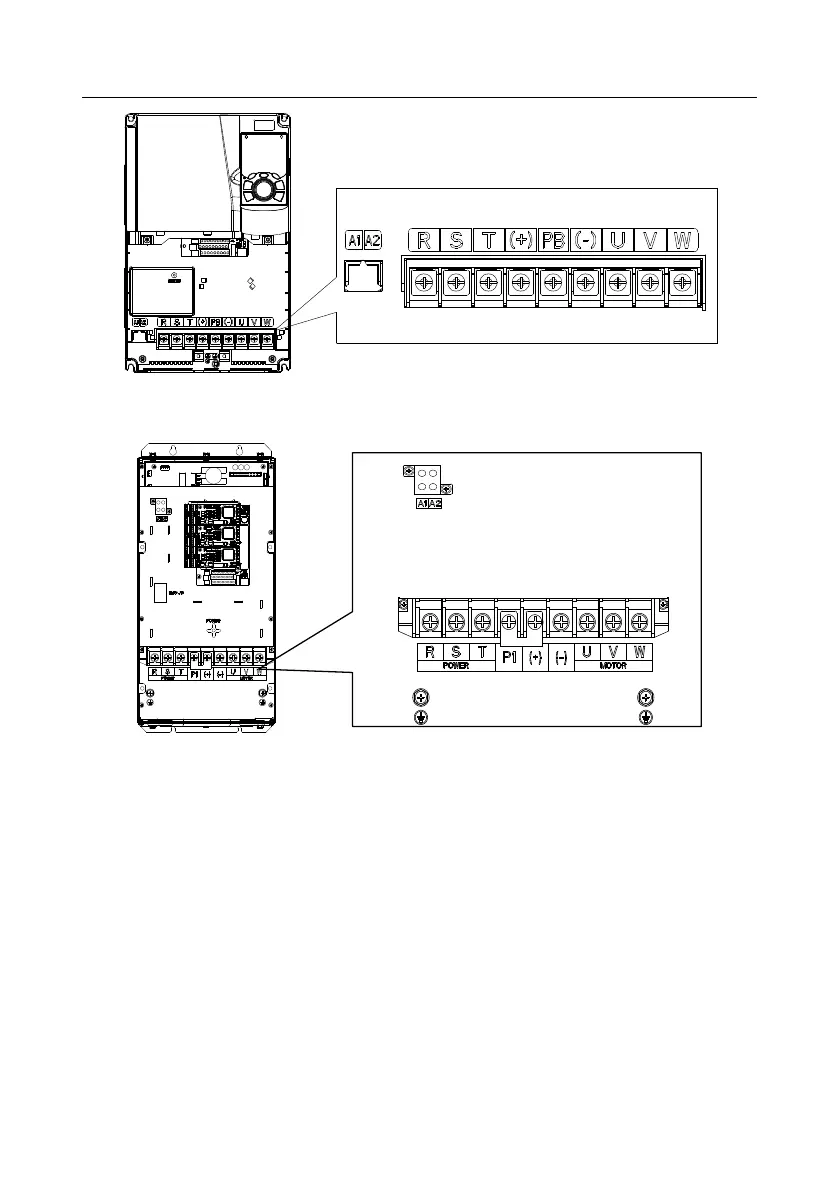

Fig 4.15 Terminals of main circuit for the VFDs of 220V 11–15kW and 460V 22–30kW
Fig 4.16 Terminals of main circuit for the VFDs of 220V 18.5–30kW, 460V 37–55kW, and 575V 22–
37kW
