TD350 Series VFD Installation guidelines
-25-

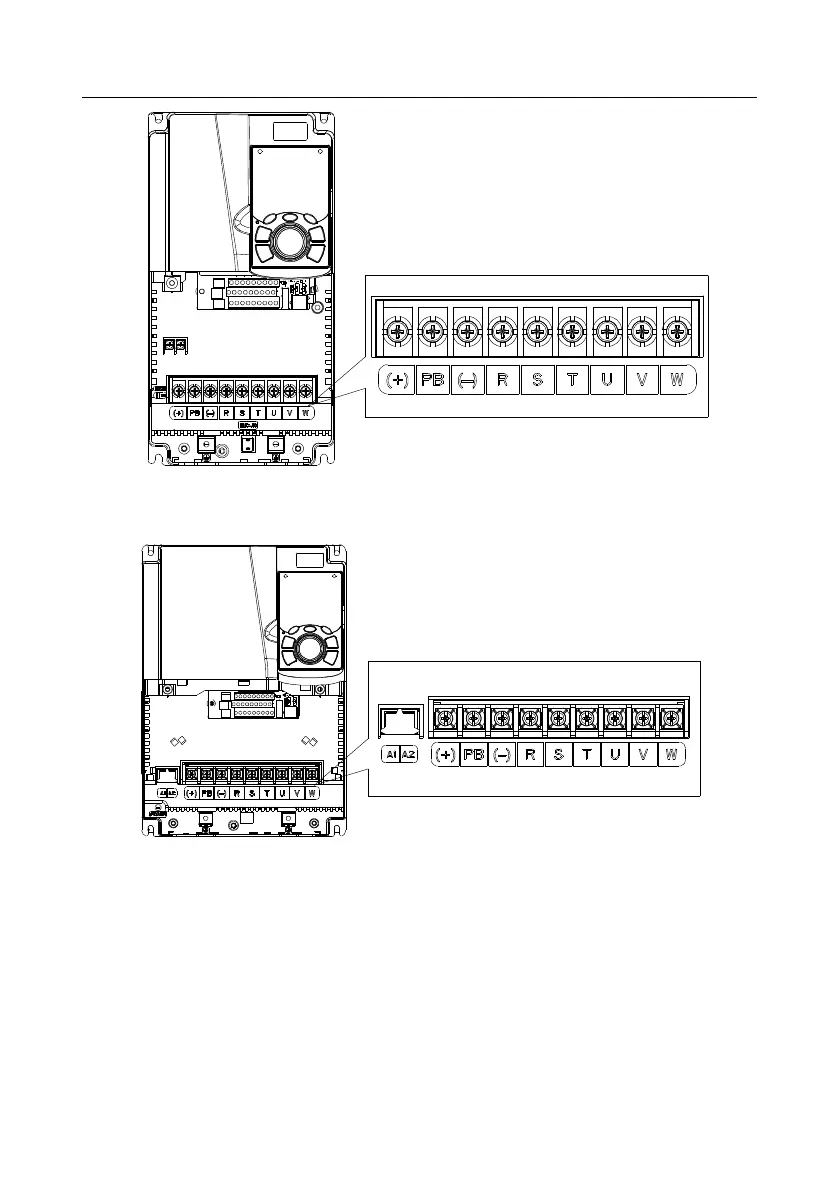

Fig 4.13 Terminals of main circuit for the VFDs of 220V 4–5.5kW, 460V 7.5–11Kw, and 575V 4–
7.5kW
Fig 4.14 Terminals of main circuit for the VFDs of 220V 7.5kW, 460V 15–18.5kW, and 575V 11–
18.5kW
