TECHNICAL AND MAINTENANCE MANUAL
Graph VENTILATOR
Review : 04
Date:
09/05/06
41
How to Open and Close the Neumovent Graph Ventilator
Operation
Description
20

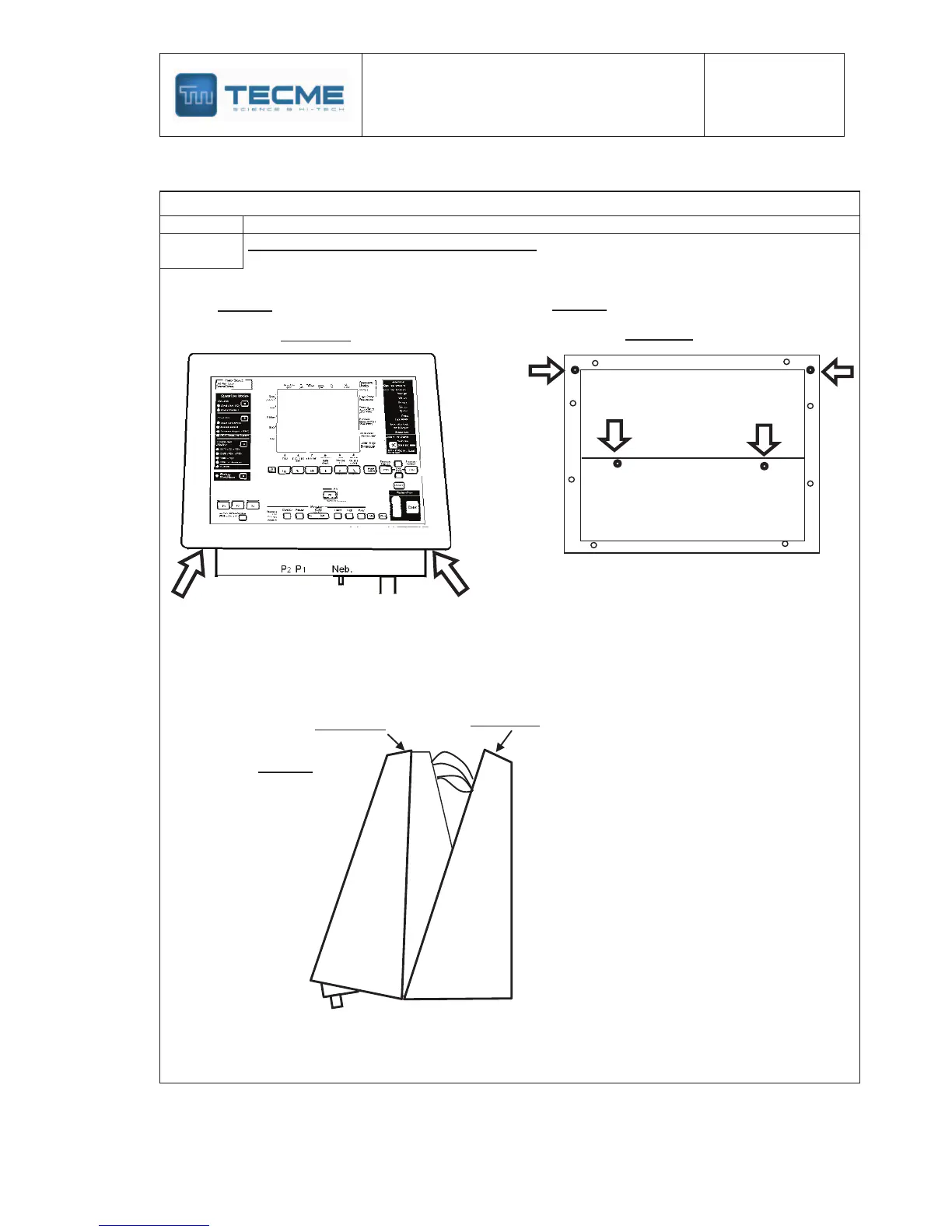

Separation Back Cabinet – Front Cabinet:
- Remove the screws indicated with arrows in Fig.:2-A-B.
- Disconnect the cables as indicated under operation 30:
Front View
Rear View
Fig.:2-A
Fig.:2-B
Fig.:2-C
Front Cabinet
Rear Cabinet
