Tecme NEUMOVENT - Separation Front Cabinet - Back Cabinet, Electrical Part

TECHNICAL AND MAINTENANCE MANUAL
Graph VENTILATOR
Review : 04
Date:
09/05/06
42
How to Open and Close the Neumovent Graph Ventilator
Operation
Description
30

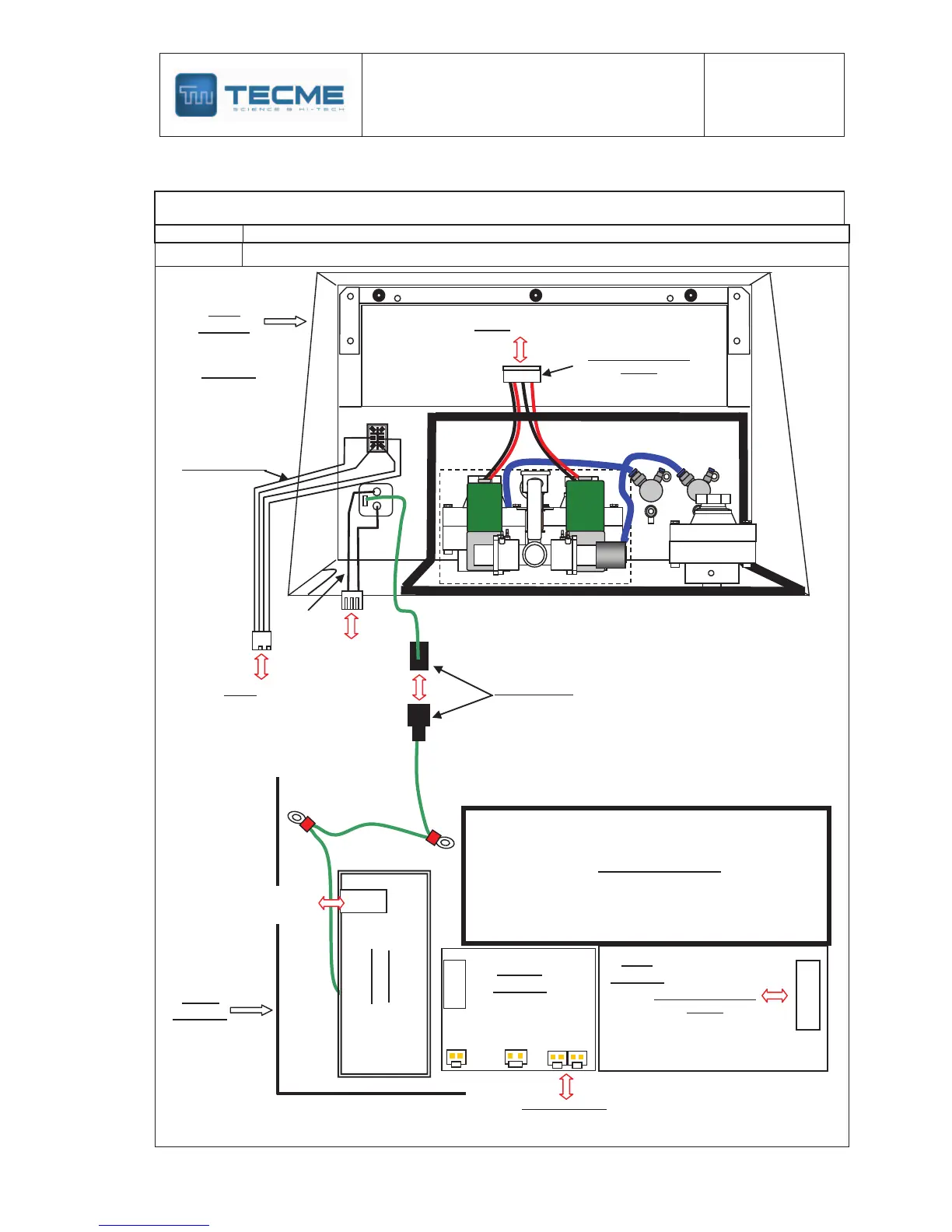

Separation Front Cabinet – Back Cabinet, electrical part
To Con 7 of Ancil Board
To power source
Ground Cables
PNEUMATIC BOX
CPU
BOARD
Con.14
ANCIL
BOARD
Con.3
Con.7
Con.6
Con.5
ON-OFF Cables
POWER
SOUCE
Proportional Valves
Cables
AC Cable
Front
Gabinet
ON-OFF Cables
Proportional Valves
Cables
AC Cable
Back
Gabinet
To Con14 of CPU Board
Fig.:3-A
