Tecme NEUMOVENT - Component Assembly Diagrams

TECHNICAL AND MAINTENANCE MANUAL
Graph VENTILATOR
Review : 04
Date:
09/05/06
54

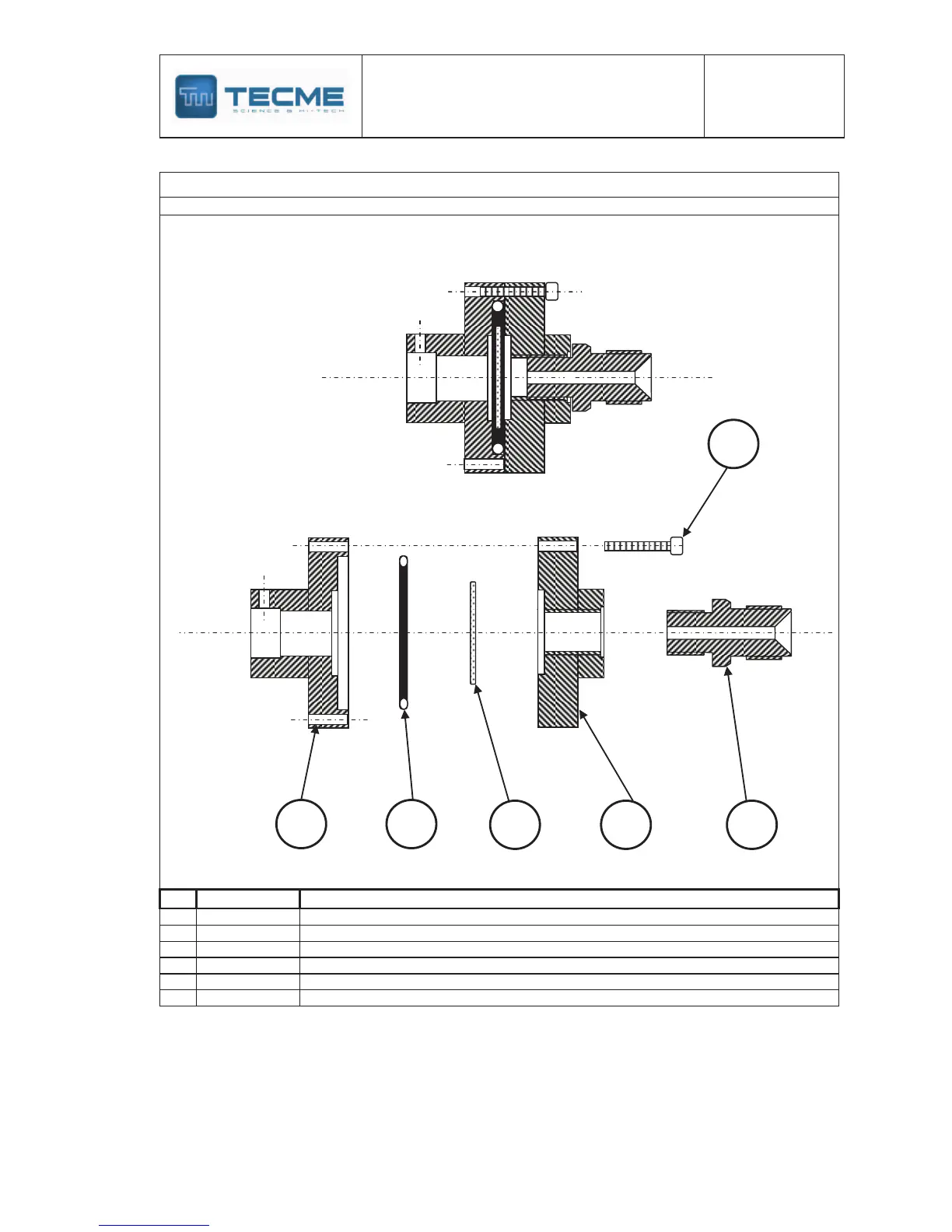

ASSEMBLY DETAILS
Code:1782 A1V Name: Oxygen inlet
No.
CODE
DESCRIPTION
1
1782 M1V
IMP. GAS INLET, BODY WITH 6 HOLES
2
1781 M1V
IMP. GAS INLET, BODY
3
319 M2V
9/16 CONNECTOR
4
206 C1V
POROUS METAL FILTER
5
207 C0V
2120 O´RING
6
1199 M1T
M4x0.7x8 SCREW
6
1
5
4
5
2
