Tecme NEUMOVENT - Pneumotacograph and Proportional Valve Assemblies

TECHNICAL AND MAINTENANCE MANUAL
Graph VENTILATOR
Review : 04
Date:
09/05/06
60

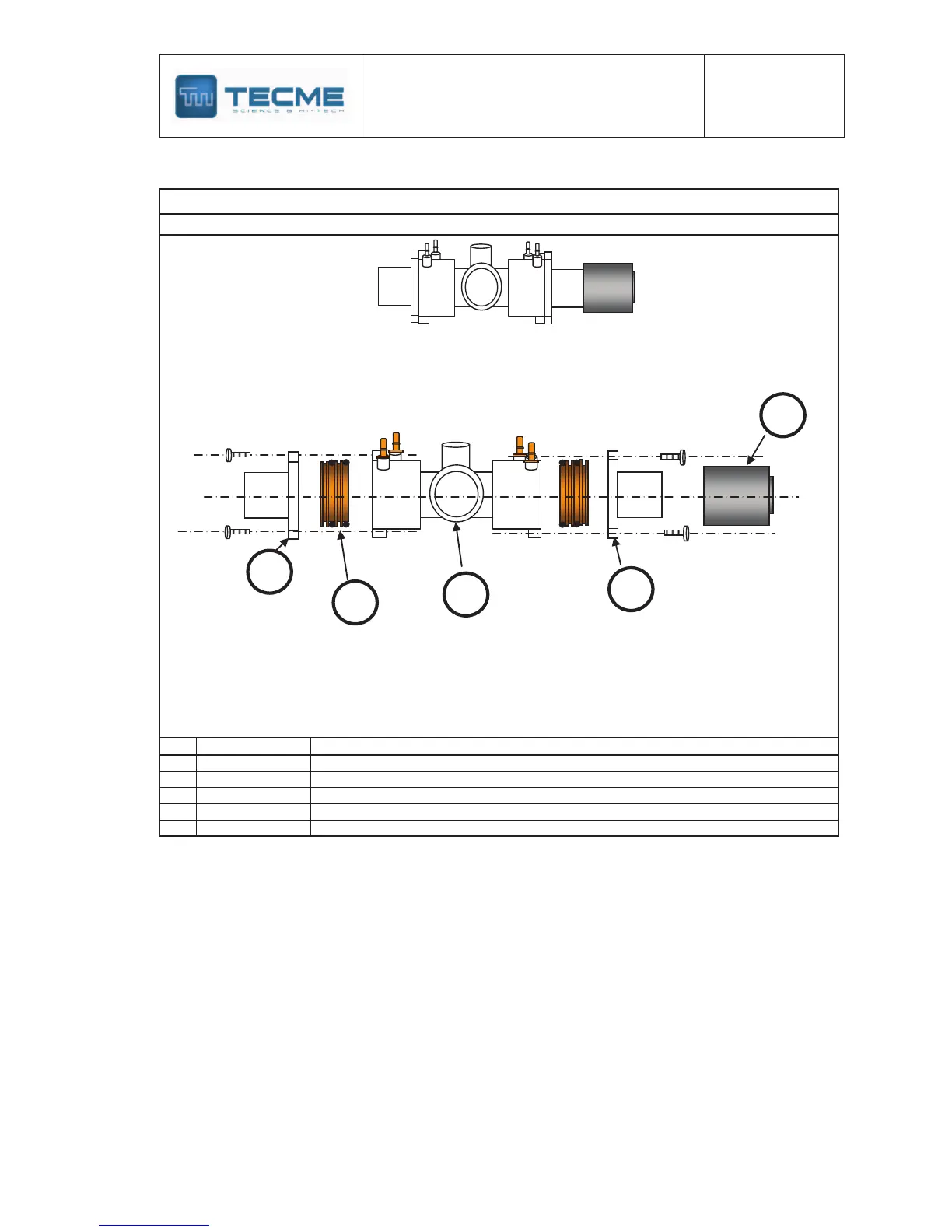

ASSEMBLY DETAILS
Code: 2294-A1V Name: Pneumotacograph
N°
CÓDIGO
DESIGNACIÓN
1
2781-M1V
Left cover
2
2453-A1V
Mesh holder
3
2772-M1V
Pneumotacograph body
4
2773-A1V
Right cover
5
2493-A1V
Safety valve
2
1
3
4
5
