Tecme NEUMOVENT - Removal of Shield - Front Cabinet

TECHNICAL AND MAINTENANCE MANUAL
Graph VENTILATOR
Review : 04
Date:
09/05/06
52
How to Open and Close the Neumovent Graph Ventilator
Operation
Description
100
Removal of Shield- Front Cabinet
1- Remove the washer screws and foam filler.
2-
Do not remove the hexagonal fillers since they do not hold the panel.
3-
Remove the nuts which hold the flanges, and finally remove the flanges an
d white head
screws.
- The panel can be now removed. Proceed with extreme care since it is attached to the cabinet
with silicone sealer.

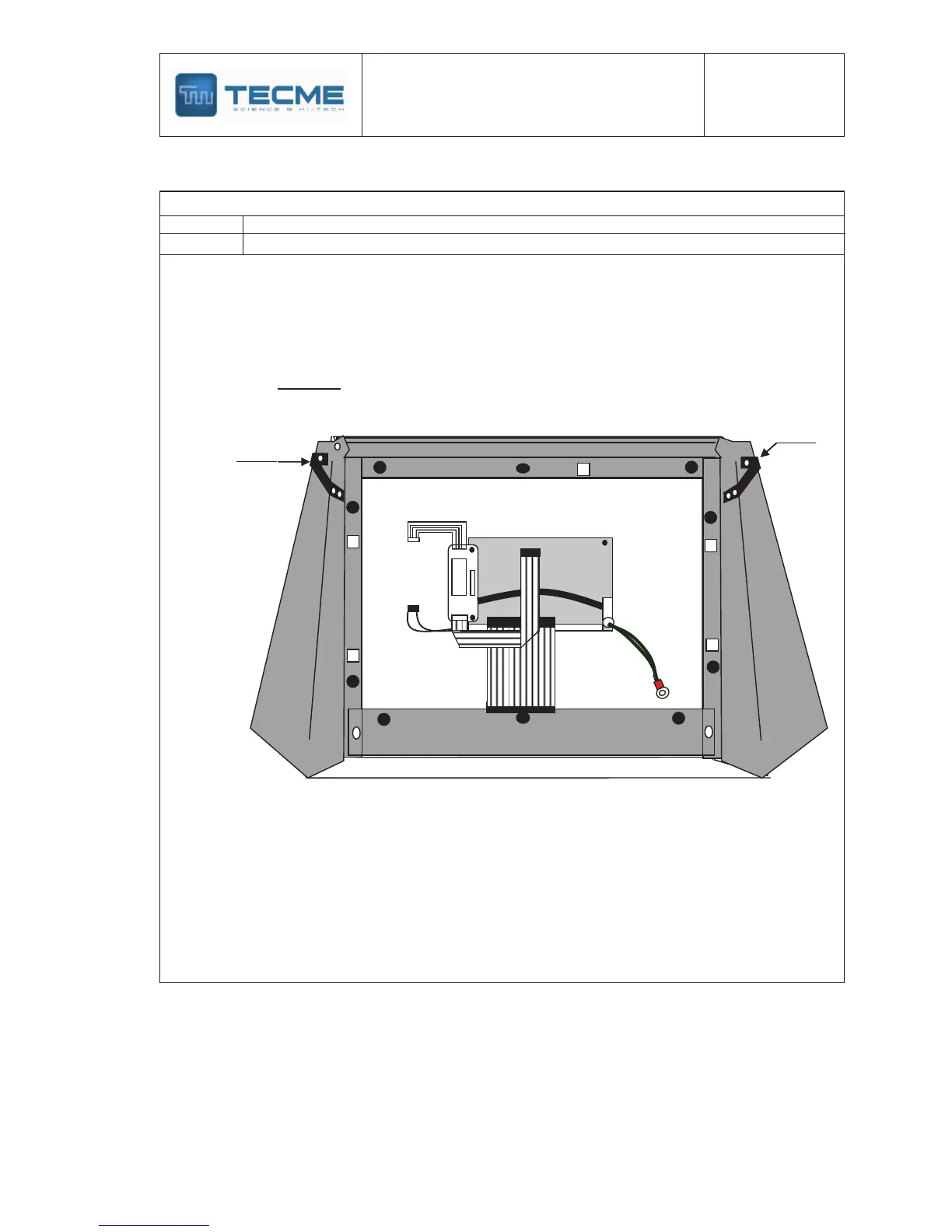

Flange
Flange
Fig.:10-A
